Luminous ST5525 19mm Pole Steel Shelf Instruction Manual

Introduction

Thank you for purchasing the Luminous ST5525 Steel Shelf. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your new shelf. Please read these instructions thoroughly before use and retain them for future reference.

Safety Information

WARNING: Do not exceed the load capacity of 330.7 lbs (150 kg). Ensure proper floor mounting to prevent tipping. Overloading or improper installation can lead to injury or damage to the product and property.

• Always distribute weight evenly across the shelf.
• Avoid placing heavy items on upper shelves without securing the unit to a wall, especially in areas prone to earthquakes or if the unit is tall.
• Keep children away from the unit during assembly and ensure all small parts are out of reach.

Package Contents

Verify that all components are present before beginning assembly:

• Steel Shelf (Quantity: 1)
• Sleeves (Mounting parts)
• Note: Poles are sold separately and are required for a complete unit. This package contains one shelf and its sleeves.

Specifications

Note: The outer and inner dimensions differ because the shelf has holes in the four corners for poles to pass through.

Figure 1: Shelf Dimensions. Outer dimensions are 54.5 cm (width) x 24.5 cm (depth). Inner dimensions are 48 cm (width) x 18 cm (depth).

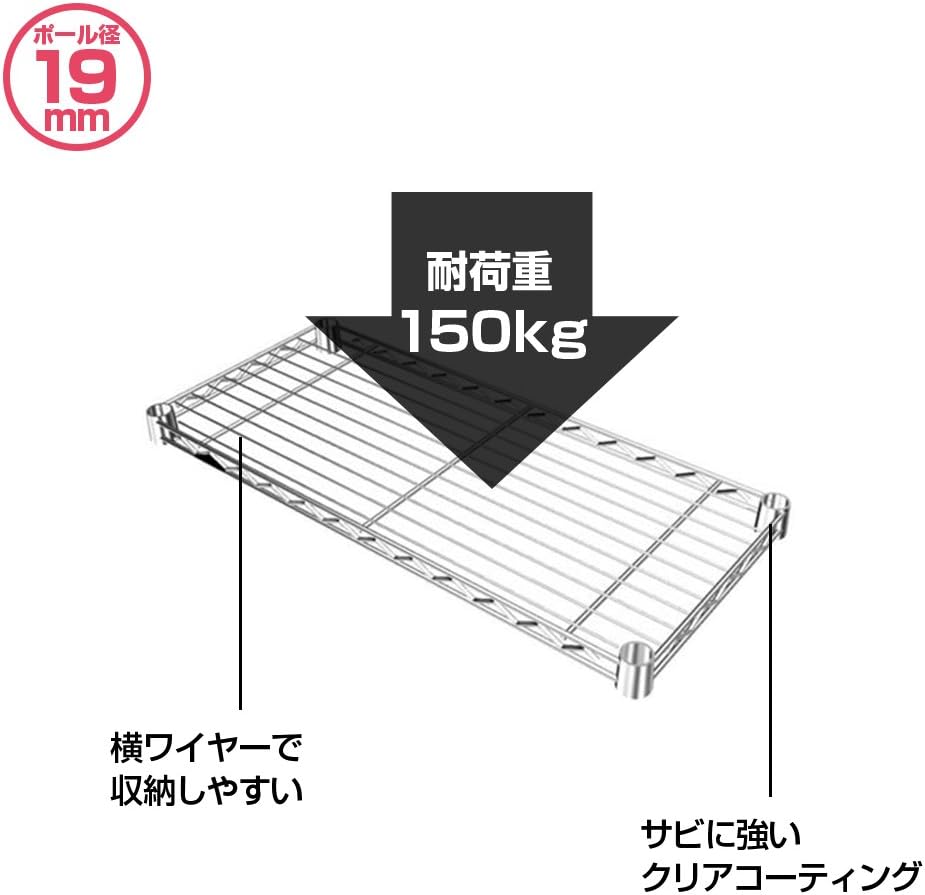

Figure 2: Key Features. Illustrates the 19mm pole diameter compatibility and the 150kg load capacity. The shelf is made of steel with a clear coating for rust resistance.

Setup and Assembly

The Luminous ST5525 shelf is designed for simple assembly without the need for specialized tools. This shelf is intended for use with 19mm diameter poles (sold separately).

1. Prepare Components: Unpack all components and verify against the package contents list. Ensure you have the necessary poles for your shelf unit.
2. Attach Sleeves: Locate the desired height for your shelf on the pole. Snap the two halves of a sleeve together around the pole at this position. Ensure the arrow on the sleeve points upwards. Repeat for all four poles at the same height.
3. Position Shelf: Carefully slide the shelf down over the poles, aligning the corner holes with the sleeves. The shelf should rest securely on the sleeves.
4. Secure Shelf: Gently tap the shelf down onto the sleeves using a rubber mallet or your hands until it is firmly seated. Ensure all four corners are level and secure.
5. Final Check: Once assembled, gently shake the unit to ensure stability. If unstable, recheck sleeve placement and shelf seating.

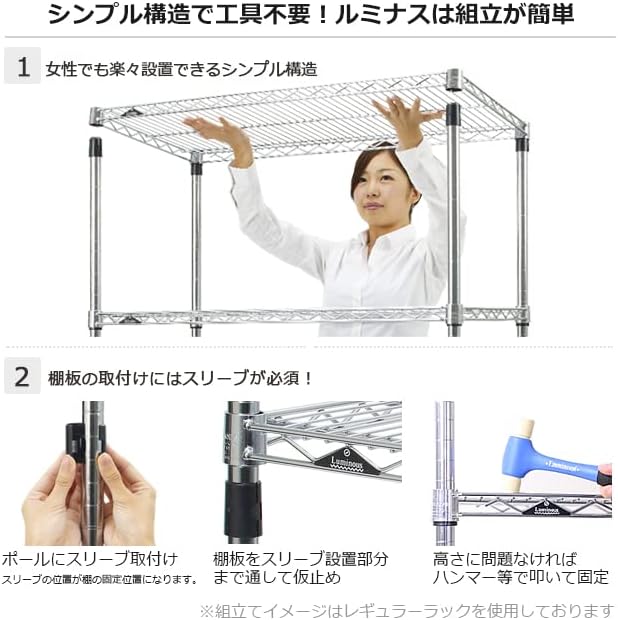

Figure 3: Assembly Steps. This image illustrates the process of attaching sleeves to the poles and then lowering the shelf onto the sleeves for a secure fit. A rubber mallet can be used for final seating.

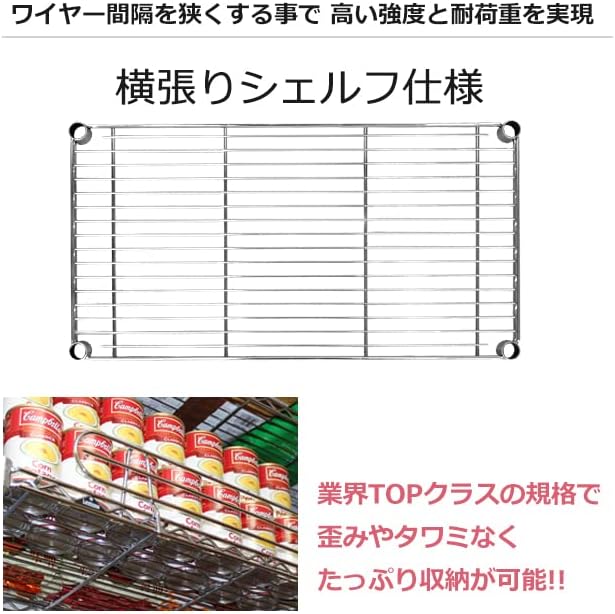

Figure 4: Shelf Design. The narrow wire spacing provides high strength and load capacity, making it suitable for storing a variety of items without sagging.

Operating Instructions

Once assembled, your Luminous steel shelf is ready for use. Follow these guidelines for optimal performance:

• Load Distribution: Distribute items evenly across the shelf surface to prevent stress on specific points and maintain stability.
• Weight Capacity: Do not exceed the maximum load capacity of 330.7 lbs (150 kg) per shelf. Overloading can cause the shelf to deform or collapse.
• Placement: Place heavier items on lower shelves to improve overall stability of the unit.
• Stability Check: Periodically check the stability of the shelf unit, especially after moving it or rearranging items.

Maintenance

Proper care will extend the life and appearance of your Luminous steel shelf:

• Cleaning: Wipe with a dry cloth to remove dust and dirt. For stubborn marks, use a slightly damp cloth and immediately dry the surface to prevent water spots or rust.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the chrome plating and clear coating.
• Rust Prevention: While the shelf has a clear coating for rust resistance, avoid prolonged exposure to moisture or high humidity environments to maintain its finish.
• Regular Inspection: Periodically inspect the shelf and sleeves for any signs of wear, damage, or looseness. Tighten any loose connections if necessary.

Troubleshooting

If you encounter issues with your Luminous steel shelf, refer to the following common solutions:

• Shelf is Unstable/Wobbly:
  • Ensure all sleeves are correctly positioned at the same height on each pole.
  • Verify that the shelf is fully seated onto all four sleeves. Gently tap down with a rubber mallet if needed.
  • Check that the floor surface is level. Adjust the leveling feet on the poles (if applicable) or place shims under the base.
• Shelf is Not Level:
  • Re-check sleeve placement. Even a slight difference in sleeve height can cause the shelf to be uneven.
  • Ensure the shelf is not bent or damaged.
• Difficulty Attaching Sleeves:
  • Ensure the two halves of the sleeve snap together completely around the pole.
  • The sleeves are designed for a snug fit on 19mm poles. Do not force them if they do not fit; ensure you have the correct pole diameter.

Warranty Information

Luminous products are manufactured to high-quality standards. Specific warranty details may vary by region and retailer. Please retain your proof of purchase for any warranty claims. For detailed warranty information, refer to the documentation provided at the time of purchase or contact Luminous customer support.

Customer Support

If you have any questions, require assistance with assembly, or need to report a missing or damaged part, please contact Luminous customer support. Contact information can typically be found on the product packaging or the official Luminous website.

For further assistance, please visit the official Luminous website or contact your local distributor.
