Introduction
This manual provides essential information for the proper installation, use, and maintenance of your Tefal X2010001 Sesame pressure cooker seal. Adhering to these instructions will help ensure the longevity and optimal performance of your pressure cooker.
Product Overview

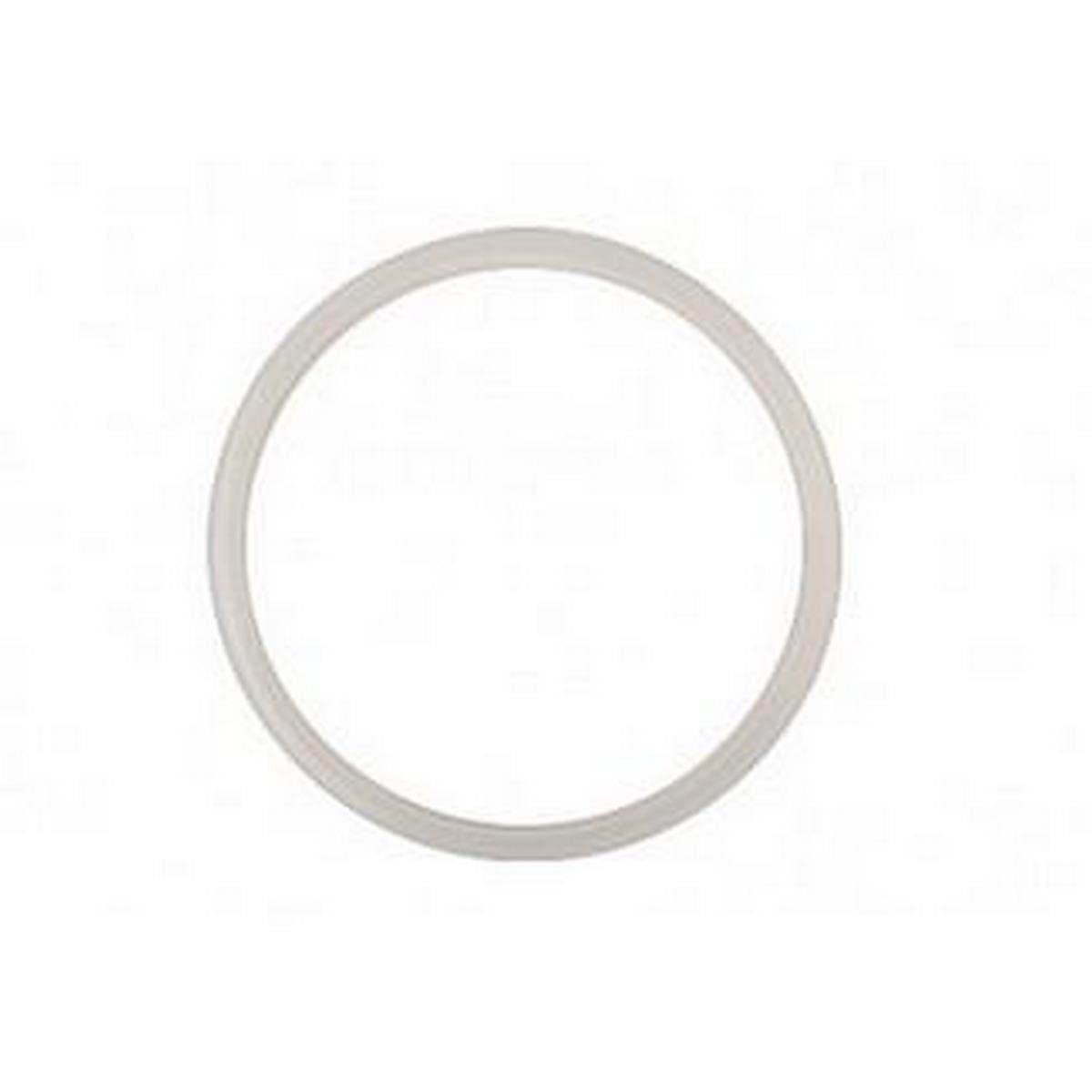

The Tefal X2010001 is a genuine replacement rubber seal designed specifically for Tefal and SEB Sesame pressure cookers. This component is crucial for maintaining the airtight seal required for safe and efficient pressure cooking.
Key features of the seal include its durable rubber (Caoutchouc) material and its specific design to fit various Sesame models, ensuring a perfect fit and reliable performance.
Compatibility
This seal is compatible with the following Tefal and SEB Sesame pressure cooker models. Please verify your pressure cooker's model number to ensure correct compatibility:
- p6002800/07
- p6002800/07 A
- p6002801/07 A
- p6012700/07
- p6012700/07 A
- p6012701/07 A
- p602290
- p6022900/07 A
- p60229000
- p6052702/07 A
The equivalent reference for this part is ss-980636.
Setup and Installation
- Preparation: Ensure your pressure cooker is completely cool and depressurized. Remove the lid from the pot.
- Remove Old Seal: Carefully pull out the old rubber seal from the groove around the inner rim of the pressure cooker lid. Inspect the groove for any food debris or residue and clean it thoroughly.
- Inspect New Seal: Before installation, examine the new Tefal X2010001 seal for any defects, tears, or damage.
- Install New Seal: Place the new seal into the designated groove on the underside of the pressure cooker lid. Ensure it is seated evenly and securely all the way around, with no twists or kinks. The seal should lie flat and flush within the groove.
- Check Fit: Once installed, gently run your finger along the seal to confirm it is properly positioned and forms a continuous, smooth circle.
Safety Note: Always ensure the seal is correctly installed before operating your pressure cooker. An improperly installed or damaged seal can lead to steam leakage and unsafe operating conditions.
Operating (Usage)
The seal's primary function is to create an airtight and watertight closure between the pressure cooker pot and its lid. When the lid is closed and locked, the seal compresses, preventing steam from escaping and allowing pressure to build inside the cooker.
- Proper Closure: Always ensure the lid is correctly aligned and locked according to your pressure cooker's specific instructions. The seal should be fully engaged.
- Initial Use: For the first use after replacing the seal, perform a test run with water to ensure proper sealing and pressure build-up.
- Steam Release: During operation, a small amount of steam may escape from the pressure regulator valve, which is normal. However, steam escaping from around the lid's rim indicates an issue with the seal or its installation.
Maintenance
Regular maintenance of your pressure cooker seal is vital for safety and performance.
- Cleaning: After each use, remove the seal from the lid and wash it thoroughly with warm, soapy water. Rinse well and allow it to air dry completely before re-installing or storing.
- Dishwasher Safety: This seal is not dishwasher safe. Always wash by hand to prevent damage and degradation of the material.
- Inspection: Regularly inspect the seal for any signs of wear, cracking, hardening, discoloration, or stickiness. These are indicators that the seal may need replacement.
- Storage: Store the seal flat and untwisted, preferably inside the pressure cooker lid or in a cool, dry place away from direct sunlight and heat sources.
- Replacement Frequency: Pressure cooker seals typically need to be replaced every 1 to 2 years, or sooner if signs of wear are observed, to ensure optimal safety and performance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Steam leaking from lid rim | Seal improperly installed or twisted. Seal is worn, cracked, or hardened. Food debris on seal or rim. | Remove and re-install seal correctly. Replace the seal if damaged or old. Clean seal and lid rim thoroughly. |
| Lid difficult to close or open | Seal is new and stiff. Seal is dry or sticky. | Apply a thin layer of cooking oil to the seal. Ensure seal is clean and properly seated. |
| Pressure not building | Seal not creating an airtight fit. | Check seal installation. Inspect seal for damage and replace if necessary. Ensure lid is locked correctly. |
Specifications
- Brand: Tefal
- Model Number: X2010001
- Material: Caoutchouc (Rubber)
- Color: All grey
- Item Weight: Approximately 100 g
- Dishwasher Safe: No
Warranty and Support
For specific warranty information regarding your Tefal X2010001 Sesame pressure cooker seal, please refer to the documentation provided with your original pressure cooker or contact Tefal customer support directly. As a replacement part, its warranty may be subject to the terms of the original product or the retailer from whom it was purchased.
If you require further assistance or have questions not covered in this manual, please contact Tefal customer service or your authorized retailer.
