Arnold 7-inch Universal Replacement Steel Wheel Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Arnold 7-inch Universal Replacement Steel Wheel. Designed for durability and versatile compatibility, this wheel is a suitable replacement for various outdoor power equipment. Please read this manual thoroughly before use to ensure safe and effective performance.

2. Product Overview

The Arnold 7-inch Universal Replacement Steel Wheel is engineered to provide reliable performance for a range of applications. Its robust steel construction ensures longevity, while the diamond tread offers enhanced traction.

Key Features:

• Durable Steel Construction: Built for extended life and long-lasting use.
• Universal Compatibility: Suitable for walk-behind mowers, dollies, carts, pressure washers, generators, spreaders, compressors, and other equipment.
• Superior Traction: Diamond treads provide excellent grip on turf and grass.
• High Load Capacity: Rated for a 55 lb. load per wheel.
• Shielded Ball Bearings: Features a 1/2-inch diameter offset hub with shielded ball bearings for smooth operation.

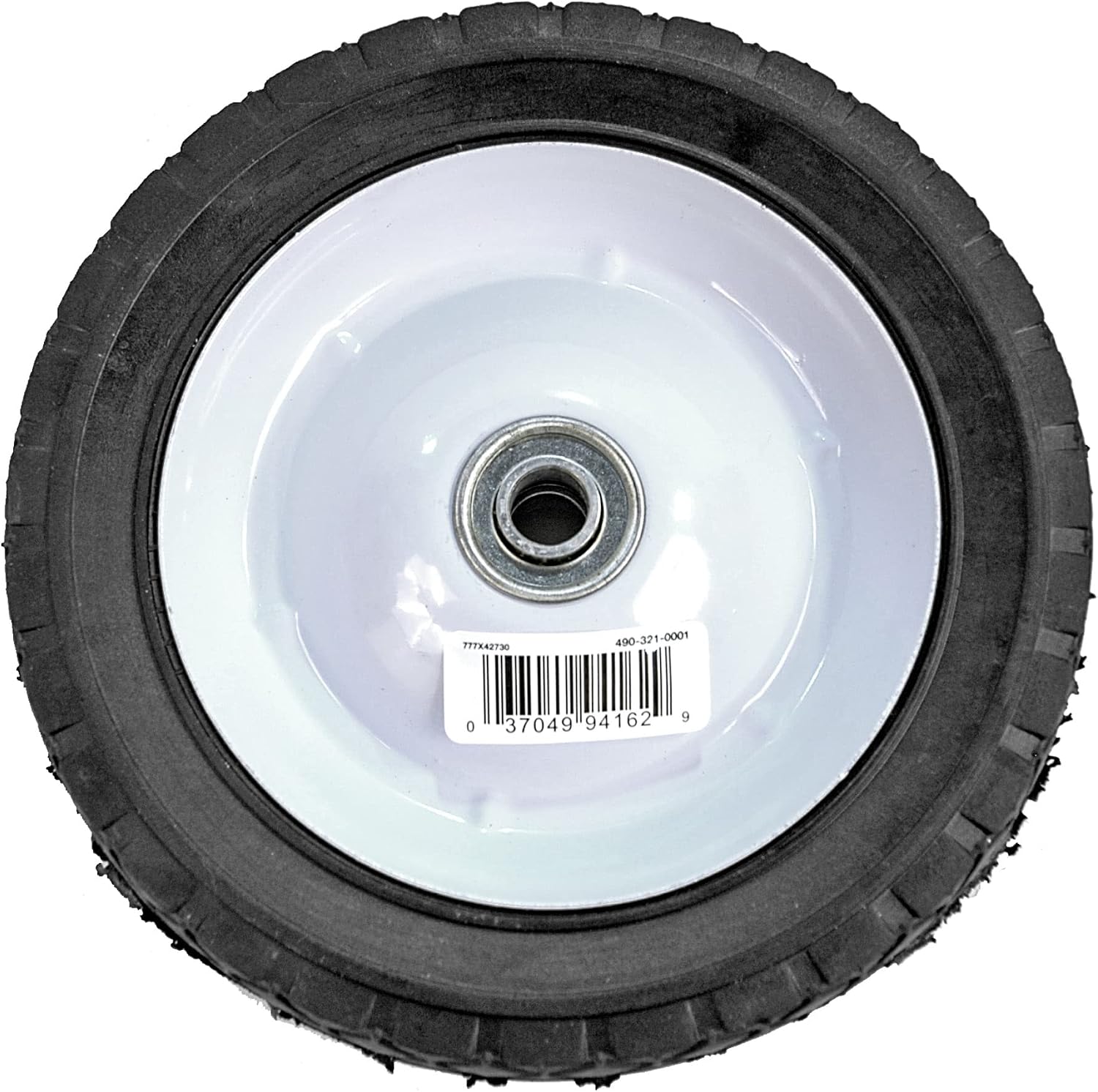

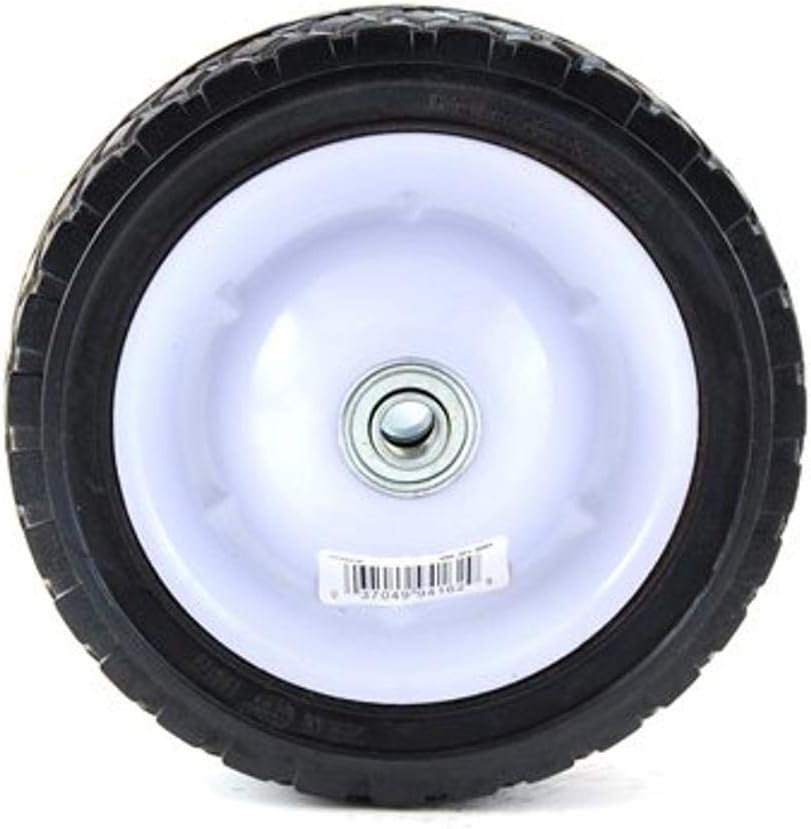

Figure 2.1: Front view of the Arnold 7-inch Universal Replacement Steel Wheel.

Figure 2.2: Packaging for the Arnold 7-inch Universal Replacement Steel Wheel, highlighting its universal application for walk-behind mowers.

Figure 2.3: Detailed view of the diamond tread pattern, designed for excellent traction on various surfaces.

Figure 2.4: Close-up of the durable alloy steel rim, indicating the wheel's robust construction.

Figure 2.5: Illustration of the hub type, detailing the 1/2-inch diameter offset hub and 1-3/8-inch hub length with shielded ball bearings.

3. Setup and Installation

The Arnold 7-inch Universal Replacement Steel Wheel is designed for straightforward installation. Always refer to your original equipment owner's manual to verify compatibility and specific installation procedures for your equipment.

General Installation Steps:

1. Safety First: Ensure the equipment is turned off, spark plug wire is disconnected (for gas engines), and secured to prevent accidental movement.
2. Remove Old Wheel: Carefully remove the retaining clip or nut securing the old wheel to the axle. Slide the old wheel off the axle.
3. Inspect Axle: Clean the axle and inspect for any damage or wear.
4. Install New Wheel: Slide the new Arnold replacement wheel onto the axle. The wheel features a 1/2-inch diameter offset hub with shielded ball bearings.
5. Secure Wheel: Reinstall the retaining clip, washer, or nut to secure the wheel. Ensure it is firmly in place but allows the wheel to spin freely.
6. Check Fitment: Verify that the wheel fits snugly. In some universal applications, minor adjustments like adding washers as shims may be necessary to eliminate excessive play on the axle.

4. Operating Instructions

Once installed, the Arnold 7-inch Universal Replacement Steel Wheel is ready for immediate use. Its design ensures smooth movement and reliable traction across various terrains.

Intended Use:

• Lawn Mowers: Provides stable and efficient movement for walk-behind lawn mowers, reducing turf damage.
• Utility Carts & Dollies: Enhances mobility for hand trucks, garden carts, and dollies, supporting loads up to 55 lbs per wheel.
• Other Equipment: Suitable for various wheeled equipment such as pressure washers, generators, and spreaders where a 7-inch wheel with a 1/2-inch axle is compatible.

The diamond tread pattern is specifically designed to offer excellent grip on grass and uneven ground, ensuring consistent performance during operation.

5. Maintenance

Regular maintenance will prolong the life and performance of your Arnold replacement wheel.

Maintenance Tips:

• Regular Cleaning: Keep the wheel and axle area free from grass clippings, dirt, and debris.
• Inspect for Wear: Periodically check the wheel for signs of wear, cracks, or damage to the tread and rim.
• Axle and Bearings: Ensure the axle is clean and the shielded ball bearings are operating smoothly. Lubrication is generally not required for shielded bearings, but ensure no foreign objects impede their function.
• Tightness Check: Verify that the retaining clip or nut securing the wheel to the axle remains tight.

6. Troubleshooting

If you encounter issues with your replacement wheel, consider the following:

Common Issues and Solutions:

• Wheel Wobbles: If the wheel wobbles after installation, ensure the retaining hardware is securely tightened. For universal applications, the axle length may vary. Consider adding appropriate washers as shims between the wheel and the retaining clip/nut to reduce excessive play.
• Difficulty Rolling: Check for debris wrapped around the axle or lodged in the bearings. Ensure the wheel is not overtightened, which could restrict bearing movement.
• Incorrect Fit: While designed for universal compatibility, always verify the wheel's dimensions (7" diameter, 1.5" width, 1/2" axle, 1-3/8" hub length) against your equipment's requirements before purchase and installation.

7. Specifications

8. Warranty and Support

For specific warranty information and customer support, please refer to the official Arnold Corporation website or contact their customer service directly. Always retain your proof of purchase for warranty claims.
