Black+Decker BDV212F Mobile Cooler and Warmer Box User Manual

1. Introduction

The Black+Decker BDV212F Mobile Cooler and Warmer Box is designed to keep your food and beverages cool or warm while on the go. This versatile 9-liter unit operates on a 12V DC power supply, making it ideal for use in vehicles, boats, or during outdoor activities. Please read this manual carefully before operating the device to ensure safe and efficient use.

2. Safety Information

Always observe the following safety precautions to reduce the risk of injury or damage to the product:

• Read all instructions before using the appliance.
• This appliance is designed for 12V DC vehicle power outlets only. Do not attempt to connect it to any other power source.
• Ensure the appliance is placed on a stable, level surface and that ventilation openings are not blocked. Adequate airflow is crucial for proper operation.
• Do not immerse the appliance in water or other liquids. Avoid exposure to rain or excessive moisture.
• Do not operate the appliance if the power cord or plug is damaged. Contact customer service for repairs.
• Keep the appliance out of reach of children.
• Always disconnect the power plug from the vehicle's outlet when the appliance is not in use or before cleaning.
• Do not use the appliance to store flammable or explosive materials.
• Avoid placing hot items directly into the cooling compartment or cold items into the warming compartment without allowing the unit to adjust.

3. Product Features

• Cooling Function: Cools contents up to 27°C below the ambient temperature.
• Warming Function: Heats contents up to 48°C, depending on ambient temperature.
• Capacity: 9-liter internal volume.
• Power Source: Operates on 12V DC, suitable for car cigarette lighter sockets.
• Integrated Cup Holders: Two cup holders on top for convenience.
• Side Storage Pocket: Zippered side pocket for accessories.
• Versatile Design: Can also serve as a seat or center armrest.
• Ice Cube Tray: Includes an isolation plate that can facilitate ice cube making (down to -3°C).
• Battery Protection: Features a system to prevent draining your vehicle's battery by testing its voltage before operation.

4. Setup

1. Unpack: Carefully remove the cooler/warmer box from its packaging. Retain packaging for future storage or transport.
2. Inspect: Check the unit for any signs of damage. Ensure all components, including the power cord and ice cube tray, are present.
3. Clean: Before first use, wipe the interior and exterior surfaces with a damp cloth and mild detergent. Rinse thoroughly and dry completely.
4. Placement: Position the unit in your vehicle or desired location, ensuring that the ventilation grilles are unobstructed. This allows for proper heat dissipation and efficient operation.
5. Connect Power: Insert the 12V DC power plug into your vehicle's cigarette lighter socket. Ensure a secure connection. The unit will perform a battery test to ensure sufficient power before operating.

Image: Connecting the 12V DC power plug to the unit.

5. Operating Instructions

5.1. Cooling Mode

1. Ensure the unit is properly connected to a 12V DC power source.
2. For optimal cooling, pre-chill items before placing them inside the cooler.
3. Place food and beverages inside the main compartment. Close the lid securely.
4. The unit will automatically begin to cool, maintaining a temperature up to 27°C below the ambient temperature.
5. The integrated isolation plate can be used to create ice cubes if the ambient temperature allows for cooling down to -3°C.

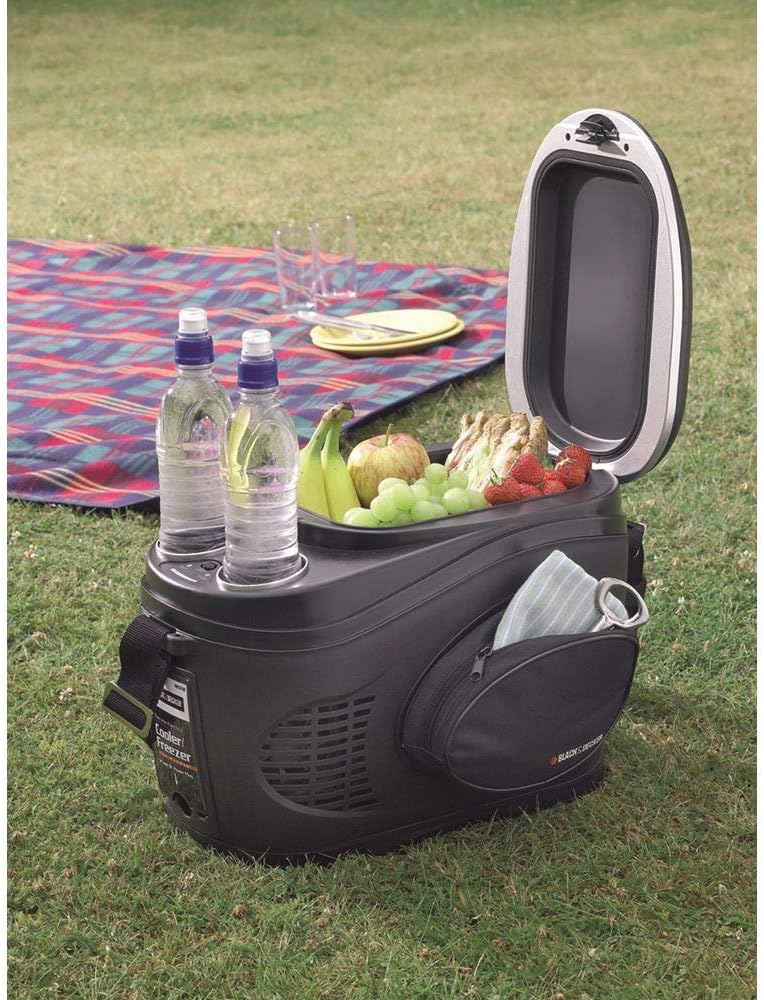

Image: The cooler in use during an outdoor picnic.

Image: The cooler positioned in a car, holding baby bottles.

Image: Demonstrating the ice cube making capability.

5.2. Warming Mode

1. Ensure the unit is properly connected to a 12V DC power source.
2. For optimal warming, pre-heat items before placing them inside the warmer.
3. Place food and beverages inside the main compartment. Close the lid securely.
4. The unit will automatically begin to warm, maintaining a temperature up to 48°C.

5.3. General Operation Tips

• The unit's performance is affected by ambient temperature. In very hot environments, cooling efficiency may be reduced.
• Avoid opening the lid frequently to maintain internal temperature.
• Always ensure the vehicle engine is running when using the cooler/warmer for extended periods to prevent battery drain. The unit includes a battery protection feature that will prevent operation if the vehicle battery voltage is too low.

6. Maintenance

6.1. Cleaning

• Before cleaning, always disconnect the power plug from the vehicle's outlet.
• Wipe the interior and exterior surfaces with a soft, damp cloth and a mild, non-abrasive detergent.
• Do not use harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the surfaces.
• Ensure the unit is completely dry before reconnecting power or storing.
• Regularly check and clean the ventilation grilles to prevent dust buildup, which can impair performance.

6.2. Storage

• When not in use, store the unit in a clean, dry place, away from direct sunlight and extreme temperatures.
• Ensure the lid is slightly ajar during storage to prevent odors and mildew buildup.

7. Troubleshooting

• Unit not powering on:
  • Check if the 12V DC power plug is securely inserted into the vehicle's outlet.
  • Verify that the vehicle's cigarette lighter socket is functional (test with another device).
  • Ensure the vehicle's battery has sufficient charge. The unit's battery protection feature may prevent operation if the voltage is too low.
• Not cooling/heating effectively:
  • Check that the ventilation grilles are not blocked.
  • Ensure the lid is closed tightly.
  • Pre-chill or pre-heat items before placing them in the unit for better performance.
  • High ambient temperatures will reduce cooling efficiency.
• Unusual noise:
  • A low humming sound from the fan is normal during operation.
  • If the noise is excessive or unusual, ensure the unit is on a stable surface and not vibrating against other objects.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase. If you require technical assistance or have questions not covered in this manual, please contact Black+Decker customer support through their official website or the contact details provided in your product packaging.
