1. Introduction
This manual provides essential information for the proper handling, installation, and maintenance of your Monroe BX541 Bonded Brake Shoes. These brake shoes are designed to meet or exceed original equipment (OE) specifications, ensuring reliable braking performance. For optimal safety and performance, it is crucial to follow all instructions and safety guidelines.
2. Product Features
The Monroe BX541 Bonded Brake Shoes incorporate several design elements for enhanced performance and durability:
- Premium Blended Semi-Metallic Friction Formula: Engineered for consistent stopping power and reduced noise.
- 100 Percent New Carbon Steel Backing Plates: Provides structural integrity and resistance to corrosion.
- Complete with Pins and Levers as Needed: Ensures a comprehensive replacement solution.
- Bonded or Riveted Construction: Designed to match specific vehicle stopping requirements.

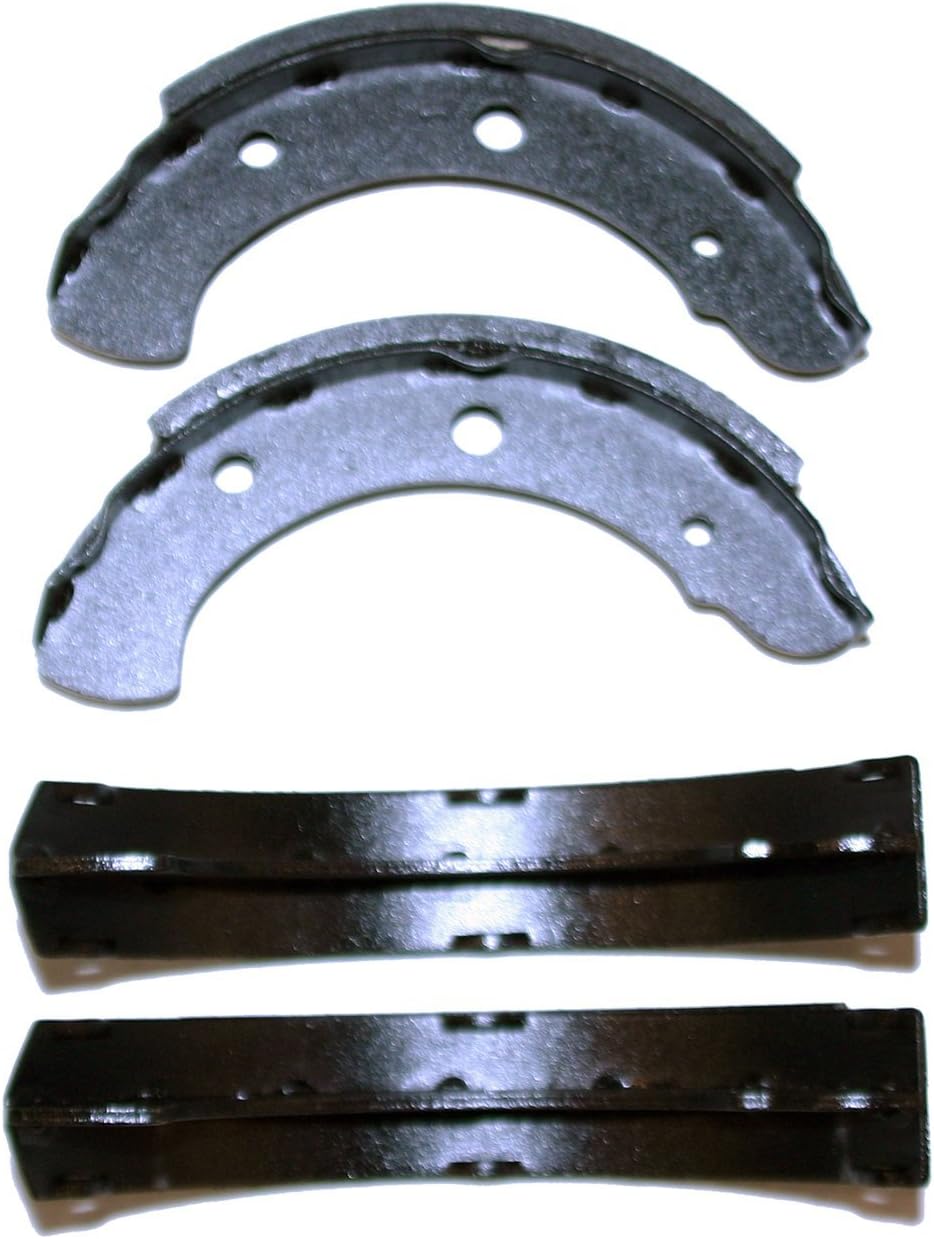

Figure 1: Image showing two Monroe BX541 bonded brake shoes, featuring their curved friction material and mounting holes, along with two new carbon steel backing plates.
3. Setup and Installation
Installation of brake components requires specialized knowledge and tools. Improper installation can lead to brake failure, serious injury, or death. It is strongly recommended that installation be performed by a qualified automotive technician.
General Installation Guidelines (for qualified technicians):
- Safety First: Always use appropriate personal protective equipment (PPE) and ensure the vehicle is securely supported on jack stands.
- Inspect Components: Before installation, thoroughly inspect all new brake shoes and associated hardware for any damage or defects.
- Remove Old Components: Carefully remove the old brake shoes and hardware, noting the original configuration.
- Clean and Lubricate: Clean the backing plate and all contact points. Apply a thin layer of high-temperature brake lubricant to specified contact areas to prevent noise and ensure smooth operation.
- Install New Hardware: Replace all brake hardware (springs, clips, adjusters) with new components as recommended by the vehicle manufacturer.
- Install New Brake Shoes: Mount the new Monroe BX541 brake shoes according to the vehicle manufacturer's specifications, ensuring proper alignment and engagement with the wheel cylinder and parking brake mechanism.
- Adjust Brakes: Adjust the brake shoes to the drum as per the vehicle manufacturer's instructions.
- Bleed Brake System (if necessary): If the hydraulic system was opened, bleed the brakes to remove air.
- Test Drive: Perform a cautious test drive in a safe area to ensure proper brake function and bedding-in of the new shoes.
4. Operating Principles
Drum brakes, which utilize brake shoes, operate by pressing the friction material of the shoes against the inner surface of a rotating brake drum. When the brake pedal is pressed, hydraulic pressure from the master cylinder forces the wheel cylinders to push the brake shoes outwards. This contact creates friction, slowing down and stopping the vehicle. The Monroe BX541 brake shoes are engineered to provide consistent friction and heat dissipation for effective braking.
5. Maintenance
Regular inspection and maintenance are crucial for the longevity and safe operation of your vehicle's braking system. It is recommended to have your brake system inspected by a qualified technician at least once a year or every 12,000 miles, whichever comes first.
Key Maintenance Points:
- Brake Shoe Wear: Monitor the thickness of the friction material. Replace brake shoes when they reach their minimum recommended thickness.
- Brake Drum Condition: Inspect brake drums for scoring, cracks, or excessive wear. Drums may need to be machined or replaced.
- Brake Hardware: Check springs, adjusters, and clips for corrosion, damage, or fatigue. Replace as necessary.
- Wheel Cylinders: Inspect for leaks or signs of corrosion. Replace faulty wheel cylinders immediately.
- Brake Fluid: Check brake fluid level and condition. Replace brake fluid according to vehicle manufacturer recommendations.
6. Troubleshooting Common Brake Issues
If you experience any of the following symptoms, have your braking system inspected by a qualified technician immediately:
- Squealing or Grinding Noises: Often indicates worn brake shoes, contaminated friction material, or issues with brake hardware.
- Vibration or Pulsation: Can be caused by out-of-round brake drums or uneven friction material wear.
- Soft or Spongy Brake Pedal: May indicate air in the hydraulic system, a faulty master cylinder, or a brake fluid leak.
- Vehicle Pulling to One Side: Could be due to uneven brake shoe wear, a seized wheel cylinder, or contamination on one side.
- Excessive Pedal Travel: Suggests worn brake shoes, improper adjustment, or a hydraulic system issue.
7. Specifications
| Brand | Monroe |
| Model Number | BX541 |
| Manufacturer | Tenneco |
| Item Weight | 4 pounds |
| Product Dimensions | 9 x 9 x 3 inches |
| Manufacturer Part Number | BX541 |
| ASIN | B000V525UM |
| First Available | October 10, 2007 |
8. Safety Information
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when working on brake systems.
- Brake dust may contain asbestos or other hazardous materials. Avoid inhaling brake dust. Use an approved brake cleaner and proper ventilation.
- Ensure the vehicle is properly supported and stable before beginning any work.
- Never work under a vehicle supported only by a jack. Always use jack stands.
- Brake fluid is corrosive. Avoid contact with skin and painted surfaces.
- Dispose of old brake components and fluids responsibly, following local regulations.
- If you are unsure about any step of the installation or maintenance process, consult a qualified automotive technician.
9. Warranty and Support
For specific warranty information regarding your Monroe BX541 Bonded Brake Shoes, please refer to the documentation provided with your purchase or visit the official Monroe website. For technical support or inquiries, please contact Monroe customer service through their official channels.
Monroe Official Website: www.monroe.com
