Sylvania 34503-120MB Miniature Automotive Light Bulb User Manual

Introduction

This manual provides essential information for the safe and effective use of your Sylvania 34503-120MB Miniature Automotive Light Bulb. Please read these instructions carefully before installation and retain for future reference.

Safety Information

• Always ensure the vehicle's ignition is off and the battery is disconnected before attempting any electrical work.
• Wear appropriate safety gear, such as gloves and eye protection, during installation.
• Handle the bulb by its base to avoid touching the glass, as oils from your skin can reduce bulb life.
• Do not exceed the specified voltage or wattage for this bulb.
• Dispose of old bulbs responsibly according to local regulations.

Installation (Setup)

1. Identify the Bulb Location: Consult your vehicle's owner's manual to locate the specific light assembly requiring replacement.
2. Access the Bulb: Depending on your vehicle, this may involve opening the hood, removing a panel, or accessing from behind the light housing.
3. Remove the Old Bulb: Carefully twist or pull the old bulb from its socket. Note the orientation if applicable.
4. Insert the New Bulb: Align the Sylvania 34503-120MB bulb with the socket. For BA9S bases, ensure the pins align with the grooves, then push and twist gently to secure.
5. Test Functionality: Reconnect the battery (if disconnected) and test the light before reassembling any removed panels or covers.
6. Secure Components: Reinstall any covers or panels removed during the process.

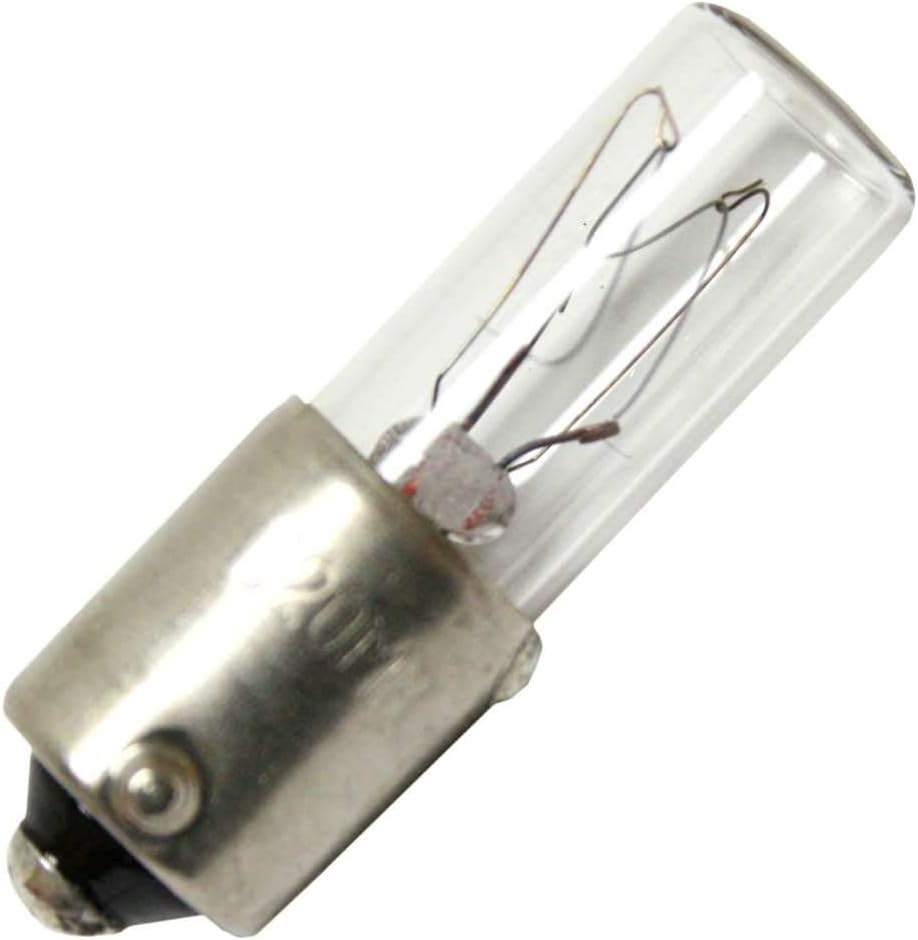

Image: Sylvania 34503-120MB Miniature Automotive Light Bulb. This image shows the clear glass bulb with its metal BA9S base, featuring the filament visible inside.

Operation

The Sylvania 34503-120MB Miniature Automotive Light Bulb operates upon receiving electrical current from your vehicle's electrical system. Its function is to provide illumination for its intended application (e.g., interior lights, dashboard indicators, side markers). Operation is controlled by your vehicle's standard switches and electrical circuits.

Maintenance

• Regular Inspection: Periodically check the functionality of all automotive lights.
• Cleaning: If the bulb's glass becomes dirty, gently wipe it with a clean, lint-free cloth when the bulb is cool and the power is off. Avoid abrasive cleaners.
• Replacement: Replace the bulb when it burns out or if its light output significantly diminishes.

Troubleshooting

If the Sylvania 34503-120MB bulb does not illuminate after installation, consider the following:

• Check Connections: Ensure the bulb is securely seated in its socket and that all electrical connections are firm.
• Inspect Fuse: A blown fuse in your vehicle's fuse box can prevent the light from working. Consult your vehicle's manual for fuse locations and replacement procedures.
• Verify Voltage: Confirm that the correct voltage is reaching the bulb socket. This may require a multimeter and professional assistance if you are unsure.
• Bulb Damage: Although new, inspect the bulb for any visible damage to the filament or glass.
• Vehicle Wiring: If all else fails, there may be an issue with the vehicle's wiring or the light assembly itself, requiring professional diagnosis.

Specifications

Warranty and Support

For warranty information or technical support regarding your Sylvania 34503-120MB Miniature Automotive Light Bulb, please refer to the official SYLVANIA website or contact their customer service directly. Keep your purchase receipt as proof of purchase.

SYLVANIA Customer Support: Visit Sylvania Automotive Contact Page
