Introduction
This manual provides instructions for the setup, operation, and maintenance of your Melnor XT4110 XT Turbo Oscillating Sprinkler. This sprinkler is designed for efficient watering of large lawn areas, featuring adjustable range and width controls, and a convenient built-in timer.
Key features include:
- Easy adjustment of both watering range and width.
- Integrated dial timer for setting watering durations up to 120 minutes.
- Designed for large lawn coverage.
Safety Information
WARNING:
This product can expose you to chemicals including styrene, which is known to the State of California to cause cancer. For more information, please visit www.P65Warnings.ca.gov.
This product is for outdoor use only.
Setup
- Unpack the Sprinkler: Remove the sprinkler from its packaging.
- Connect to Water Source: Attach a standard garden hose to the sprinkler's inlet connection. Ensure the connection is secure to prevent leaks.
- Position the Sprinkler: Place the sprinkler in the desired area of your lawn.
Operating Instructions
Adjusting Watering Range and Width
The Melnor XT4110 features 2-way adjustable controls for precise watering. You can independently adjust the watering range (length) and width of the spray pattern.
- Range Control: Use the sliding levers on the top of the sprinkler to set the desired length of the watering area. Move the levers closer together for a shorter range or further apart for a longer range.
- Width Control: Use the side tabs to adjust the width of the spray. Push the tabs inward for a narrower spray pattern or outward for a wider pattern.
Using the Built-in Timer
The sprinkler includes a mechanical timer that allows you to set watering durations up to 120 minutes.
- Turn on Water: Ensure the water supply to the hose is turned on.

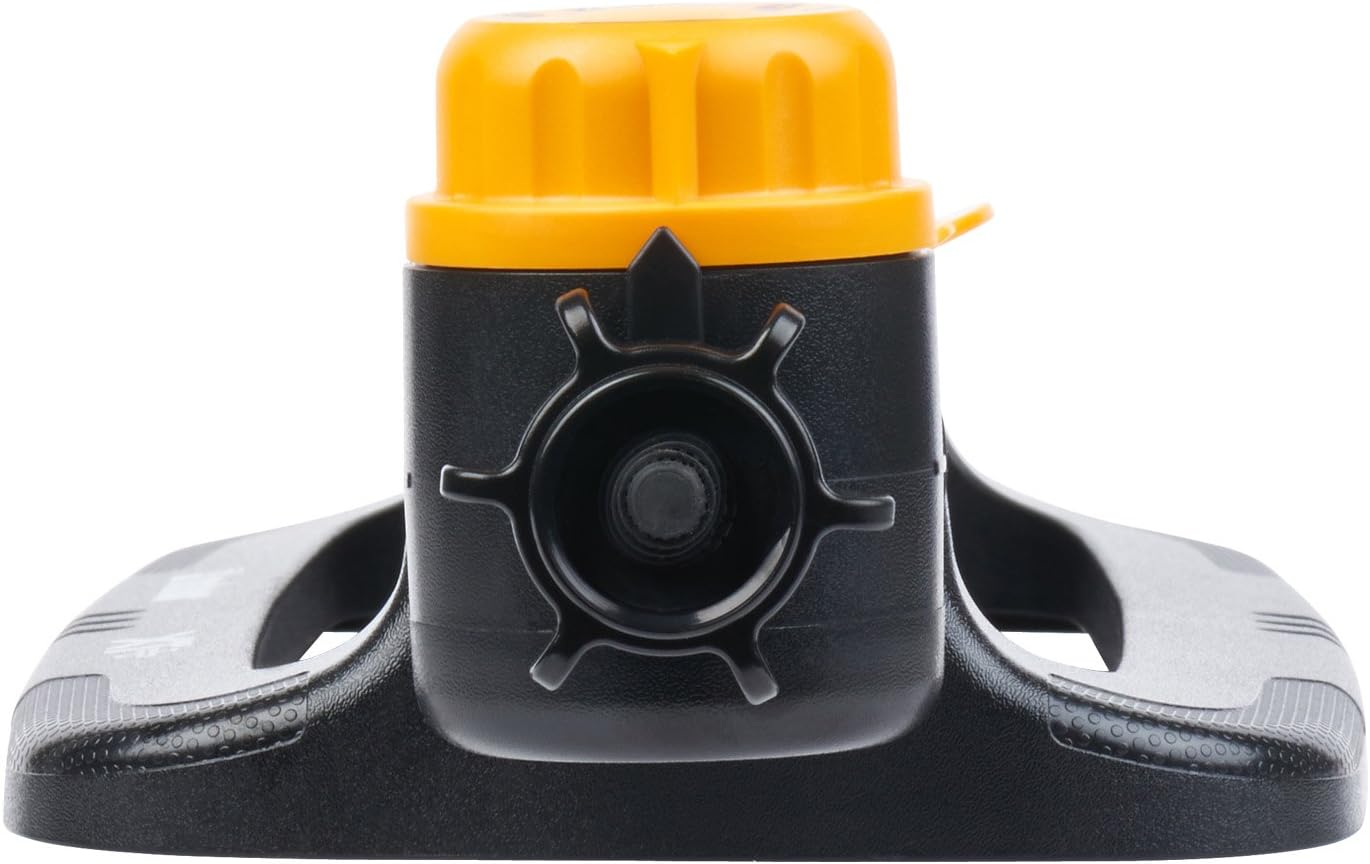

- Set Timer: Rotate the yellow timer dial clockwise to your desired watering duration (up to 120 minutes). The timer will automatically shut off the water when the set time expires.
- Manual Operation: To operate the sprinkler continuously without the timer, set the dial to the "ON" position.
Maintenance
- Cleanable Sieve: Periodically check and clean the sieve located at the hose connection point to prevent debris from clogging the sprinkler nozzles.
- Nozzle Cleaning: If water spray becomes uneven, use the integrated nozzle cleaning tool (typically found at one end of the sprinkler bar) to clear any blockages in the spray nozzles.
- Storage: During colder months or extended periods of non-use, drain all water from the sprinkler and store it in a dry, protected area to prevent damage from freezing or prolonged exposure to elements.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven spray pattern or reduced water flow | Clogged nozzles or sieve. | Clean the sieve at the hose connection. Use the nozzle cleaning tool to clear individual nozzles. |
| Sprinkler does not oscillate | Insufficient water pressure or internal mechanism obstruction. | Ensure adequate water pressure. Check for kinks in the hose. If problem persists, contact customer support. |
| Timer does not shut off water | Timer mechanism malfunction. | Ensure the timer was set correctly. If the issue continues, the timer may require replacement. |
| Water leaks from connections | Loose hose connection or damaged washer. | Tighten hose connection. Replace rubber washer if damaged. |
Specifications
| Brand | Melnor |
| Model Number | XT4110 |
| Material | Acrylonitrile Butadiene Styrene |
| Style | 2-Way Adjustable with Timer |
| Item Dimensions (L x W x H) | 6.65 x 20.07 x 3.85 inches |
| Item Weight | 1.32 Pounds |
| Maximum Flow Rate | 1.5 Gallons Per Minute |
| Smart Home Compatibility | Not Smart Home Compatible |
Warranty and Support
For warranty information or technical support, please refer to the manufacturer's official website or contact their customer service department. Keep your purchase receipt for warranty claims.
Manufacturer: Melnor
