AIR VENT 53320 Gable-Mounted Power Attic Ventilator User Manual

1. Introduction

This manual provides instructions for the installation, operation, and maintenance of your AIR VENT 53320 Gable-Mounted Power Attic Ventilator. This unit is designed to improve attic ventilation, helping to reduce heat buildup and moisture, which can contribute to lower cooling costs and extended roof life. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

2. Important Safety Information

Failure to follow these safety instructions could result in electric shock, fire, or serious injury.

• WARNING: Disconnect power at the circuit breaker before installing or servicing the unit.
• Installation should be performed by a qualified electrician in accordance with all local and national electrical codes.
• Ensure the power supply matches the voltage requirements specified on the ventilator's label.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
• Keep hands, clothing, and other objects away from the fan blades during operation.
• This product is intended for outdoor, attic ventilation use only.
• Inspect the unit for any damage upon receipt. Do not install a damaged unit.
• Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

3. Package Contents

Verify that all components are present before beginning installation.

• AIR VENT 53320 Gable-Mounted Power Attic Ventilator (1 unit)
• Integrated Thermostat and Humidistat controls
• Note: Mounting hardware (e.g., wood screws, vibration dampeners) is not included and must be purchased separately.

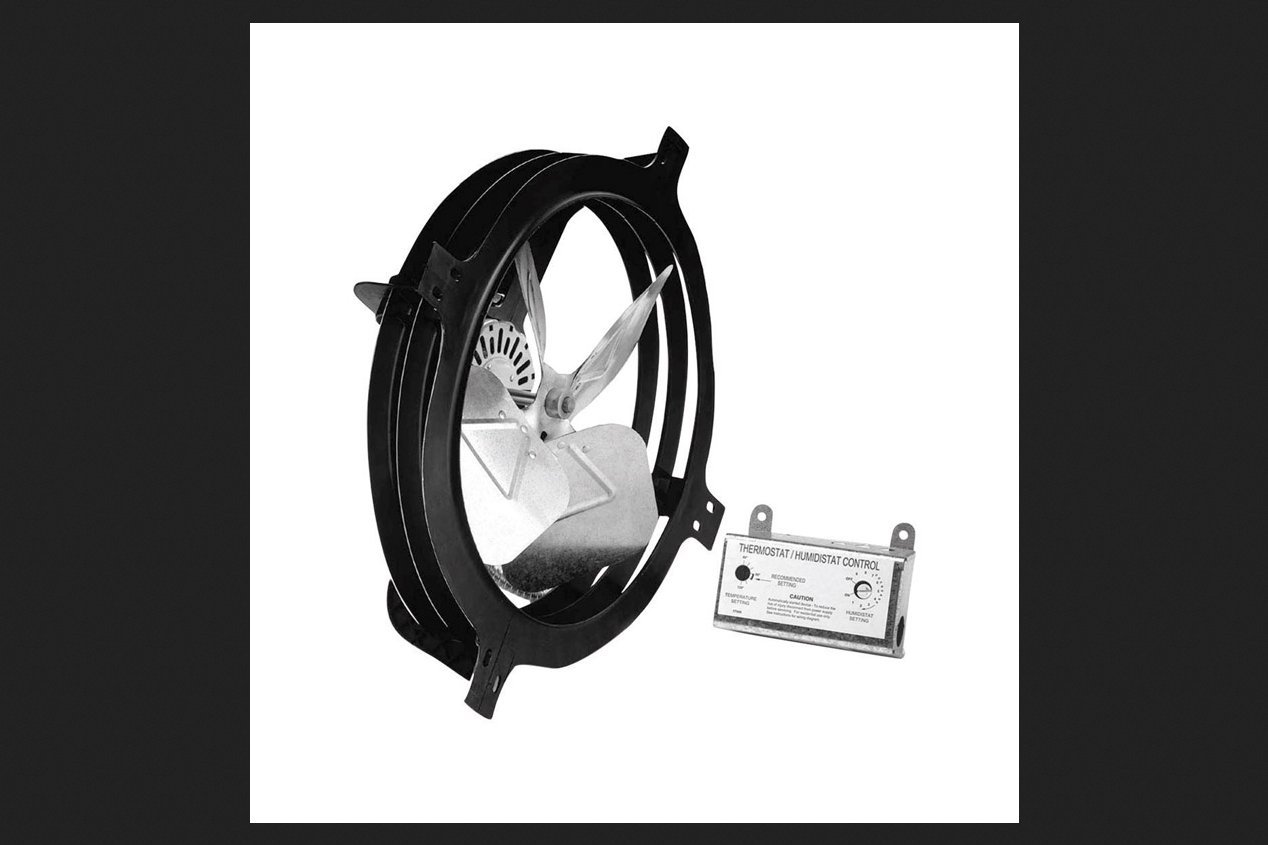

Figure 1: The AIR VENT 53320 Gable-Mounted Power Attic Ventilator. This image shows the front view of the ventilator, highlighting its fan blades and housing, designed for installation within a gable vent opening.

4. Setup and Installation

The AIR VENT 53320 is designed for gable-mounted installation. Proper installation is crucial for optimal performance and safety. It is recommended that installation be performed by a qualified professional.

4.1 Pre-Installation Checklist

• Ensure adequate existing attic ventilation (e.g., soffit vents) to allow for proper airflow.
• Verify the gable opening dimensions are suitable for the ventilator (Product Dimensions: 7.5"D x 18"W x 18"H).
• Gather necessary tools and materials, including wood screws for mounting and rubber cushions/vibration dampeners if desired to reduce noise.
• Confirm power supply availability and proper wiring according to local electrical codes.

4.2 Installation Steps

1. Safety First: Turn off power to the attic area at the main circuit breaker before starting any work.
2. Positioning: Place the ventilator securely within the gable vent opening. Ensure the fan is oriented to exhaust air out of the attic.
3. Mounting: Secure the ventilator to the framing of the gable opening using appropriate wood screws. If using rubber cushions, place them between the ventilator frame and the mounting surface to minimize vibration and noise.
4. Electrical Connection: Connect the ventilator to the electrical supply. This step must be performed by a qualified electrician to ensure compliance with all electrical codes and safe operation.
5. Inspect: After installation, double-check all connections and mounting points for security.
6. Restore Power: Once installation is complete and verified, restore power at the circuit breaker.

5. Operating Instructions

The AIR VENT 53320 operates automatically using its integrated thermostat and humidistat controls.

• Automatic Operation: The ventilator is designed to turn on automatically when the attic temperature or humidity level exceeds a preset threshold. It will turn off when conditions return to acceptable levels.
• Thermostat Control: The thermostat senses the attic temperature. The fan will activate when the temperature rises above the set point, exhausting hot air.
• Humidistat Control: The humidistat senses the attic humidity. The fan will activate when humidity levels are too high, helping to remove moisture and prevent condensation.
• Speed Setting: This model operates at a single speed. There are no adjustable speed settings.
• Monitoring: Periodically check the attic to ensure the fan is operating as expected during hot or humid conditions.

6. Maintenance

Regular maintenance ensures the longevity and efficient operation of your attic ventilator.

• Annual Inspection: At least once a year, or more frequently in dusty environments, inspect the fan blades and motor for dust and debris buildup.
• Cleaning: ALWAYS disconnect power at the circuit breaker before cleaning. Carefully wipe down fan blades and housing with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no moisture enters the motor housing.
• Obstruction Check: Ensure that the fan intake and exhaust areas are free from obstructions such as insulation, bird nests, or other debris.
• Wiring Check: Periodically inspect electrical wiring for any signs of wear, fraying, or damage. If any damage is found, disconnect power and contact a qualified electrician for repair.

7. Troubleshooting

Refer to this section for common issues and their solutions.

8. Specifications

9. Warranty and Support

For warranty information or technical support, please contact Air Vent customer service. Keep your purchase receipt as proof of purchase.

Contact information can typically be found on the manufacturer's official website or on the product packaging.
