BERGEON 30671-7 Watch Hand Remover Tool Instruction Manual

1. Introduction

This manual provides instructions for the proper use and maintenance of the BERGEON 30671-7 Watch Hand Remover Tool. Designed for professional watchmakers, this high-quality Swiss-made instrument facilitates the safe removal of watch hands without causing damage to the dial or movement.

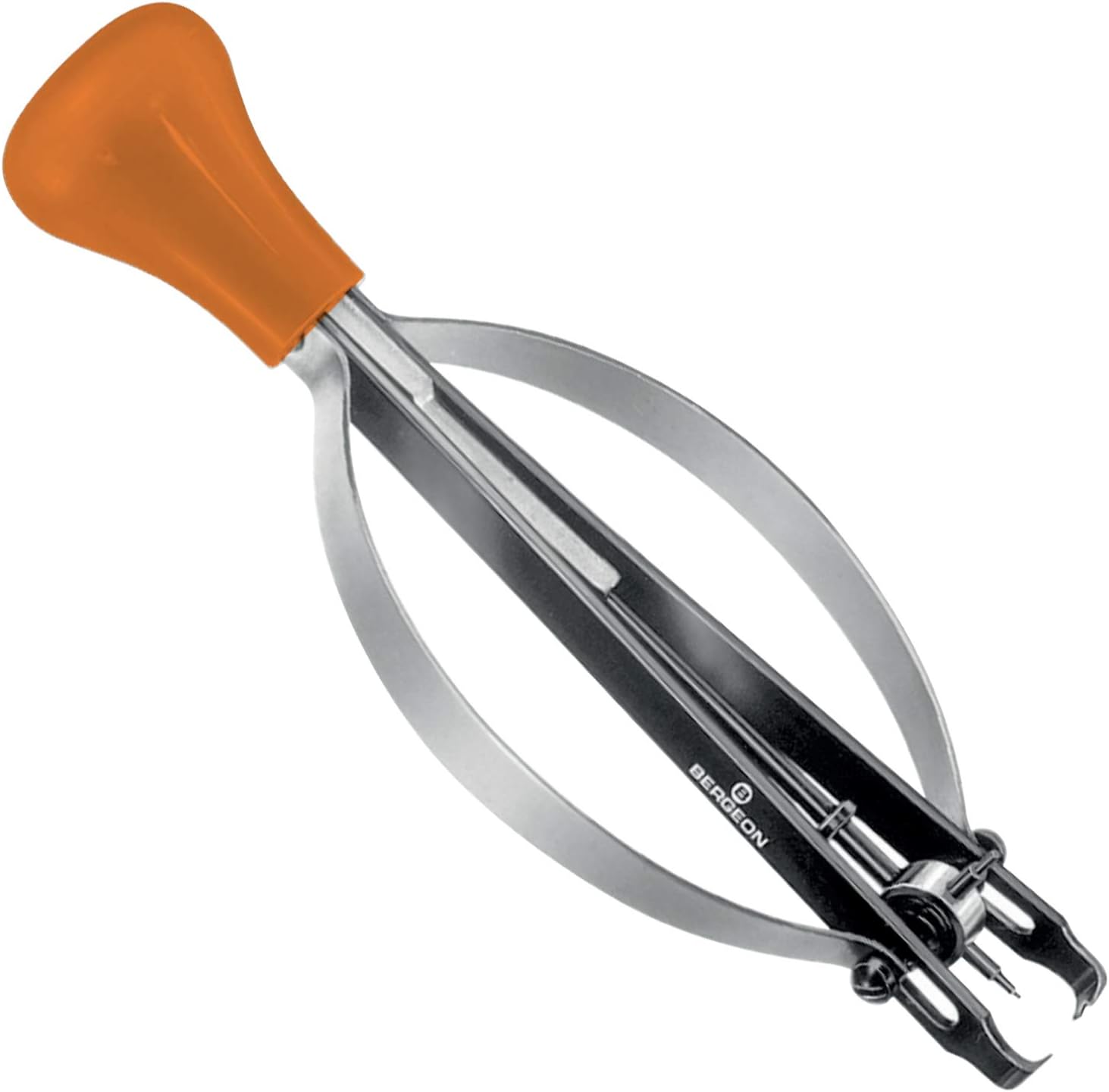

Figure 1: BERGEON 30671-7 Watch Hand Remover Tool. This image shows the complete tool with its orange handle and precision metal components, designed for delicate watch repair tasks.

2. Product Features

• High-Quality Construction: A specialized tool crafted for precision watchmaking tasks.
• Damage Prevention: Engineered to remove watch hands without making contact with or damaging the watch dial.
• Versatile Pin Sizes: Equipped with 4 rotating support pins of varying diameters: Ø 0.4 mm, 0.65 mm, 0.9 mm, and 1.15 mm.
• Swiss Made Quality: Manufactured in Switzerland, ensuring reliability and durability.
• Ergonomic Design: Features an orange handle for comfortable and secure grip during use.

3. Setup and Preparation

1. Workspace: Ensure a clean, well-lit, and stable workspace. Use a protective mat to prevent scratches to the watch components.
2. Watch Securing: Secure the watch movement in a movement holder to prevent accidental movement during hand removal.
3. Pin Selection: Identify the appropriate support pin size (Ø 0.4, 0.65, 0.9, or 1.15 mm) that best fits the watch hand's shaft without touching the dial.
4. Tool Inspection: Before each use, inspect the tool for any signs of damage or wear. Ensure the support pins are clean and free from debris.

4. Operating Instructions

Follow these steps carefully to remove watch hands using the BERGEON 30671-7 tool:

1. Position the Watch: Place the watch movement (secured in a holder) on your workbench.
2. Align the Tool: Carefully position the BERGEON 30671-7 tool over the watch hands. Ensure the selected support pins are aligned with the hand's shaft and are clear of the dial surface.
3. Engage the Pins: Gently lower the tool until the support pins rest on the hand's shaft, providing a stable base. The design ensures the lever is supported on the hand's shaft, preventing contact with the dial.
4. Apply Pressure: With steady and controlled pressure, press down on the orange handle. The lever mechanism will lift the watch hand straight up from its post.
5. Remove Hand: Once the hand is disengaged, carefully lift the tool and the removed hand. Place the hand in a safe, designated container to prevent loss or damage.
6. Repeat: Repeat the process for any remaining hands, adjusting pin size as necessary.

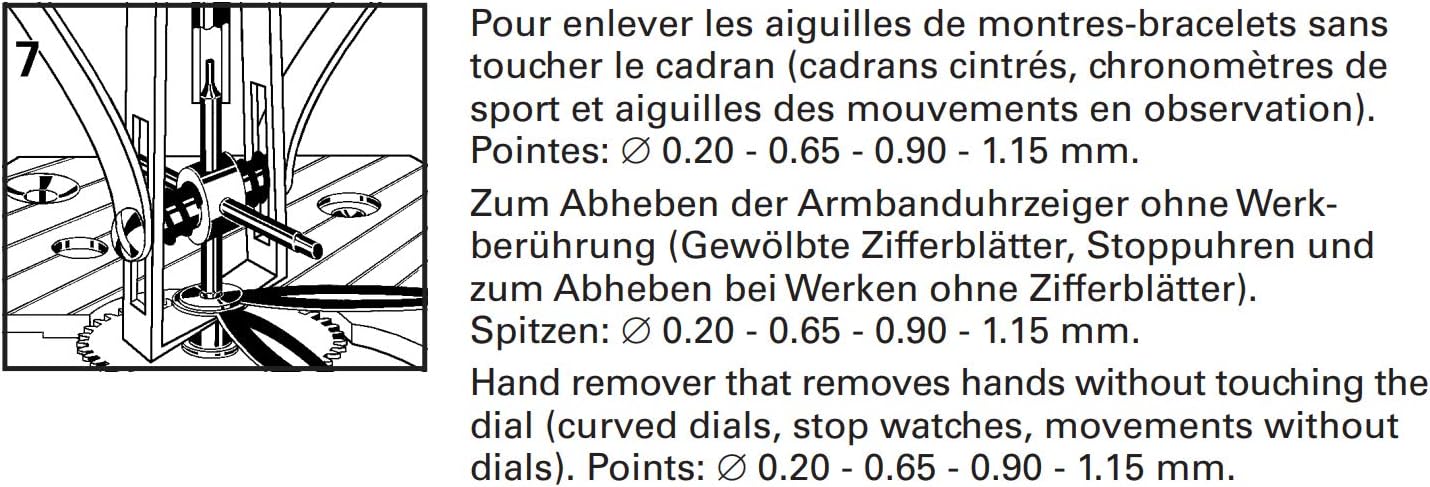

Figure 2: Detailed diagram illustrating the watch hand removal process. This image shows the tool's pins engaging with a watch hand, demonstrating how hands are lifted without touching the dial, particularly useful for curved dials, stopwatches, and movements without dials. The diagram also highlights the available pin sizes: Ø 0.2 - 0.65 - 0.9 - 1.15 mm.

5. Maintenance and Care

• Cleaning: After each use, gently wipe the tool with a soft, lint-free cloth to remove any dust or debris. For deeper cleaning, use a watchmaker's cleaning solution sparingly on the metal parts, avoiding the handle.
• Storage: Store the tool in its original packaging or a dedicated tool case to protect it from dust, moisture, and accidental damage. Keep it in a dry environment.
• Inspection: Regularly inspect the support pins for any signs of bending, dullness, or damage. Damaged pins can scratch watch components and should be replaced if possible, or the tool should be serviced.

6. Troubleshooting

If you encounter issues while using the BERGEON 30671-7 tool, consider the following:

• Hands Not Lifting:
  • Ensure the correct pin size is selected and properly aligned with the hand's shaft.
  • Verify that the tool is positioned squarely over the hands and not at an angle.
  • Apply steady, even pressure. Avoid excessive force.
• Risk of Dial Damage:
  • Double-check that the support pins are resting only on the hand's shaft and not touching the dial surface.
  • Ensure the watch movement is securely held and not shifting during the process.
• Tool Malfunction: If the tool appears damaged or is not functioning as expected, discontinue use and contact BERGEON customer support or an authorized service center.

7. Specifications

8. Warranty and Support

BERGEON products are known for their quality and precision. For specific warranty information, service, or technical support, please refer to the official BERGEON website or contact your authorized BERGEON dealer. Keep your purchase receipt as proof of purchase.

Information regarding spare parts availability is not provided in the product details.
