1. Introduction
The UNIVERSAL REMOTE RFX-250 Antenna is designed to enhance the performance of your universal remote control system. It functions by receiving radio frequency (RF) signals from your remote control and relaying them via a cable connection to the MRF-350 base unit. This advanced RF receiving circuitry ensures a longer operational range and minimizes interference, contributing to reliable system operation. Its compact design allows for discreet placement within your entertainment setup.
2. Setup
Proper placement and connection are crucial for optimal performance of the RFX-250 Antenna.
2.1 Placement
Due to its compact size, the RFX-250 can be placed in a discrete location, such as inside a cabinet or behind your entertainment system. Ensure the antenna is not obstructed by large metal objects, which can interfere with RF signal reception. While the advanced circuitry provides longer range, an unobstructed path to the remote control can further improve performance.

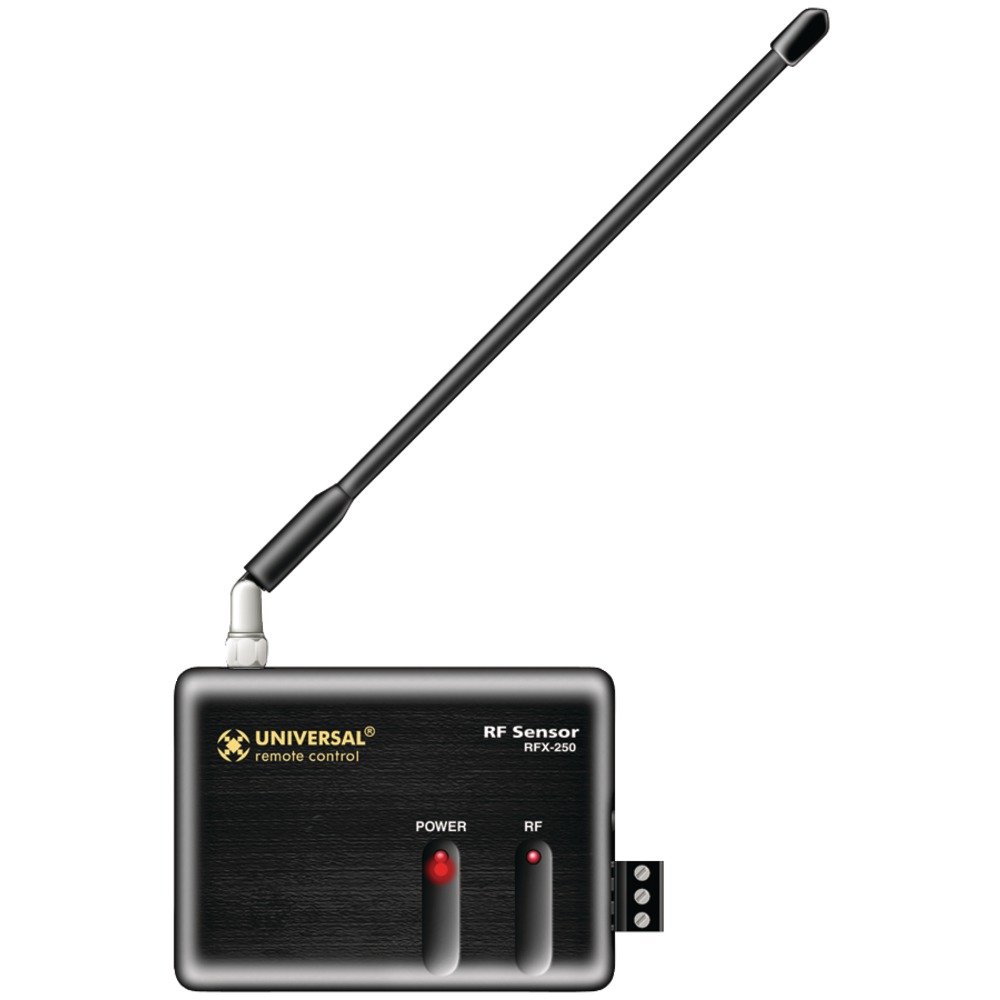

Figure 1: The UNIVERSAL REMOTE RFX-250 Antenna. This image shows the compact design of the antenna, highlighting its discreet placement capability.
2.2 Connection
Connect the RFX-250 Antenna to your MRF-350 Advanced RF base unit using the provided cable. Ensure the connection is secure to maintain signal integrity. Refer to your MRF-350 manual for specific port locations and connection instructions.
3. Operating Instructions
Once properly set up, the RFX-250 Antenna operates automatically in conjunction with your universal remote control and MRF-350 base unit.
- Signal Reception: The antenna continuously listens for RF signals transmitted by your compatible universal remote control.
- Signal Relay: Upon receiving a signal, the RFX-250 relays it through its cable connection to the MRF-350, which then translates the command to control your audio/video components.
- Operational Range: The RFX-250 is designed to provide a maximum operational range of approximately 100 feet (30 meters) under ideal conditions, allowing control from various locations within your home.
- Reliability: The advanced RF receiving circuitry is engineered to minimize interference, ensuring consistent and reliable command execution.
4. Maintenance
The RFX-250 Antenna requires minimal maintenance to ensure long-term performance.
- Cleaning: Periodically wipe the exterior of the antenna with a soft, dry cloth to remove dust. Avoid using liquid cleaners or abrasive materials.
- Environment: Keep the antenna in a dry environment, away from direct sunlight, extreme temperatures, and excessive moisture.
- Connections: Ensure all cable connections remain secure. Avoid bending or crimping the antenna cable.
5. Troubleshooting
If you experience issues with your RFX-250 Antenna, consider the following troubleshooting steps:
- Remote Control Not Responding:
- Verify that your universal remote control has fresh batteries and is functioning correctly.
- Ensure the RFX-250 Antenna is securely connected to the MRF-350 base unit.
- Check the placement of the RFX-250. Try repositioning it to a location with fewer obstructions or closer to where the remote control is typically used.
- Confirm that there are no new electronic devices or large metal objects introduced near the antenna that could cause interference.
- Intermittent Control:
- This can often be resolved by adjusting the antenna's position. Experiment with different orientations and locations to find the optimal spot for consistent signal reception.
- Ensure the MRF-350 base unit is powered on and operating correctly.
- Reduced Range:
- Obstacles such as walls, furniture, or other electronic devices can reduce the effective range. Try to minimize these obstructions between your remote and the antenna.
- Ensure the antenna cable is not damaged or kinked.
If problems persist after attempting these steps, please contact UNIVERSAL REMOTE customer support for further assistance.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | UNIVERSAL REMOTE |
| Model Number | RFX-250 |
| Antenna Type | Radio (RF) |
| Maximum Range | 100 Feet (approx. 30 meters) |
| Color | Black |
| Item Weight | 8.8 ounces (approx. 249 grams) |
| UPC | 656787302525 |
7. Warranty Information
Specific warranty details for the UNIVERSAL REMOTE RFX-250 Antenna are typically provided with the product packaging or can be found on the official UNIVERSAL REMOTE website. Please retain your proof of purchase for any warranty claims. The product is intended to be sold as new; returns of opened, used, or handled items may be subject to specific conditions as per the retailer's policy.
8. Support
For further assistance, technical support, or inquiries regarding your UNIVERSAL REMOTE RFX-250 Antenna, please visit the official UNIVERSAL REMOTE website or contact their customer service department. Always refer to the complete product manual for comprehensive information.
