Erickson 08908 Ratcheting Cargo Bar Instruction Manual

1. Introduction

The Erickson 08908 Ratcheting Cargo Bar is designed to securely hold cargo in place within a truck bed or other enclosed spaces. This device helps prevent items from shifting during transport, enhancing safety and protecting your cargo. It features a durable steel construction and an adjustable ratcheting mechanism for versatile use.

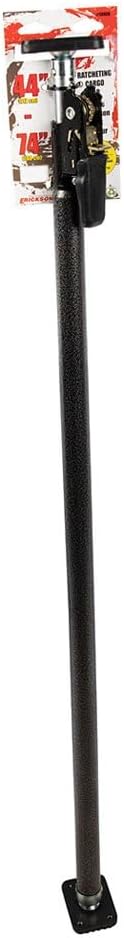

Figure 1: The Erickson 08908 Ratcheting Cargo Bar. This image displays the full length of the cargo bar, highlighting its robust construction and the integrated ratcheting mechanism.

2. Safety Information

Read and understand all instructions before using this product. Failure to follow these instructions may result in property damage or personal injury.

• Inspect Before Each Use: Always check the cargo bar for any signs of damage, wear, or corrosion before each use. Do not use if any components are bent, cracked, or otherwise compromised.
• Secure Properly: Ensure the cargo bar is firmly seated and fully tensioned against the cargo and vehicle walls. Improper tensioning can lead to cargo shifting.
• Do Not Overload: This cargo bar is designed to secure cargo, not to bear excessive weight. Do not use it as a structural support or for lifting.
• Keep Clear: Keep hands and fingers clear of the ratcheting mechanism during operation to prevent pinching.
• Children and Pets: Keep children and pets away from the cargo area during installation and removal of the bar.

3. Package Contents

Your package should contain the following item:

• One (1) Erickson 08908 Ratcheting Cargo Bar (adjustable from 44" to 74")

4. Setup and Installation

Follow these steps to properly set up and install your cargo bar:

1. Extend the Bar: Locate the quick-release pin or lever on the main shaft of the cargo bar. Depress or release it to allow the inner shaft to slide freely. Extend the bar to a length slightly longer than the distance between the two points where it will be secured (e.g., truck bed walls).
2. Position the Bar: Place one end of the cargo bar against a stable surface, such as the truck bed wall or the back of your cargo. Ensure the rubber foot is flat against the surface for maximum grip.
3. Engage the Ratchet: With the quick-release pin still depressed, push the other end of the bar against the opposing surface until it is snug. Release the quick-release pin to lock the initial length.
4. Tighten with Ratchet: Operate the ratcheting handle to apply additional tension. Pump the handle until the bar is firmly secured and the cargo is held tightly in place. Do not overtighten.

Figure 2: Close-up view of the ratcheting mechanism. This image shows the handle, gear, and release lever, which are crucial for adjusting and securing the cargo bar.

Figure 3: The cargo bar fully extended. This image illustrates the maximum length the bar can achieve, demonstrating its versatility for various truck bed sizes.

5. Operating Instructions

Once installed, the cargo bar effectively secures your items. Here’s how to operate it for various cargo types:

• Securing Loose Items: Position the cargo bar directly against the items you wish to secure. Ensure the items are stable and the bar is applying even pressure.
• Creating Compartments: The cargo bar can be used to create separate compartments within your truck bed, preventing items from sliding into each other.
• Checking Tension: Periodically check the tension of the cargo bar during long trips. Vibrations can sometimes cause slight loosening. Re-tighten if necessary.

Figure 4: Cargo bar securing multiple gas cans in a truck bed. This image demonstrates the practical application of the bar to prevent cylindrical items from rolling.

Figure 5: Cargo bar securing coolers and luggage in a truck bed. This image shows the bar effectively holding various shapes and sizes of cargo, creating a stable load.

To Release the Bar: Locate the release lever on the ratcheting mechanism. Depress or pull the lever to disengage the ratchet, allowing the bar to extend and release tension. Carefully remove the bar from its position.

6. Maintenance

Proper maintenance ensures the longevity and reliable performance of your cargo bar:

• Cleaning: Wipe down the cargo bar with a damp cloth to remove dirt, dust, and debris. For stubborn grime, a mild soap solution can be used. Ensure it is thoroughly dried to prevent rust.
• Lubrication: Periodically apply a light lubricant (e.g., silicone spray or light oil) to the moving parts of the ratcheting mechanism and the sliding shaft to ensure smooth operation.
• Storage: Store the cargo bar in a dry environment when not in use. Extend it slightly to prevent the rubber feet from sticking together if stored for long periods.

7. Troubleshooting

If you encounter issues with your Erickson 08908 Ratcheting Cargo Bar, consider the following:

• Bar Not Holding Tension:
  • Ensure the quick-release pin is fully engaged after initial extension.
  • Check the ratcheting mechanism for debris or damage that might prevent it from locking. Clean and lubricate if necessary.
  • Verify that the rubber feet are making full contact with the surfaces and are not slipping.
• Ratcheting Mechanism Stiff/Stuck:
  • Apply a lubricant to the moving parts of the ratchet.
  • Check for any foreign objects obstructing the mechanism.
• Bar Not Extending/Retracting Smoothly:
  • Ensure the quick-release pin is fully depressed or released.
  • Clean the inner and outer shafts to remove any dirt or rust. Apply a light lubricant.

8. Specifications

9. Warranty and Support

For warranty information or technical support regarding your Erickson 08908 Ratcheting Cargo Bar, please contact Erickson Manufacturing directly. Refer to the product packaging or the official Erickson website for the most current contact details and warranty terms.

Erickson Manufacturing: www.ericksonmfg.com
