Klein Tools 5109 Canvas Bucket Instruction Manual

1. Product Overview

The Klein Tools 5109 Canvas Bucket is a heavy-duty, wide-opening, straight-wall tool bucket designed for organizing and transporting tools and equipment. Constructed from durable No. 6 canvas with a black molded bottom, it is rated for a maximum load of 75 pounds (34 kg).

Key features include:

• Heavy-Duty Canvas: Made from No. 6 canvas for exceptional durability.
• Max Load Rating: Capable of handling up to 75 pounds (34 kg).
• Extended Web Handle: Handle extends down the sides for enhanced strength and stability.
• Straight-Wall Design: Provides ample space for tool storage.
• Molded Bottom: Black molded polypropylene bottom adds strength and durability.
• Chemical Resistance: High-density polyethylene top ring offers chemical resistance.

Figure 1: Front view of the Klein Tools 5109 Canvas Bucket, showing the brand logo and load limit information.

2. Setup

The Klein Tools 5109 Canvas Bucket requires minimal setup. Upon receiving the product, perform the following steps:

1. Unpacking: Remove the bucket from its packaging.
2. Initial Inspection: Visually inspect the bucket for any signs of damage, such as tears in the canvas, cracks in the molded bottom, or fraying of the handle. Ensure the handle is securely attached.
3. Familiarization: Note the straight-wall design and the reinforced bottom. The bucket is ready for immediate use.

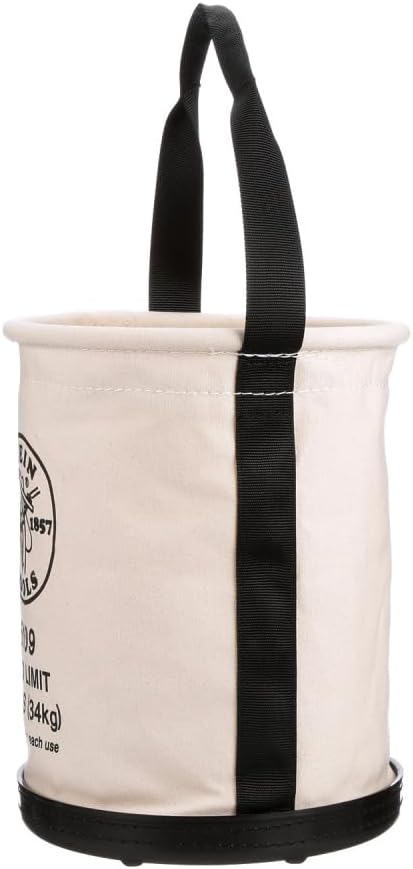

Figure 2: Side view of the canvas bucket, illustrating the extended web handle design for enhanced strength.

3. Operating Instructions

The Klein Tools 5109 Canvas Bucket is designed for efficient and safe tool organization and transport.

1. Loading Tools: Place tools and equipment inside the bucket. Utilize the wide-opening and straight-wall design to maximize storage space and maintain organization.
2. Observe Load Limit: Do not exceed the maximum load rating of 75 pounds (34 kg). Overloading can compromise the integrity of the bucket and handle, leading to potential damage or injury.
3. Carrying: Use the robust web handle to carry the bucket. Ensure a firm grip, especially when the bucket is heavily loaded.
4. Placement: Place the bucket on a stable, flat surface when not in transit to prevent tipping and spillage of contents.

Figure 3: An individual utilizing the canvas bucket to store a power drill and other tools while working outdoors.

Figure 4: An individual carrying the Klein Tools 5109 Canvas Bucket, demonstrating its portability with tools inside.

4. Maintenance

Proper maintenance ensures the longevity and performance of your Klein Tools 5109 Canvas Bucket.

• Regular Cleaning: Wipe down the canvas exterior and interior with a damp cloth to remove dirt, dust, and debris. For stubborn grime, a mild soap solution can be used, followed by rinsing and air drying.
• Inspect for Wear: Periodically inspect the canvas for tears, punctures, or excessive wear. Check the handle for fraying or damage to the stitching. Examine the molded bottom for cracks or signs of structural compromise.
• Storage: Store the bucket in a dry environment away from direct sunlight when not in use to prevent material degradation.
• Avoid Harsh Chemicals: While the top ring offers chemical resistance, avoid prolonged exposure of the canvas or molded bottom to strong chemicals that could cause damage.

Figure 5: Top-down view into the bucket, showcasing the spacious interior and the durable molded bottom.

5. Troubleshooting

This section addresses common concerns and their resolutions.

• Bucket appears unstable or tips easily: Ensure the bucket is placed on a flat, level surface. Distribute the weight of the tools evenly within the bucket to maintain balance.
• Handle shows signs of wear or fraying: Discontinue use if the handle's integrity is compromised, as this could lead to accidental drops and potential injury or damage to tools. Consider replacing the bucket.
• Canvas is torn or punctured: Small tears may be repaired with heavy-duty canvas repair kits. However, significant damage may compromise the bucket's load-bearing capacity and durability, necessitating replacement.
• Molded bottom is cracked: A cracked bottom can lead to tools falling out or reduced structural integrity. The bucket should be replaced if the bottom is significantly damaged.

6. Specifications

7. Warranty and Support

For information regarding product warranty, please refer to the official Klein Tools website or contact their customer service directly. Klein Tools is committed to providing high-quality products and support.

Customer Support:

• Visit the KLEIN TOOLS Store on Amazon for product information and resources.
• Refer to the official Klein Tools website for detailed contact information and support options.
