Ibanez MU10 Chromatic Tuner User Manual

1. Introduction

Thank you for choosing the Ibanez MU10 Chromatic Tuner. This device is designed to provide accurate and reliable tuning for a wide range of musical instruments. Please read this manual thoroughly to understand the features and proper operation of your new tuner.

2. Safety Information

• Do not expose the unit to extreme temperatures, humidity, or direct sunlight.
• Avoid dropping or subjecting the unit to strong impacts.
• Do not attempt to disassemble or modify the unit. This may cause damage and void the warranty.
• Use only the specified battery type. Remove batteries if the unit will not be used for an extended period.
• Keep out of reach of children.

3. Product Overview

The Ibanez MU10 is a compact chromatic tuner featuring a clear display and intuitive controls. It is suitable for tuning guitars, basses, and other stringed instruments.

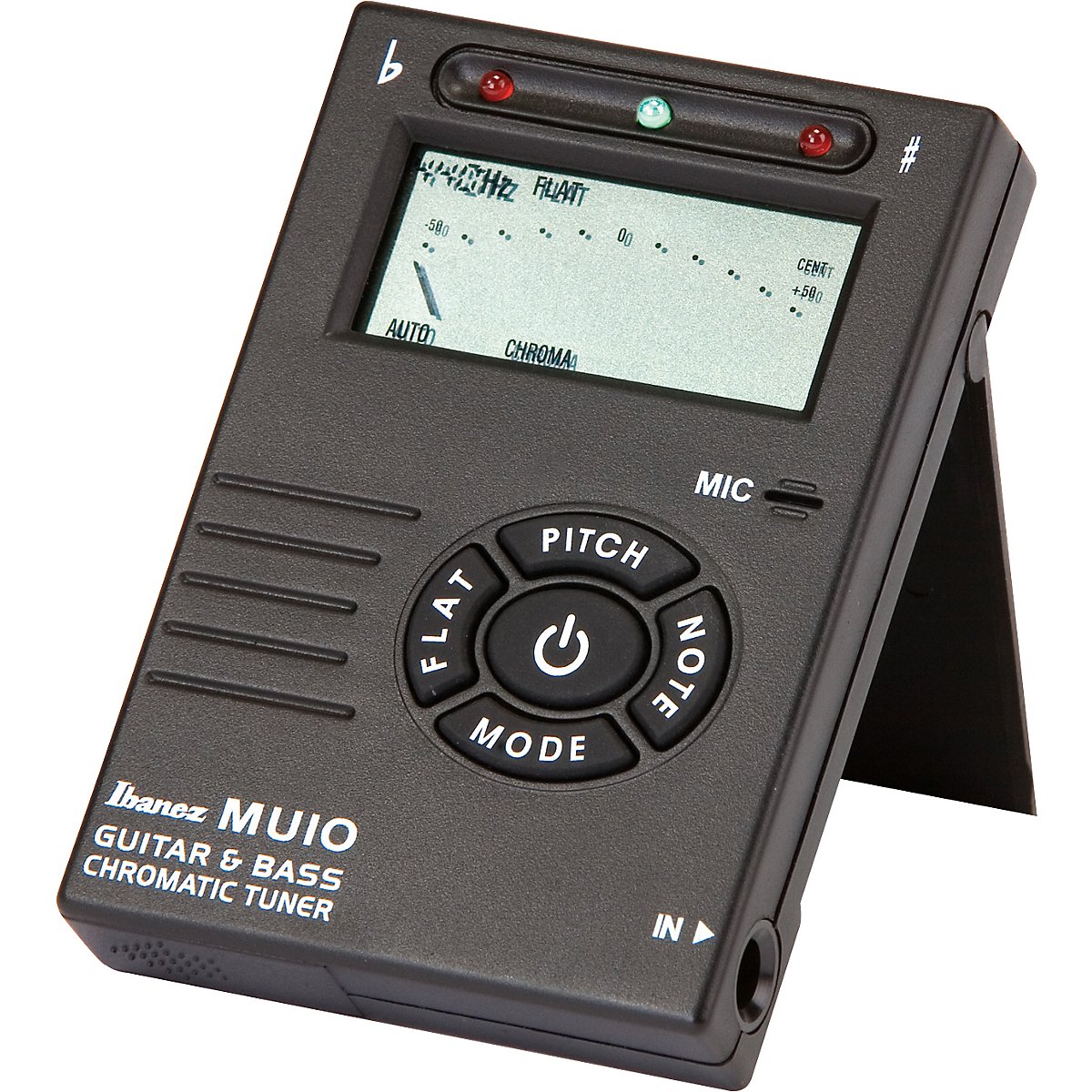

Figure 1: Front view of the Ibanez MU10 Chromatic Tuner, showing the display screen and control buttons.

Key Features:

• Chromatic tuning mode.
• Wide detection range.
• Easy-to-read display.
• Compact and portable design.

4. Setup

4.1. Battery Installation

1. Locate the battery compartment cover on the back of the unit.
2. Slide the cover open in the direction indicated by the arrow.
3. Insert two AAA batteries (not included), ensuring the correct polarity (+/-) as marked inside the compartment.
4. Close the battery compartment cover until it clicks securely into place.

4.2. Connecting to an Instrument

The MU10 tuner can be used with its built-in microphone or by connecting an instrument directly via a 1/4-inch input jack.

• Using the built-in microphone: Place the tuner near your instrument. The microphone will detect the sound vibrations.
• Using the input jack: Connect a standard 1/4-inch instrument cable from your instrument's output jack to the INPUT jack on the tuner.

5. Operating Instructions

5.1. Power On/Off

• To turn on the tuner, press and hold the POWER button.
• To turn off the tuner, press and hold the POWER button again.
• The unit will automatically power off after a period of inactivity to conserve battery life.

5.2. Tuning an Instrument

1. Ensure the tuner is powered on and connected to your instrument (or placed near it).
2. Play a single note on your instrument. The tuner's display will show the detected note name and pitch deviation.
3. Adjust your instrument's tuning peg until the display indicates the correct note and the pitch indicator is centered.
   • If the indicator is to the left, the note is flat. Tune up.
   • If the indicator is to the right, the note is sharp. Tune down.
   • When the indicator is centered and the display shows green (or a similar indication), the note is in tune.
4. Repeat for all strings/notes you wish to tune.

6. Maintenance

6.1. Cleaning

Wipe the unit with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents, as these may damage the finish or internal components.

6.2. Battery Replacement

When the display becomes dim or the unit fails to power on, replace the batteries following the instructions in Section 4.1. Always dispose of used batteries responsibly according to local regulations.

7. Troubleshooting

8. Specifications

• Model: MU10 (Z99)
• Tuning Mode: Chromatic
• Detection Range: (Specific range not provided in input, general statement)
• Input: 1/4-inch jack, Built-in microphone
• Power Supply: 2 x AAA batteries
• Item Weight: 0.8 ounces
• Package Dimensions: 7.5 x 2.7 x 1.5 inches
• ASIN: B000OAJJ3A
• Date First Available: March 12, 2007

9. Warranty and Support

For warranty information or technical support, please contact Ibanez customer service. Details can typically be found on the official Ibanez website or through your local dealer. Please retain your proof of purchase for warranty claims.

Ibanez Official Website: www.ibanez.com
