1. Product Overview
The Royal Sovereign ARP-1000EX is a portable 10,000 BTU dual-hose air conditioner designed for efficient cooling of rooms up to 300 square feet. This unit features a digital LED display, remote control, and a 12-hour programmable timer for convenient operation. Its dual-hose system enhances cooling efficiency, while durable casters provide easy mobility. An easy-to-clean carbon filter helps maintain air quality.

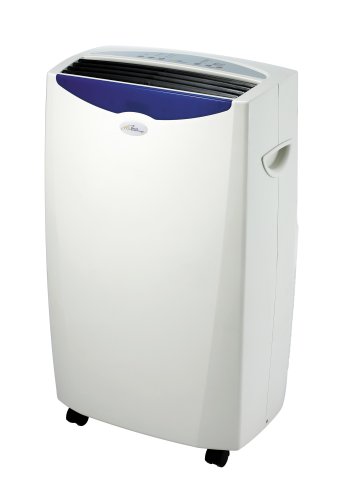

Image 1.1: Royal Sovereign ARP-1000EX Portable Air Conditioner. This image displays the front view of the portable air conditioner unit, showing its compact design and control panel.
Key Features:
- 10,000 BTU cooling capacity for rooms up to 300 sq ft.
- Dual-hose system for improved cooling performance.
- Digital LED display and remote control for easy adjustments.
- Three fan speeds for customized comfort.
- 12-hour programmable timer.
- Easy-to-clean carbon filter.
- Durable casters for portability.
2. Important Safety Instructions
Please read all instructions carefully before operating this appliance. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Always plug the unit into a grounded 3-prong outlet. Do not remove the grounding prong.
- Do not operate the unit with a damaged power cord or plug. If the cord is damaged, it must be replaced by the manufacturer or a qualified service agent.
- Do not use extension cords or adapter plugs with this unit.
- Ensure the unit is placed on a flat, stable surface to prevent tipping.
- Keep the air intake and exhaust vents clear of obstructions.
- Do not insert fingers or objects into the air discharge area.
- Unplug the unit before cleaning or performing any maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
3. Setup and Installation
Follow these steps to properly set up your portable air conditioner:
- Unpacking: Carefully remove the unit from its packaging. Retain the packaging for future storage or transport.
- Placement: Place the air conditioner on a firm, level surface near a window and a grounded electrical outlet. Ensure there is at least 20 inches (50 cm) of space around the unit for proper air circulation.
- Window Kit Installation:
- Assemble the window slider kit according to the instructions provided with the kit.
- Insert the exhaust hose adapter into the window slider kit opening.
- Extend the window kit to fit your window opening and secure it.
- Hose Connection:
- Attach one end of each 5-foot venting hose to the designated intake and exhaust ports on the back of the air conditioner unit.
- Connect the other ends of the hoses to the window slider kit, ensuring a secure and airtight fit. The dual-hose system requires both hoses to be properly installed for optimal performance.
- Power Connection: Plug the power cord into a grounded 3-prong electrical outlet.
Note: For best performance, ensure the hoses are as straight and short as possible to minimize airflow resistance.
4. Operating Instructions
Your ARP-1000EX air conditioner can be operated using the control panel on the unit or the included remote control.
Control Panel and Remote Control Functions:
- Power Button: Press to turn the unit ON or OFF.
- Mode Button: Cycle through operating modes: Cool, Fan, Dry (Dehumidify).
- Temperature Up/Down Buttons: Adjust the desired temperature setting.
- Fan Speed Button: Select fan speed: Low, Medium, High.
- Timer Button: Set the 12-hour programmable timer for delayed start or stop.
- Press the Timer button, then use the Up/Down buttons to set the desired delay time (1-12 hours).
- The unit will automatically turn on or off after the set time.
Operating Modes:
- Cool Mode: Provides cooling. Set desired temperature and fan speed.
- Fan Mode: Circulates air without cooling. Select desired fan speed.
- Dry Mode (Dehumidify): Removes moisture from the air. Fan speed is typically fixed to low in this mode.
5. Maintenance
Regular maintenance ensures optimal performance and extends the life of your air conditioner.
Cleaning the Carbon Filter:
The ARP-1000EX features an easy-to-clean carbon filter that collects large dust particles and helps prevent bacteria build-up. It is recommended to clean the filter every two weeks, or more frequently depending on usage and air quality.
- Power Off: Ensure the unit is turned off and unplugged from the power outlet before cleaning.
- Remove Filter: Locate the filter access panel (usually at the back or side of the unit). Open the panel and carefully slide out the carbon filter.
- Clean Filter: Gently vacuum the filter to remove dust and debris. If heavily soiled, wash it with warm, soapy water. Rinse thoroughly.
- Dry Filter: Allow the filter to air dry completely before reinserting. Do not expose to direct sunlight or high heat.
- Reinstall Filter: Slide the dry filter back into its slot and close the access panel.
General Cleaning:
- Wipe the exterior of the unit with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Ensure the air intake and exhaust grilles are free of dust and lint.
6. Troubleshooting
Before contacting customer support, please refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power; power cord not plugged in; circuit breaker tripped. | Ensure unit is plugged into a live, grounded outlet. Check circuit breaker. |
| Unit is running but not cooling. | Window kit not properly installed; hoses not connected; filter clogged; room too large. | Check window kit and hose connections. Clean air filter. Ensure room size is within unit's capacity (up to 300 sq ft). |
| Airflow is weak. | Air filter clogged; intake/exhaust vents blocked. | Clean the air filter. Remove any obstructions from vents. |
| Unit is noisy. | Unit not on a level surface; fan speed too high. | Place unit on a level surface. Reduce fan speed. (Note: Some operational noise is normal for portable AC units.) |
| Water leakage. | Drain plug not properly sealed; unit tilted. | Ensure drain plug is securely closed. Place unit on a level surface. |
7. Product Specifications
| Model Number: | ARP-1000EX |
| Cooling Capacity: | 10,000 BTU/hr |
| Recommended Room Size: | Up to 300 sq ft |
| Energy Efficiency Ratio (EER): | 8.74 |
| Power Consumption: | 1030 Watts |
| Power Source: | Corded Electric |
| Refrigerant Type: | R 410A |
| Fan Speeds: | 3 (Low, Medium, High) |
| Timer: | 1-12 hours programmable |
| Control Method: | Digital LED, Remote Control |
| Product Dimensions (D x W x H): | 16" x 18.5" x 34.28" (40.6 cm x 47 cm x 87.1 cm) |
| Item Weight: | 77.2 lbs (35 kg) |
| Hose Length: | 2 x 5 feet (extendable) |
| Color: | White |
8. Warranty and Customer Support
Warranty Information:
This Royal Sovereign ARP-1000EX Portable Air Conditioner carries a one-year parts and labor warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, alteration, or unauthorized repair.
Please retain your proof of purchase for warranty claims.
Customer Support:
For technical assistance, warranty service, or to inquire about replacement parts, please contact Royal Sovereign customer support. Refer to the contact information provided in your product packaging or visit the official Royal Sovereign website.
Note: Do not attempt to repair the unit yourself. Unauthorized repairs will void the warranty.
