Mamiya Auto Extension Tube No. 1 User Manual

1. Introduction

The Mamiya Auto Extension Tube No. 1 is a precision-engineered accessory designed for close-up and macrophotography with Mamiya RZ67 medium format cameras. This extension tube provides a 45mm extension, allowing your lens to focus closer than its normal minimum focusing distance. It maintains full meter coupling, ensuring automatic or manual exposure control with compatible lenses and camera bodies.

This manual provides essential information for the correct and safe use of your Mamiya Auto Extension Tube No. 1. Please read it thoroughly before use and retain it for future reference.

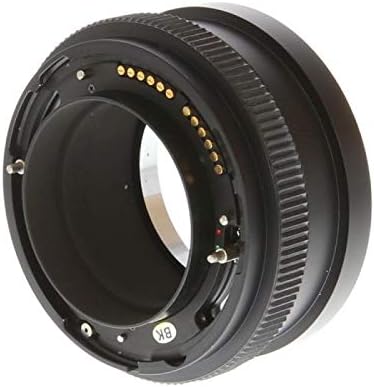

Figure 1: Front view of the Mamiya Auto Extension Tube No. 1, showing the lens mounting side with electrical contacts for communication between the camera and lens.

2. Safety Information

• Handle with Care: The extension tube contains precision optical and electronic components. Avoid dropping or subjecting it to strong impacts.
• Avoid Moisture: Do not expose the extension tube to water or high humidity. Moisture can damage internal electronics and cause corrosion.
• Temperature Extremes: Do not use or store the extension tube in extremely hot or cold environments.
• Cleaning: Use a soft, dry, lint-free cloth for cleaning. Avoid harsh chemicals or abrasive materials.
• Storage: When not in use, store the extension tube in a clean, dry place, away from direct sunlight and dust.

3. Package Contents

Verify that your package contains the following item:

• Mamiya Auto Extension Tube No. 1 (Quantity: 1)

If any items are missing or damaged, please contact your retailer.

4. Setup and Attachment

The Mamiya Auto Extension Tube No. 1 is designed to be mounted between your Mamiya RZ67 camera body and a compatible lens. It can also be combined with other Mamiya extension tubes, such as the Auto Extension Tube No. 2 (sold separately), for greater magnification.

Attaching the Extension Tube to the Camera Body:

1. Ensure your camera is powered off.
2. Remove the lens from your camera body by pressing the lens release button and rotating the lens counter-clockwise.
3. Align the red dot on the extension tube with the red dot on the camera body's lens mount.
4. Gently insert the extension tube into the camera body mount and rotate it clockwise until it clicks securely into place. Do not force it.

Figure 2: Rear view of the Mamiya Auto Extension Tube No. 1, showing the camera mounting side with lugs and electrical contacts.

Attaching the Lens to the Extension Tube:

1. Align the red dot on your Mamiya RZ67 lens with the red dot on the front of the extension tube.
2. Gently insert the lens into the extension tube mount and rotate it clockwise until it clicks securely into place.

Figure 3: Side profile of the Mamiya Auto Extension Tube No. 1, illustrating its compact design and 1.8-inch length.

5. Operating Instructions

Once the Mamiya Auto Extension Tube No. 1 is securely attached between your camera body and lens, you are ready to begin macrophotography.

• Focusing: With an extension tube, the minimum focusing distance of your lens is significantly reduced, allowing for closer focus and higher magnification. The maximum focusing distance will also be reduced.
• Exposure: The Auto Extension Tube No. 1 maintains full electronic coupling between the camera and lens. This means your camera's metering system will function normally, providing accurate automatic or manual exposure readings. No manual exposure compensation is typically required due to the tube itself, as the camera meters through the lens.
• Depth of Field: Macrophotography inherently results in a very shallow depth of field. Consider using smaller apertures (higher f-numbers) to increase the depth of field, if desired.
• Lighting: Due to the close working distances and potential light loss, additional lighting (e.g., flash, continuous lighting) may be beneficial or necessary for optimal results.
• Stability: For critical focus and sharpness in macrophotography, using a sturdy tripod is highly recommended to minimize camera shake.

Figure 4: Angled view of the Mamiya Auto Extension Tube No. 1, highlighting the internal structure and electrical contacts on the lens mounting side.

6. Maintenance

Proper care and maintenance will ensure the longevity and optimal performance of your Mamiya Auto Extension Tube No. 1.

• Cleaning the Exterior: Use a soft, dry, lint-free cloth to wipe the exterior of the extension tube. For stubborn smudges, a slightly dampened cloth with water can be used, followed immediately by a dry cloth.
• Cleaning Contacts: If you experience connection issues, gently clean the electrical contacts on both ends of the extension tube with a clean, dry cotton swab. Avoid touching the contacts with your fingers.
• Storage: When not in use, detach the extension tube from the camera and lens. Store it in a protective pouch or case in a cool, dry, dust-free environment. Avoid areas with extreme temperature fluctuations or high humidity.
• Avoid Disassembly: Do not attempt to disassemble the extension tube. This can cause damage and void any potential warranty.

7. Troubleshooting

8. Specifications

• Product Name: Mamiya Auto Extension Tube No. 1
• Compatibility: Mamiya RZ67 Medium Format Cameras and Lenses
• Extension Length: 45mm (1.8 inches)
• Exposure Control: Fully meter coupled for automatic or manual exposure
• Material: Metal
• Color: Black
• Combination: Can be used individually or in combination with Mamiya Auto Extension Tube No. 2 (sold separately)

9. Warranty and Support

Mamiya products are manufactured to high standards. For specific warranty information, please refer to the documentation provided at the time of purchase or contact your authorized Mamiya dealer. Keep your proof of purchase for warranty claims.

For technical support or service inquiries, please contact your local Mamiya distributor or an authorized service center.
