Introduction
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of the Weiser CLC10053 Tell KT2100 Series Entry Knobset. Designed for commercial applications, this heavy-duty knobset offers reliable security and durability. Please read all instructions carefully before proceeding with installation or use.
The KT2100 Series knobset is rated for 400,000 cycles and constructed from stainless steel, ensuring long-term performance. It is fully reversible and designed to fit standard 161 door preparations. This product is UL/ULC listed for 3-hour fire doors.
Setup and Installation
Tools Required: Phillips head screwdriver, measuring tape, pencil, drill (if creating new door preparation).
Included Components: Handle, outside rosette, screw posts, cylinder collar, spindle, latch screws, face plate, rotation stem, mounting screws, turn piece, paper tab, inside rosette.
- Prepare the Door: Ensure your door has a standard 161 door preparation. If installing on a new door, mark and drill holes according to standard door knob templates. The knobset is ambidextrous, allowing for installation on left or right-handed doors.
- Install the Latch: Insert the latch mechanism into the edge bore hole of the door. Secure it with the provided latch screws. Ensure the latch bolt faces the correct direction for the door swing.
- Install the Outside Knob Assembly: Place the outside rosette and cylinder collar onto the outside of the door. Insert the spindle through the latch mechanism.
- Install the Inside Knob Assembly: Align the inside rosette with the screw posts from the outside assembly. Connect the rotation stem to the latch mechanism.
- Secure the Knobset: Use the mounting screws to firmly attach the inside and outside knob assemblies together. Ensure the knobset is level and operates smoothly. Do not overtighten.
- Test Operation: Insert a key into the outside cylinder and turn to ensure the latch retracts and extends properly. Test the inside turn piece for smooth locking and unlocking.

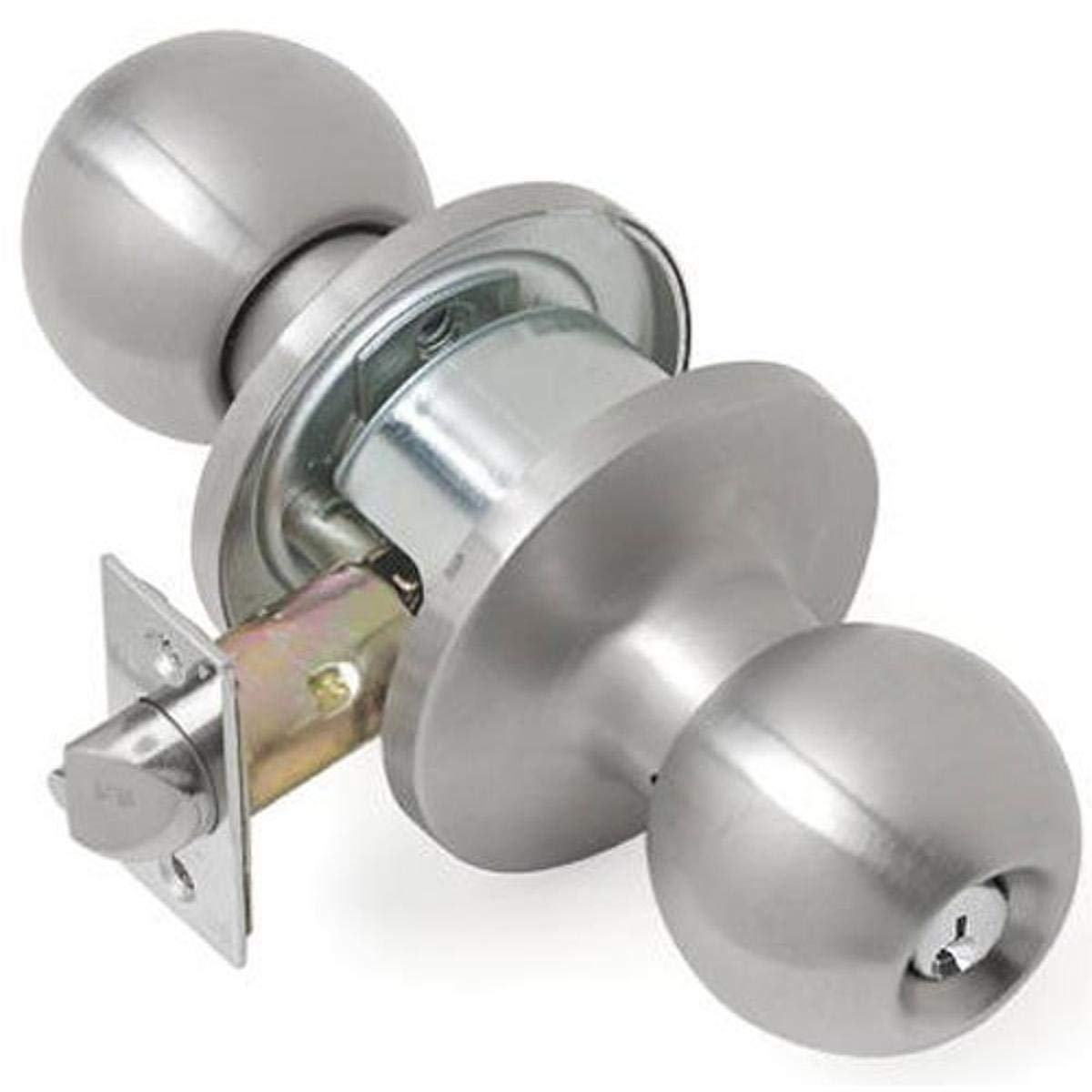

Image: The Weiser CLC10053 Tell KT2100 Series Entry Knobset, showcasing its robust design and key entry mechanism. This image illustrates the complete knobset assembly, including the exterior and interior components, as it would appear when installed on a door.
Operating Instructions
The Weiser CLC10053 Tell KT2100 Series is an entry knobset, meaning it can be locked and unlocked from the exterior with a key, and from the interior using a turn piece.
- To Lock from Exterior: Insert the key into the cylinder and turn it clockwise (or counter-clockwise, depending on installation) until the knob is locked. Remove the key.
- To Unlock from Exterior: Insert the key into the cylinder and turn it in the opposite direction until the knob is unlocked. The knob will then turn freely.
- To Lock from Interior: Rotate the turn piece located on the inside knob. The knob will then be locked.
- To Unlock from Interior: Rotate the turn piece back to its original position. The knob will then be unlocked.
- To Open the Door: Once unlocked, turn the knob in either direction to retract the latch bolt and open the door.
Maintenance
Regular maintenance ensures the longevity and optimal performance of your Weiser CLC10053 Tell KT2100 Series Entry Knobset.
- Cleaning: Clean the knobset surfaces with a soft, damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Lubrication: Periodically apply a small amount of graphite lubricant or a silicone-based spray lubricant to the keyway and the latch mechanism. Do not use oil-based lubricants, as they can attract dirt and dust.
- Screw Tightness: Periodically check all mounting screws and latch screws for tightness. Tighten any loose screws to prevent wobbling or misalignment.
- Key Care: Keep keys clean and free of debris. Do not force a key if it feels stiff; apply lubricant to the keyway first.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Knob does not turn or is stiff. | Lack of lubrication; internal mechanism obstruction; loose screws. | Apply graphite lubricant to the keyway and spindle. Check for and remove any obstructions. Tighten mounting screws. |
| Key does not insert or turn smoothly. | Keyway obstruction; worn key; cylinder issue. | Clean keyway with compressed air. Lubricate keyway. Try a spare key. If issue persists, contact support. |
| Latch bolt does not retract or extend fully. | Misalignment; debris in latch mechanism; worn spring. | Check door and frame alignment. Clean latch bolt area. Lubricate latch mechanism. Re-install if necessary. |
| Knobset feels loose or wobbly. | Loose mounting screws. | Tighten all mounting screws securely. |
Specifications
- Model Number: CL100053
- Brand: Weiser
- Material: Stainless Steel, Alloy Steel, Zinc
- Product Dimensions: 25L x 25W millimeters
- Exterior Finish: Zinc (Powder Coated)
- Handle Type: Knob
- Specific Uses: Commercial
- Shape: Round
- Special Feature: Easy to Install
- Item Weight: 2.2 Pounds
- Center To Center Spacing: 1 Inches
- Projection Distance: 1 Inches
- Lock Type: Key Lock
- Hand Orientation: Ambidextrous
- UL/ULC Listing: 3-hour fire door rated
- Cycle Rating: 400,000 cycles
- UPC: 737874298102
Warranty Information
The Weiser CLC10053 Tell KT2100 Series Entry Knobset is backed by a Limited Lifetime Warranty, covering defects in material and workmanship under normal use. Please retain your proof of purchase for warranty claims.
Additionally, a 30-day manufacturer warranty may apply to specific components or initial manufacturing defects. For full details regarding warranty coverage and terms, please refer to the official Weiser warranty documentation or contact customer support.
Customer Support
If you require further assistance, have questions not covered in this manual, or need to make a warranty claim, please contact Weiser customer support. Visit the official Weiser website for contact information and additional resources.
