Manfrotto 322RC2 Heavy Duty Joystick Grip Ball Head Instruction Manual

Introduction

Thank you for choosing the Manfrotto 322RC2 Heavy Duty Joystick Grip Ball Head. This product is designed to provide precise and ergonomic control for your camera, ensuring stability and ease of use for both photography and videography. This manual provides essential information for the proper setup, operation, and maintenance of your new ball head.

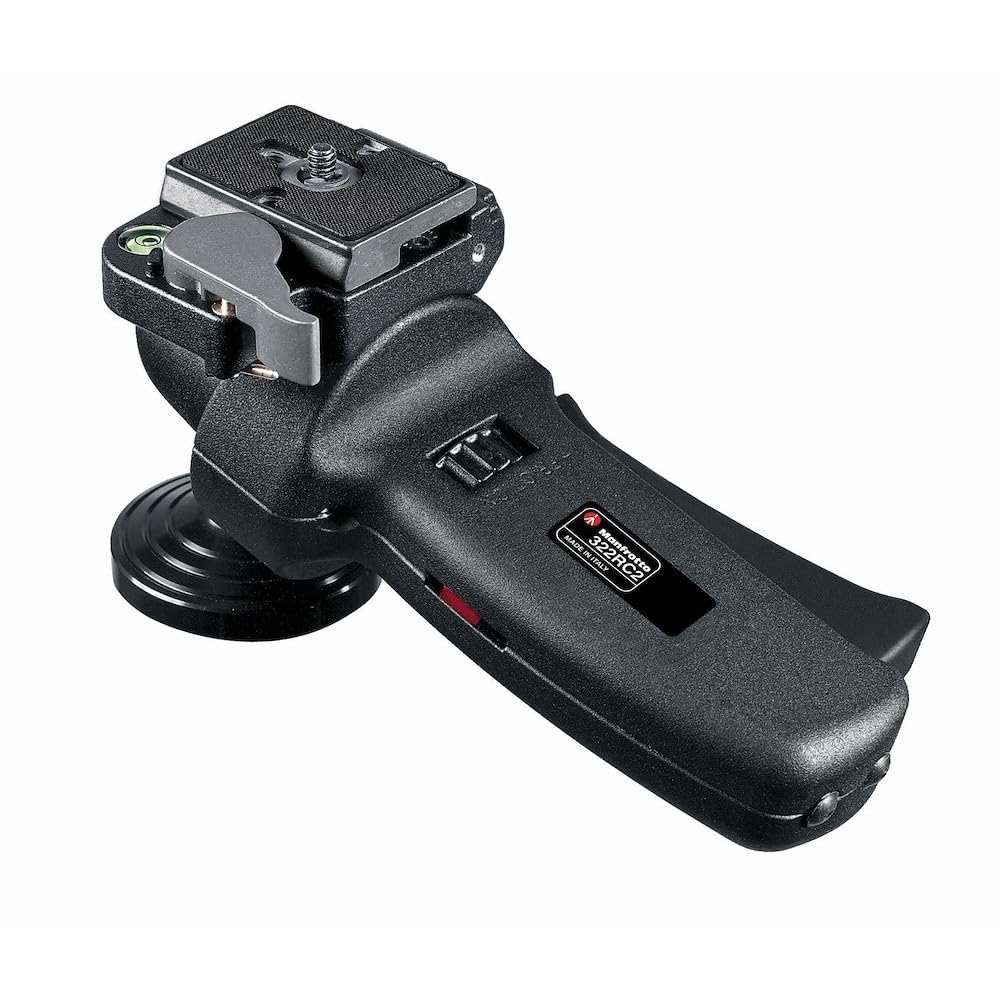

Figure 1: Manfrotto 322RC2 Heavy Duty Joystick Grip Ball Head.

Setup

1. Attaching to a Tripod

Ensure your tripod is stable and securely set up.
Screw the Manfrotto 322RC2 ball head onto the tripod's mounting screw (standard 1/4"-20 screw) until it is firmly attached.

2. Mounting Your Camera

Locate the 200PL quick release plate. Attach this plate to the bottom of your camera by screwing the 1/4"-20 screw into the camera's tripod socket. Use the drop-down handle on the screw for easy tightening without tools.
Ensure the quick release plate is securely fastened to your camera.
To attach the camera to the ball head, align the quick release plate with the receiver on the ball head.
Press the two release buttons on the quick release mechanism and slide the plate into the receiver until it clicks into place.
Engage the secondary safety lock to prevent accidental release. This lock stops the quick release lever from opening fully unless intentionally disengaged.

Figure 2: Product dimensions for the Manfrotto 322RC2, illustrating its compact form factor.

3. Adjusting Friction Control

The ball head features a friction control wheel. This allows you to regulate the resistance of the ball's movement when unlocked.
Turn the wheel to increase or decrease friction. A higher friction setting is recommended for heavier camera setups to prevent sudden drops.
The position of the red line on the friction control indicates the approximate amount of friction applied.

Operating the Ball Head

1. Using the Joystick Grip

The revolutionary joystick grip handle allows for single-handed operation.
To unlock the ball head and move your camera, simply squeeze the grip handle. This releases the locking mechanism.
Position your camera as desired. The head offers 360-degree rotation and versatile tilt movements.
Release the grip handle to lock the camera firmly in its new position.

2. Built-in Bubble Spirit Level

Utilize the integrated bubble spirit level to ensure your horizons are perfectly horizontal, especially for landscape photography.

3. Optional Shutter Release Accessory

The 322RC2 is compatible with the Manfrotto 322RS shutter release accessory (sold separately). This accessory allows you to control the camera shutter directly from the grip handle, enhancing workflow and control.

Video 1: Demonstration of the Manfrotto Grip Action Ball Head's features and benefits for photographers.

Video 2: A detailed demo showcasing the Manfrotto 322RC2's quick adjustments and secure camera mounting.

Video 3: A brief review highlighting the Manfrotto Grip Action Ball Head's fluid movement and stability.

Maintenance

Cleaning: Wipe the ball head with a soft, dry cloth after each use to remove dust and debris. For stubborn dirt, use a slightly damp cloth and mild soap, then dry thoroughly. Avoid abrasive cleaners or solvents.
Lubrication: The internal mechanisms are factory-lubricated. Do not attempt to lubricate the ball or internal components yourself, as this may affect performance.
Storage: Store the ball head in a dry, cool environment, away from extreme temperatures and humidity.

Troubleshooting

Problem	Possible Cause	Solution
Camera not securely attached.	Quick release plate not fully engaged or secondary safety lock not activated.	Ensure the quick release plate is fully inserted and clicks into place. Activate the secondary safety lock. Verify the plate is tightly screwed to the camera.
Ball head movement is too stiff.	Friction control is set too high.	Adjust the friction control wheel to a lower setting.
Ball head movement is too loose.	Friction control is set too low or heavy camera setup.	Adjust the friction control wheel to a higher setting to match the weight of your camera and lens.
Camera droops after locking.	Insufficient friction or heavy load.	Increase the friction control setting. Ensure the camera is balanced on the plate.

Specifications

Model Number: 322RC2
Product Dimensions: 6 x 4 x 4 inches (15.24 x 10.16 x 10.16 cm)
Item Weight: 1.83 pounds (0.83 kg)
Load Capacity: Up to 8 kg (17.6 lbs)
Material: Magnesium
Color: Black
Quick Release Plate: 200PL (standard 1/4" screw with secondary safety pin)
Features: Joystick grip action, friction control, built-in bubble spirit level, 360-degree rotation.
UPC: 719821236429
Global Trade Identification Number (GTIN): 00719821236429, 08024221401707

Warranty and Support

Manfrotto provides a comprehensive warranty for its products. For detailed information regarding your warranty coverage, please refer to the official Manfrotto website or contact their customer support. For any technical assistance, spare parts, or further inquiries, please visit the Manfrotto official website or consult your local dealer.

Figure 3: Manfrotto's UNI Safety Payload certification, ensuring equipment safety and reliability.
