Simran VCT VT-2300R Voltage Converter Transformer User Manual

1. Introduction and Overview

This manual provides essential instructions for the safe and efficient operation of your Simran VCT VT-2300R Voltage Converter Transformer. This heavy-duty unit is designed for continuous use, allowing you to convert electrical voltage between 110-120V and 220-240V, and vice-versa. Please read this manual thoroughly before using the device to ensure proper function and to prevent damage or injury.

2. Safety Information

Always observe the following safety precautions to reduce the risk of fire, electric shock, or injury:

• Read all instructions: Familiarize yourself with the operation and limitations of the converter.
• Proper Ventilation: Ensure the converter is placed in a well-ventilated area. Do not block ventilation openings.
• Avoid Moisture: Do not expose the converter to rain, moisture, or excessive humidity.
• Grounding: The unit is equipped with a grounded European Schuko plug. Ensure the outlet used is properly grounded.
• Load Capacity: Do not exceed the maximum rated capacity of 2300 Watts. Overloading can cause damage to the unit and connected appliances, and may pose a fire hazard.
• Power Surge Consideration: For appliances with high initial power draw (e.g., heating appliances, laser printers, power tools, TVs), always select a transformer with a capacity significantly higher than the appliance's rated wattage. A general guideline is to leave at least a 100% slack for the transformer. For TVs, the power surge margin can be 3-5 times the wattage. For heating appliances, laser printers, and power tools, a transformer at least 3-4 times the item's capacity is recommended.
• Unplug When Not in Use: Disconnect the converter from the power source when not in use.
• Children and Pets: Keep the converter out of reach of children and pets.
• Servicing: Do not attempt to service the unit yourself. Refer all servicing to qualified personnel.

3. Product Features

• Maximum Capacity: 2300 Watt heavy-duty continuous use transformer.
• Voltage Conversion: Converts 110/120V to 220/240V, or 220/240V to 110/120V.
• Input Voltage Selector: Switch located on the back of the unit for selecting desired input voltage.
• Power Outlets: Four (4) outlets on the front of the unit, compatible with 3-prong or 2-prong US plugs and 2-prong Euro/Asian plugs.
• Power Cord: Insulated, hard-wired power cord with a grounded European Schuko plug, also suitable for Asian outlets.
• Safety Features: Fuse protected for overload protection.
• Indicator Lamp: On/Off switch with an indicator lamp.
• Construction: Heavy-duty metal casing for durability.
• Portability: Equipped with an attached handle for easy transport.

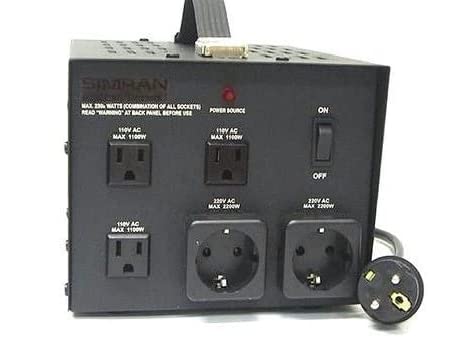

Image 1: Front view of the Simran VCT VT-2300R Voltage Converter Transformer, showing the four outlets and power switch.

4. Setup Instructions

1. Unpack the Unit: Carefully remove the converter from its packaging. Inspect for any signs of damage.
2. Placement: Place the converter on a stable, flat surface in a dry, well-ventilated area, away from direct sunlight, heat sources, and moisture. Ensure adequate space around the unit for air circulation.
3. Select Input Voltage: Locate the voltage selector switch on the back of the unit. Set the switch to match the voltage of the power outlet you will be plugging the converter into (e.g., if your wall outlet is 110V, set the switch to 110V). Incorrect voltage selection can damage the unit and connected appliances.
4. Connect Appliances: Plug your foreign appliance(s) into the appropriate outlets on the front of the converter. Ensure the total wattage of all connected appliances does not exceed the converter's maximum capacity of 2300 Watts, taking into account surge requirements as detailed in the Safety Information section.
5. Connect to Power Source: Plug the converter's hard-wired power cord into a suitable wall outlet.

5. Operating Instructions

1. Power On: After ensuring all connections are secure and the input voltage is correctly selected, press the On/Off switch on the front of the unit. The indicator lamp will illuminate, signifying that the converter is active.
2. Appliance Operation: Turn on your connected appliance(s).
3. Power Off: When you are finished using the converter, turn off all connected appliances, then press the On/Off switch on the converter to power it down. The indicator lamp will turn off.
4. Disconnect: For prolonged periods of non-use, unplug the converter from the wall outlet.

Important Note on Load Calculation: Always calculate the total wattage of all appliances you intend to connect. For appliances with motors, heating elements, or high initial current draw, refer to the "Power Surge Consideration" in the Safety Information section (Section 2) to ensure you select a transformer with adequate capacity. Underestimating power requirements can lead to converter failure and potential damage to your appliances.

6. Maintenance

• Cleaning: Disconnect the converter from the power source before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
• Storage: Store the converter in a cool, dry place when not in use.
• Fuse Replacement: The unit is fuse protected. If the converter stops functioning, the fuse may have blown due to an overload. Refer to qualified service personnel for fuse inspection and replacement. Do not attempt to replace the fuse yourself unless you are qualified to do so. Always replace with a fuse of the same type and rating.

7. Troubleshooting

• Converter Not Turning On:
  • Ensure the power cord is securely plugged into a live wall outlet.
  • Check if the wall outlet itself is functioning (test with another appliance).
  • Verify the On/Off switch is pressed to the 'On' position.
  • A blown internal fuse may be the cause. Contact qualified service personnel.
• Connected Appliance Not Working:
  • Confirm the appliance is properly plugged into the converter.
  • Check the appliance's own power switch.
  • Ensure the converter's input voltage selector is set correctly for your wall outlet.
  • Verify that the total wattage of connected appliances does not exceed the converter's capacity, especially considering surge requirements.
• Converter Overheating:
  • Immediately disconnect the converter and all appliances.
  • Ensure the converter is in a well-ventilated area and its vents are not blocked.
  • Reduce the load by disconnecting some appliances, ensuring the total wattage is well within the converter's capacity.
  • If overheating persists with appropriate load and ventilation, discontinue use and contact service personnel.

8. Specifications

Note: Specifications are subject to change without notice.

9. Warranty and Support

Specific warranty details for the Simran VCT VT-2300R Voltage Converter Transformer are not provided within the available product information. For warranty inquiries, please refer to your purchase documentation or contact the retailer where the product was purchased.

Official customer support contact information is not provided in the available product data. For technical assistance or further questions, please consult the vendor or manufacturer's official website if available.
