Product Overview
The Eaton 19587-010 Posi Unit is a high-performance limited-slip differential component designed for 1964-81 GM Trucks. This unit features 30-spline axles and is compatible with 8.875" diameter ring gears, specifically for 2.76-3.42 gear ratios (3-Series). It incorporates Carbon Friction Technology for enhanced performance and is engineered to prevent wheel slip, ensuring improved traction. The unit is automatic and fully rebuildable with a specially formulated clutch kit.

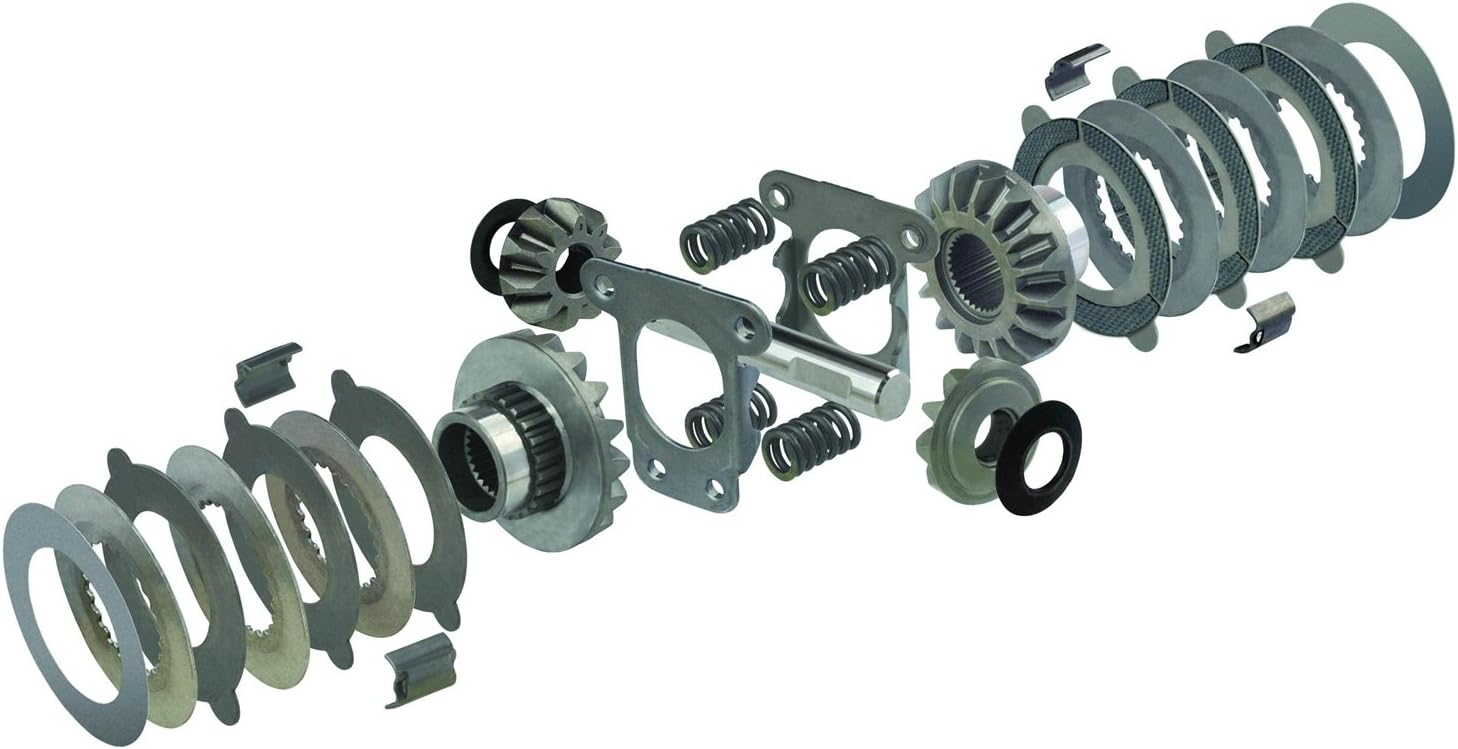

Figure 1: Exploded view of the Eaton 19587-010 Posi Unit components. This image illustrates the various internal parts including the differential gears, springs, clutch plates, and other associated hardware, providing a clear understanding of the unit's construction.
Installation Guide
Proper installation is crucial for the optimal performance and longevity of your Eaton Posi Unit. It is recommended that installation be performed by a qualified automotive technician.
Required Tools and Materials:
- Standard automotive tools (wrenches, sockets, torque wrench)
- Differential fluid (compatible with limited-slip differentials)
- Gasket or RTV sealant for differential cover
- Bearing puller (if replacing bearings)
- Shop rags and cleaning supplies
Installation Steps:
- Preparation: Safely lift and support the vehicle. Drain the old differential fluid and remove the differential cover.
- Remove Old Differential: Disconnect axle shafts and remove the existing differential assembly from the axle housing.
- Inspect Housing: Clean the axle housing thoroughly, removing any old gasket material or debris. Inspect for wear or damage.
- Install New Posi Unit: Carefully install the Eaton 19587-010 Posi Unit into the axle housing. Ensure proper alignment with the ring gear.
- Bearing Installation (if applicable): If new bearings are being installed, ensure they are pressed on correctly.
- Backlash and Preload Adjustment: Adjust backlash and bearing preload according to vehicle manufacturer specifications. This step is critical and often requires specialized tools and knowledge.
- Reassemble: Reconnect axle shafts. Apply new gasket or RTV sealant to the differential cover and reattach it, torquing bolts to specification.
- Fill with Fluid: Fill the differential with the recommended amount and type of limited-slip compatible differential fluid.
- Final Checks: Lower the vehicle and perform a test drive to ensure proper operation and check for leaks.
Operation
The Eaton 19587-010 Posi Unit is a limited-slip differential designed to improve traction by distributing power to both drive wheels. Unlike open differentials, which send power to the wheel with the least resistance (often leading to wheel spin), the Posi Unit uses a clutch-based system to transfer torque to the wheel with better traction.
During normal driving conditions, the unit operates smoothly, allowing for differential wheel speeds during turns. When one wheel begins to lose traction, the internal clutch pack engages, limiting slip and ensuring that power is delivered to the wheel with grip. This results in enhanced vehicle control and performance, especially in low-traction environments.
Maintenance
Regular maintenance is essential to ensure the longevity and optimal performance of your Eaton Posi Unit.
- Fluid Changes: Adhere to your vehicle manufacturer's recommended differential fluid change intervals. Always use a high-quality, limited-slip compatible differential fluid.
- Inspection: Periodically inspect the differential housing for leaks, especially around the cover and axle seals. Address any leaks promptly.
- Noise Check: Listen for unusual noises coming from the differential, such as whining, clunking, or grinding, which could indicate wear or damage.
- Rebuilds: The Eaton Posi Unit is fully rebuildable. If performance degrades or significant wear is detected, consult a qualified technician for a rebuild using a genuine Eaton clutch kit.
Troubleshooting
| Symptom | Possible Cause | Solution |
|---|---|---|
| Chattering or binding during turns | Incorrect or insufficient differential fluid; worn clutch pack. | Verify fluid type and level, add friction modifier if necessary, or consider clutch pack replacement. |
| Excessive wheel spin on one side | Clutch pack wear or failure; incorrect installation. | Inspect and replace clutch pack; re-evaluate installation. |
| Unusual noise (whining, grinding) | Low fluid level; worn bearings or gears; improper backlash. | Check fluid level; inspect internal components for wear; verify backlash settings. Professional inspection recommended. |
Specifications
- Model Number: 19587-010
- Application: 1964-81 GM Truck
- Axle Spline Count: 30-Spline
- Ring Gear Diameter: 8.875 inches
- Compatible Gear Ratios: 2.76-3.42 (3-Series)
- Technology: Carbon Friction Technology
- Design: Automatic/Rebuildable
Warranty and Support
For specific warranty information regarding the Eaton 19587-010 Posi Unit, please refer to the documentation provided with your purchase or visit the official Eaton website.
For technical support, installation assistance, or to locate an authorized service center, please contact Eaton customer service or visit their official support channels.
Eaton Official Website: www.eaton.com
