MoMi SAN 3-Wheel Children's Scooter Instruction Manual

1. Introduction

Thank you for choosing the MoMi SAN 3-Wheel Children's Scooter. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your scooter. Please read this manual thoroughly before first use and retain it for future reference. This scooter is designed for children over 3 years of age with a maximum body weight of 50 kg.

2. Safety Information

• Always wear a helmet and protective gear (knee pads, elbow pads) when riding the scooter.
• Adult supervision is required at all times, especially for young children.
• Do not ride on public roads, uneven surfaces, or near stairs, hills, or water.
• Ensure all locking mechanisms are securely fastened before each ride.
• Check the brake function, wheel condition, and handlebar tightness before each use.
• The maximum weight capacity for this scooter is 50 kg.
• Avoid riding in wet conditions or at high speeds.
• LED wheels illuminate when in motion; however, additional lighting may be required in low-light conditions.

3. Package Contents

The MoMi SAN 3-Wheel Children's Scooter package includes:

• 1 x MoMi SAN Kick Scooter
• 1 x Instruction Manual

4. Setup

4.1. Unfolding the Scooter

The scooter comes pre-assembled in a folded state. To unfold:

1. Place the scooter on a flat, stable surface.
2. Locate the folding mechanism button near the base of the handlebar stem.
3. Press the button and gently pull the handlebar stem upwards until it locks into the upright position. Ensure you hear a click, indicating it is securely locked.

Image 4.1: Unfolding the scooter. Press the button and lift the handlebar stem until it locks securely.

4.2. Adjusting Handlebar Height

The handlebar can be adjusted to three different height levels (60 cm, 66 cm, 72 cm) to suit the rider's height.

1. Locate the quick-release clamp on the handlebar stem.
2. Open the quick-release clamp.
3. Press the spring-loaded pin on the handlebar stem and slide the handlebar to the desired height.
4. Ensure the pin snaps into one of the three adjustment holes.
5. Close the quick-release clamp firmly to secure the handlebar in place.

Image 4.2: Adjusting the handlebar height. Ensure the quick-release clamp is securely closed after adjustment.

4.3. Pre-Ride Checks

Before each ride, perform the following checks:

• Verify that the handlebar is securely locked at the desired height.
• Check that the folding mechanism is fully engaged and locked.
• Inspect the wheels for any damage or excessive wear.
• Test the foot brake to ensure it functions correctly.
• Ensure all screws and fasteners are tight.

5. Operating Instructions

5.1. Riding the Scooter

To ride the MoMi SAN scooter:

1. Place one foot firmly on the scooter deck.
2. Use the other foot to push off the ground, gaining momentum.
3. Once moving, place both feet on the deck, one behind the other, or side-by-side if comfortable.

Image 5.1: Proper riding stance on the MoMi SAN scooter.

5.2. Steering

The MoMi SAN scooter uses a lean-to-steer mechanism. To turn:

• Lean your body in the direction you wish to turn.
• The handlebar will tilt, and the front wheels will pivot, guiding the scooter.
• Avoid sharp turns at high speeds.

5.3. Braking

The scooter is equipped with a pedal brake located above the rear wheel.

• To slow down or stop, gently press your foot down on the pedal brake.
• Apply steady pressure; avoid sudden, hard braking to prevent loss of balance.

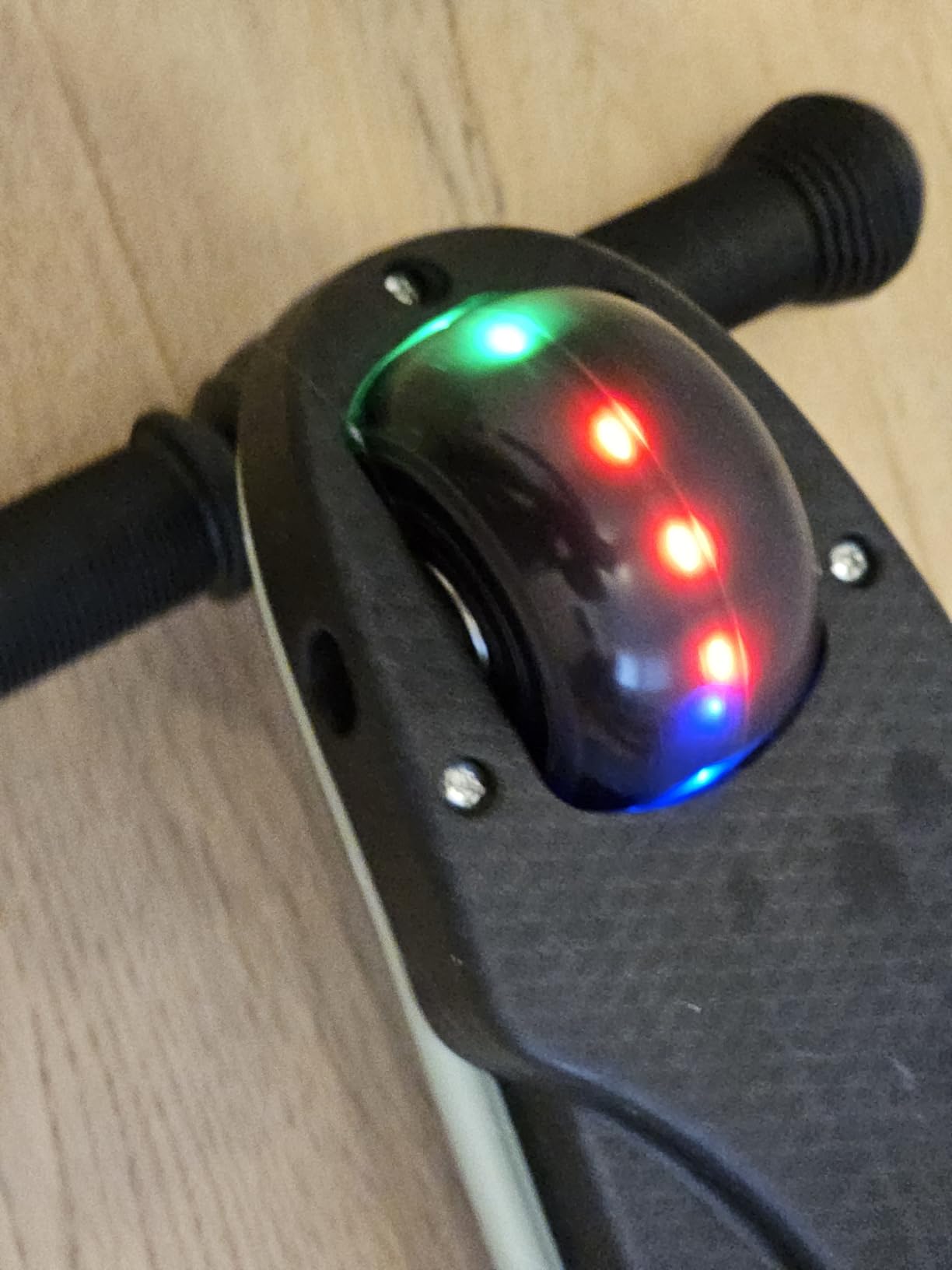

5.4. LED Wheels Operation

The front and rear wheels are equipped with integrated LEDs that illuminate automatically when the wheels are in motion. No batteries are required for the LED lights as they are powered by kinetic energy.

5.5. Folding for Storage or Transport

To fold the scooter for compact storage or transport:

1. Ensure the handlebar is at its lowest adjustment setting.
2. Locate the folding mechanism button at the base of the handlebar stem.
3. Press the button and gently push the handlebar stem downwards until it folds parallel to the deck.
4. Ensure the mechanism is fully engaged to prevent accidental unfolding.

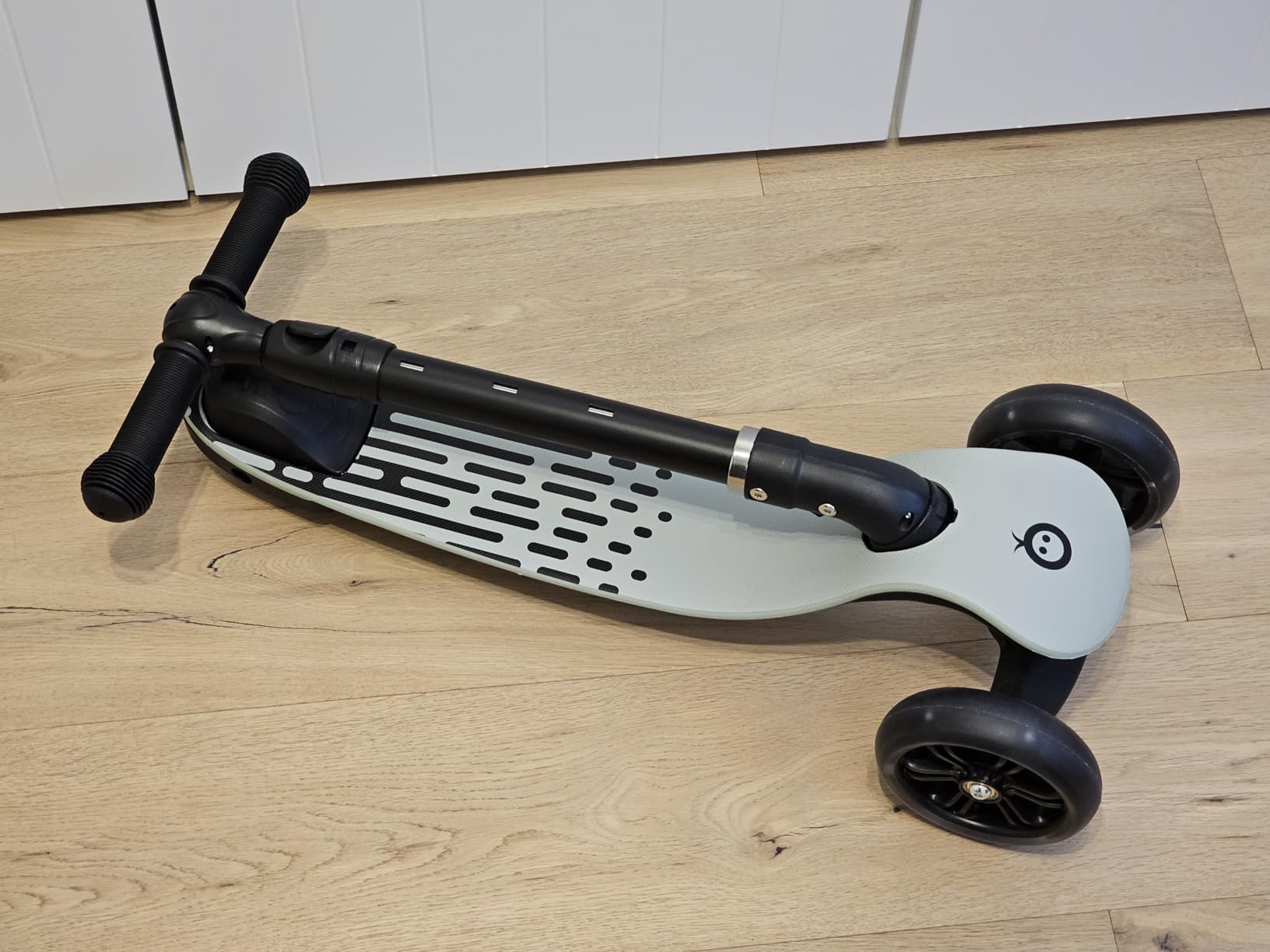

Image 5.5: The scooter folded for easy carrying and storage.

6. Maintenance

6.1. Cleaning

Clean the scooter regularly with a damp cloth and mild soap. Avoid using harsh chemicals or abrasive cleaners. Do not hose down the scooter or immerse it in water.

6.2. Wheel and Bearing Care

• Regularly check the wheels for wear and tear. Replace them if they show significant damage.
• The ABEC-7 bearings are designed for durability. If wheels become stiff or noisy, they may require cleaning or replacement. Consult a professional if unsure.
• Keep wheels free from dirt, sand, and debris.

6.3. General Inspection

Periodically inspect all parts of the scooter, including the frame, handlebar, brake, and folding mechanism, for any signs of damage, loose parts, or excessive wear. Tighten any loose screws. Do not use the scooter if any part is damaged or broken.

7. Troubleshooting

7.1. Scooter Does Not Fold/Unfold Smoothly

• Issue: The folding mechanism is stiff or difficult to operate.
• Solution: Ensure the button is fully depressed. Check for any debris obstructing the mechanism. Apply a small amount of silicone-based lubricant if necessary, avoiding contact with wheels or brake.

7.2. Handlebar Slips Down After Adjustment

• Issue: The handlebar does not stay at the selected height.
• Solution: Ensure the spring-loaded pin is fully engaged in one of the adjustment holes. Tighten the quick-release clamp firmly. If the clamp is too loose, adjust the tension screw on the opposite side of the clamp.

7.3. LED Wheels Not Lighting Up

• Issue: The LED lights in the wheels are not illuminating when riding.
• Solution: Ensure the scooter is moving at a sufficient speed for the kinetic energy to activate the lights. Check if any debris is lodged in the wheel bearings, which might prevent smooth rotation.

7.4. Brake Not Effective

• Issue: The foot brake does not effectively slow down or stop the scooter.
• Solution: Inspect the brake pad for wear. If worn, it may need replacement. Ensure no dirt or oil is on the braking surface of the wheel or the brake pad.

8. Specifications

9. Warranty and Support

The MoMi SAN 3-Wheel Children's Scooter comes with a 2-year warranty from the date of purchase, covering manufacturing defects. This warranty does not cover damage caused by misuse, neglect, accidents, unauthorized modifications, or normal wear and tear.

For warranty claims, technical support, or replacement parts, please contact your retailer or the manufacturer, TelForceOne S.A., directly. Please have your proof of purchase and model number (HULA00016) available when contacting support.

Manufacturer: TelForceOne S.A.
