1. Introduction
This manual provides essential information for the proper use and care of your Invicta Men's I-Force Left Handed Quartz Watch, Model 3332. This timepiece features a black stainless steel case, a black dial with luminous hands, a Japanese quartz movement, and a black leather strap. It is designed for durability and functionality, including chronograph features and water resistance up to 100 meters.

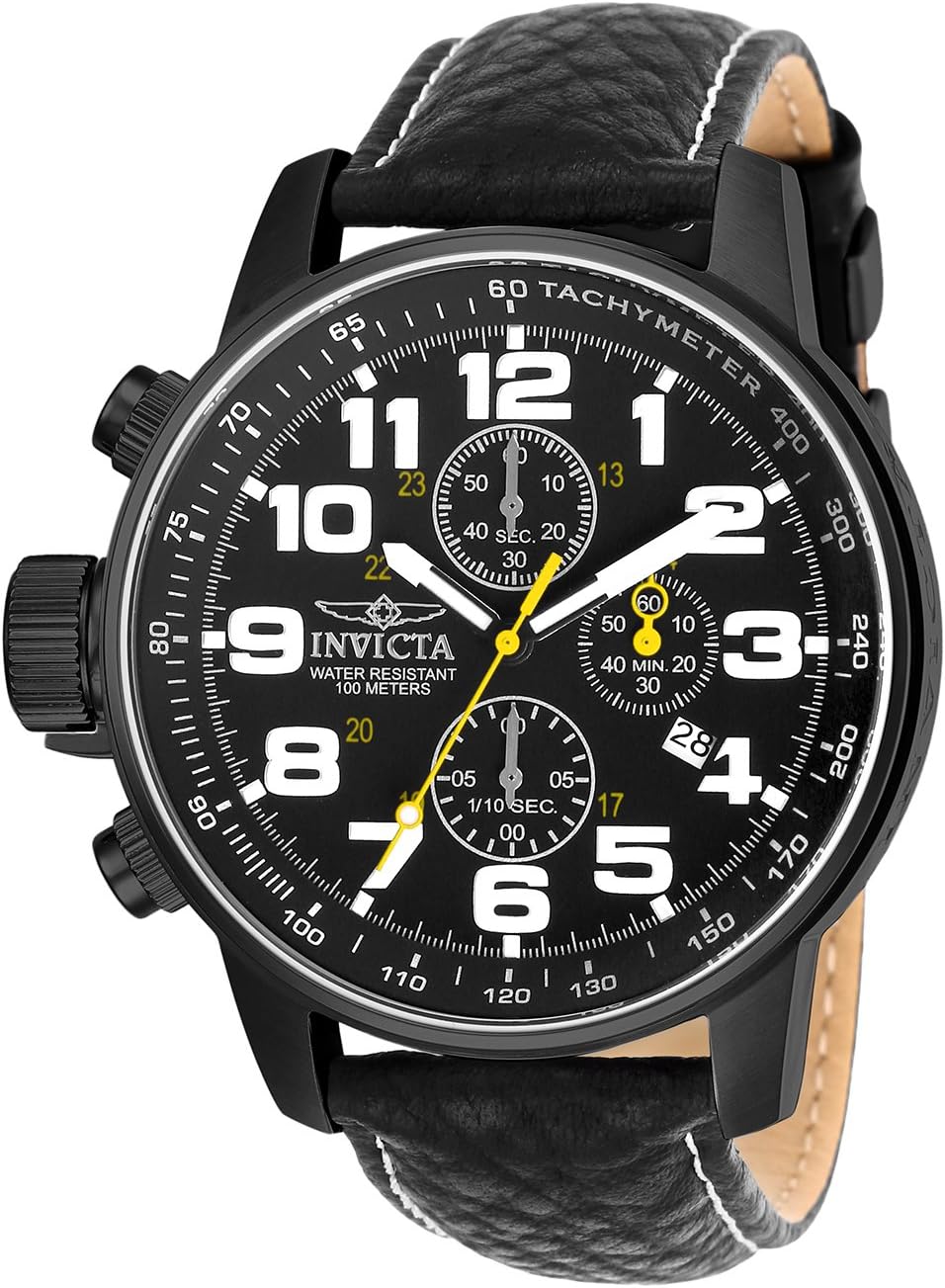

Figure 1: Front view of the Invicta Men's I-Force Left Handed Quartz Watch Model 3332.
2. Setup
2.1 Setting the Time and Date
Your watch is equipped with a Japanese quartz movement (VD57 Caliber). To set the time and date:
- Time Adjustment: Pull the crown (located on the left side of the watch case) out to the second click position. Rotate the crown to adjust the hour and minute hands to the desired time. Push the crown back in to the normal position to start the watch.
- Date Adjustment: Pull the crown out to the first click position. Rotate the crown to set the correct date. Push the crown back in to the normal position. Avoid setting the date between 9 PM and 3 AM, as this may interfere with the date change mechanism.
2.2 Changing Watch Straps
The watch comes with a black leather band. If you have additional compatible straps, you can change them using a spring bar tool (not included). Carefully depress the spring bar on each side of the strap to release it from the watch lugs. Insert the new strap by aligning the spring bars with the holes in the lugs and releasing them to secure the strap.
Figure 2: Detail of the buckle clasp and premium leather band.
3. Operating the Chronograph
The Invicta Model 3332 features a chronograph function for measuring elapsed time. The functional subdials include 60-minute, 60-second, and 12-hour counters.
- Start/Stop: Press the top pusher button to start the chronograph. Press it again to stop.
- Reset: While the chronograph is stopped, press the bottom pusher button to reset all chronograph hands to zero.
Figure 3: Illustration of timekeeping and date display features.
4. Maintenance
4.1 General Care
- Clean your watch regularly with a soft, dry cloth to remove dust and dirt.
- Avoid exposing the watch to extreme temperatures, direct sunlight for prolonged periods, or strong magnetic fields.
- The leather strap should be kept dry and away from excessive moisture to prevent damage and prolong its life.
4.2 Water Resistance
This watch is water resistant to 100 meters (10 ATM). This makes it suitable for recreational surfing, swimming, snorkeling, sailing, and water sports. It is not suitable for diving. Ensure the crown is fully pushed in before any water exposure.
Figure 4: Water resistance guidelines for 100M watches.
4.3 Battery Replacement
The watch uses an SR920SW battery, which is included. When the watch stops running or the second hand starts skipping, it indicates a low battery. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and maintain water resistance.
5. Troubleshooting
- Watch Not Running: Check if the crown is fully pushed in. If the watch still does not run, the battery may need replacement.
- Date Not Changing: Ensure the date is not being set during the automatic change period (9 PM to 3 AM). If the issue persists, consult a technician.
- Water Inside the Watch: If you notice condensation or water inside the watch, immediately take it to a qualified technician. Do not attempt to open the watch yourself, as this will void the warranty and compromise water resistance.
6. Specifications
| Feature | Detail |
|---|---|
| Case Material | Black Stainless Steel |
| Case Diameter | 46mm |
| Case Thickness | 12.6mm |
| Dial Color | Black |
| Hands | Luminous |
| Movement | Japanese Quartz, VD57 Caliber |
| Battery | SR920SW (included) |
| Watch Weight | 100 grams |
| Band Material | Black Leather |
| Band Dimensions | 210mm L x 22mm W |
| Clasp Type | Buckle |
| Crystal Type | Mineral |
| Crown | Push/Pull (Left-Handed) |
| Bezel | Stationary Black Stainless Steel |
| Functional Subdials | 60min, 60sec, 12hr |
| Water Resistance | 100 meters |
Figure 5: Key features of the Invicta 3332 watch.
7. Product Video
Watch this video for a detailed overview of the Invicta Men's 3332 Force Collection Stainless Steel Left-Handed Watch with Black Leather Band.
Video 1: Invicta Men's 3332 Force Collection Watch Overview.
8. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your watch or visit the official Invicta website. It is recommended to register your product for warranty purposes.
