Danco 94008 1-1/2-by-16" End Outlet Waste Pipe User Manual

Product Overview

The Danco 94008 1-1/2-by-16" End Outlet Waste Pipe is designed for use in tubular sink drain applications. This component facilitates the connection of a sink drain to the main waste line, ensuring efficient water drainage.

Key features include:

• Durable plastic construction for longevity.
• 1-1/2 inch diameter and 16 inch length, suitable for standard applications.
• Slip-joint connection for easy assembly to a tailpiece or direct connection to strainers.
• Commonly used with kitchen, laundry, or bathroom sinks.
• Designed as a bowl end center outlet waste drainage pipe, ideal for kitchen sinks.

Image: The Danco 94008 1-1/2-by-16" End Outlet Waste Pipe, showing its white PVC construction.

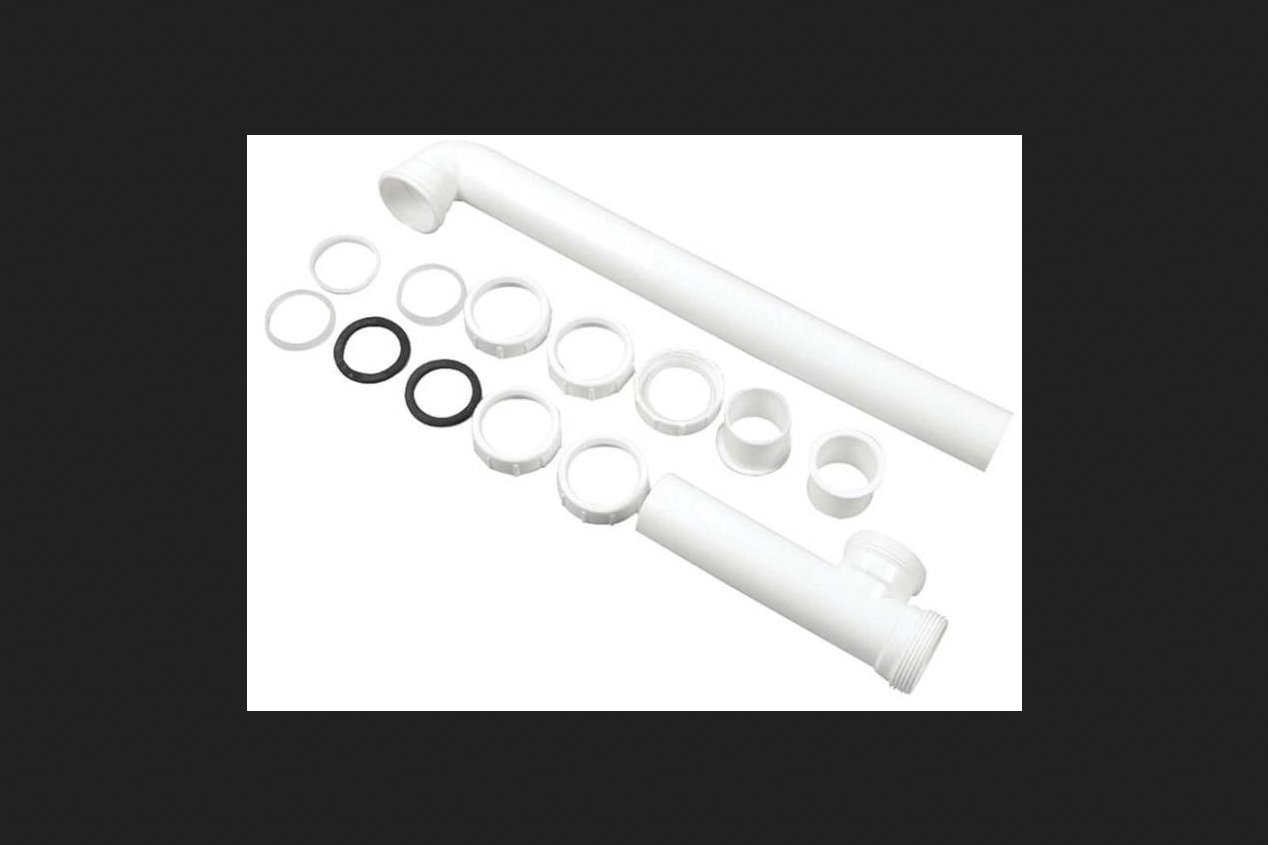

Image: Various components of the Danco 94008 End Outlet Waste Pipe, including the pipe sections, slip-joint nuts, and washers, laid out on a white background.

Installation Instructions

The Danco 94008 End Outlet Waste Pipe features a slip-joint connection for straightforward installation. Basic plumbing tools such as a wrench or pliers may be required.

1. Preparation: Ensure the water supply to the sink is turned off. Clear the area under the sink for access.
2. Remove Old Components (if applicable): Carefully disconnect and remove any existing waste pipe components. Have a bucket ready to catch any residual water.
3. Assemble Slip-Joint Connections: Place the slip-joint nuts and washers onto the pipe sections as required. The washers create a watertight seal when compressed.
4. Connect to Tailpiece/Strainer: Attach one end of the Danco 94008 pipe to the sink's tailpiece or directly to the strainer assembly. Hand-tighten the slip-joint nut initially.
5. Connect to Main Waste Line: Connect the other end of the Danco 94008 pipe to the main waste line or P-trap assembly. Ensure all connections are aligned properly.
6. Tighten Connections: Once all components are in place and aligned, use a wrench or pliers to gently tighten all slip-joint nuts. Avoid over-tightening, which can damage plastic components.
7. Test for Leaks: Turn on the water supply and fill the sink. Remove the stopper and observe all connections for any signs of leaks. If leaks occur, tighten the affected connection slightly until the leak stops.

For optimal performance, ensure all washers are correctly seated and connections are snug but not excessively tight.

Operation

The Danco 94008 End Outlet Waste Pipe functions as a passive drainage component. Once installed, it directs wastewater from the sink basin into the plumbing system. No active user operation is required beyond ensuring the sink drain is clear and free of obstructions.

Maintenance

Regular maintenance helps ensure the longevity and proper function of your Danco 94008 End Outlet Waste Pipe.

• Regular Inspection: Periodically check all connections for signs of leaks, drips, or corrosion. Address any issues promptly.
• Prevent Clogs: Avoid pouring grease, coffee grounds, or large food particles down the drain. Use a sink strainer to catch debris.
• Cleaning: If a clog occurs, try using a plunger or a plumbing snake. Avoid harsh chemical drain cleaners, as they can potentially damage plastic pipes over time. For minor clogs, a mixture of baking soda and vinegar followed by hot water can be effective.
• Tighten Connections: If minor leaks develop, gently tighten the slip-joint nuts. Do not overtighten.

Troubleshooting

Here are solutions to common issues you might encounter with your end outlet waste pipe:

Issue: Leaks at Connections

• Cause: Loose slip-joint nut, improperly seated washer, or damaged washer.
• Solution: Gently tighten the slip-joint nut. If the leak persists, disassemble the connection, inspect the washer for damage, ensure it is correctly seated, and replace if necessary.

Issue: Slow Drainage or Clog

• Cause: Accumulation of hair, food particles, grease, or other debris within the pipe.
• Solution: Try using a plunger. If unsuccessful, carefully disassemble the slip-joint connections to access the pipe interior and remove the obstruction manually. A plumbing snake can also be used.

Issue: Odors from Drain

• Cause: Accumulation of organic matter in the pipe or a dry P-trap.
• Solution: Clean the pipe as described for clogs. Ensure the P-trap always contains water to prevent sewer gases from entering the home. Run water regularly in seldom-used sinks.

Specifications

Warranty Information

Specific warranty details for the Danco 94008 End Outlet Waste Pipe are not provided in this manual. For information regarding product warranty, please refer to the packaging or contact Danco customer support directly. Generally, Danco products are manufactured to high standards and are expected to be free from defects in material and workmanship under normal use.

Customer Support

If you have any questions, require assistance with installation, or need to report a product issue, please contact Danco customer support. You can typically find contact information on the product packaging or by visiting the official Danco website.
