Rival Electric Food Grinder Model 2275-WN Instruction Manual

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before operating the appliance.
• To protect against electrical shock, do not immerse the motor base, cord, or plug in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.
• The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Do not use appliance for other than intended household use.
• Always ensure the appliance is properly assembled before use.
• Never feed food by hand. Always use the food pusher provided.
• Be careful when handling the cutting blade and grinding plates as they are sharp.

Product Overview

The Rival Electric Food Grinder Model 2275-WN is designed to efficiently grind various foods, including meats, nuts, vegetables, and fruits. It features a powerful 200-watt motor and comes with multiple attachments for versatile use.

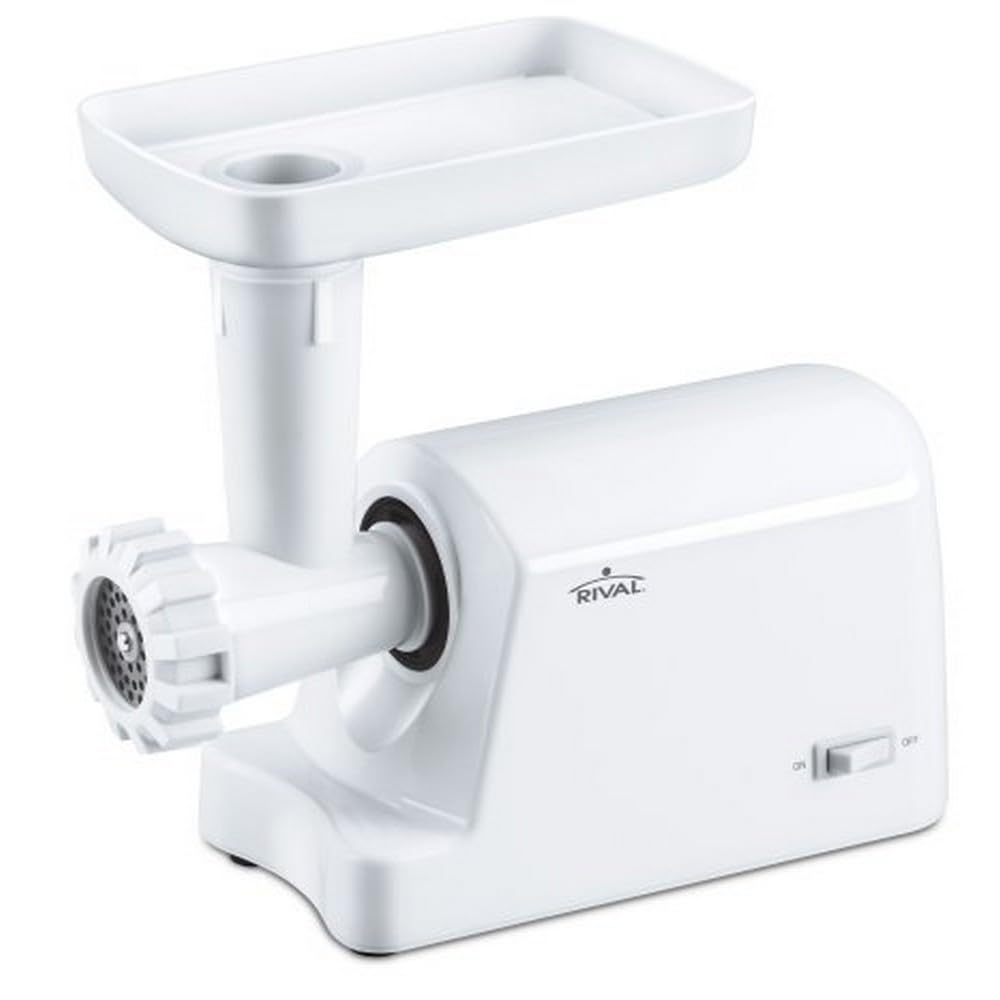

Image: The Rival Electric Food Grinder, Model 2275-WN, showing its overall dimensions. The unit is white and includes a hopper, grinding head, and motor base. It measures approximately 14.5 inches in height, 9 inches in length, and 7 inches in width.

Key Features:

• 200-watt electric motor for efficient grinding.
• Includes coarse and fine grinding disks for varied textures.
• Sausage stuffer attachment for making homemade sausages.
• Detachable grinding chute and parts for easy cleaning.
• Suitable for grinding meats, nuts, vegetables, and fruits.

Assembly and Setup

Before first use, wash all detachable parts in warm, soapy water. Rinse thoroughly and dry completely. Ensure the motor base is unplugged from the electrical outlet before assembly.

1. Attach the Grinding Head: Insert the grinding head into the motor base opening. Rotate it counter-clockwise until it locks securely into place.
2. Insert the Worm Gear: Place the worm gear into the grinding head, ensuring the square end fits into the motor drive shaft.
3. Position the Cutting Blade: Place the cutting blade onto the worm gear shaft with the sharp edges facing outwards, towards the grinding plate.
4. Select and Attach Grinding Plate: Choose either the coarse or fine grinding plate. Place it over the cutting blade, aligning the notch on the plate with the tab on the grinding head.
5. Secure with Locking Ring: Screw the locking ring onto the grinding head until it is hand-tight. Do not overtighten.
6. Place the Hopper: Position the food hopper on top of the grinding head.
7. Sausage Stuffer Assembly (Optional): If making sausages, attach the sausage stuffer cone to the grinding head after the worm gear and before the locking ring, replacing the cutting blade and grinding plate.

Operating Instructions

Ensure the grinder is assembled correctly and placed on a stable, flat surface. Prepare food by cutting it into pieces small enough to fit into the hopper opening.

1. Prepare Food: Cut meat, vegetables, or fruits into small cubes or strips that can easily pass through the hopper. Remove any bones, tough tendons, or large pieces of fat from meat.
2. Place Receptacle: Position a bowl or container under the grinding head to collect the ground food.
3. Plug In: Plug the power cord into a standard electrical outlet.
4. Turn On: Flip the ON/OFF switch to the "ON" position.
5. Feed Food: Gently place prepared food into the hopper. Use the food pusher to guide the food down into the grinding mechanism. Never use your fingers or any other utensil to push food into the grinder.
6. Grinding Process: The grinder will process the food. Do not overload the unit. If the motor strains or jams, turn off the unit immediately, unplug it, and clear any blockages.
7. Turn Off: Once grinding is complete, flip the ON/OFF switch to the "OFF" position and unplug the appliance from the outlet.

Tips for Best Results:

• For grinding meat, chill the meat and grinder parts (grinding head, worm gear, blade, plate) in the freezer for 15-30 minutes before grinding. This helps prevent smearing and ensures cleaner cuts.
• When making baby food, use the fine grinding plate for a smoother consistency.
• For sausage making, ensure the meat is well-chilled and use the sausage stuffer attachment.

Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your Rival Electric Food Grinder.

1. Unplug: Always ensure the grinder is unplugged from the electrical outlet before cleaning.
2. Disassemble: Disassemble all removable parts: hopper, locking ring, grinding plate, cutting blade, worm gear, and grinding head.
3. Wash Parts: Wash all detachable parts in warm, soapy water. The detachable hopper and other parts are dishwasher-safe. For best results and to prevent rust on metal parts (like the cutting blade and grinding plates), hand wash and dry immediately.
4. Clean Motor Base: Wipe the motor base with a damp cloth. Do not immerse the motor base in water or any other liquid.
5. Dry Thoroughly: Ensure all parts are completely dry before reassembling or storing. Metal parts, especially the grinding plates and blade, are prone to rust if not dried properly. Applying a thin layer of food-grade mineral oil to metal parts after drying can help prevent rust during storage.
6. Storage: Store the assembled or disassembled grinder in a dry place.

Troubleshooting

If you encounter issues with your food grinder, refer to the following common problems and solutions:

Specifications

Warranty and Support

The Rival Electric Food Grinder Model 2275-WN comes with a 1-year warranty against defects. For warranty claims, technical support, or replacement parts, please contact Rival customer service.

Manufacturer: Rival

Please refer to the original purchase documentation or the manufacturer's website for the most current contact information and detailed warranty terms.
