Kelty Cache Hauler Frame Instruction Manual

Introduction

The Kelty Cache Hauler Frame is engineered for comfortably transporting substantial loads. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your Cache Hauler Frame. Please read these instructions thoroughly before use to ensure optimal performance and longevity of your product.

Setup and Adjustment

Proper adjustment of the Cache Hauler Frame is crucial for comfort and load stability.

1. Waistbelt Adjustment: Position the padded waistbelt so it rests comfortably on your hips, bearing the majority of the load. Secure the buckle and tighten the straps until the belt is snug but not restrictive.
2. Belt Stabilizers: Adjust the belt stabilizer straps, located on the sides of the waistbelt, to pull the bottom of the frame closer to your body. This helps prevent the load from swaying.
3. Shoulder Straps and Load-Lifters: Put on the frame. Adjust the shoulder straps so the frame sits high enough on your back. Then, tighten the load-lifter straps, located above your shoulders, to pull the top of the frame closer to your body. This transfers some weight from your shoulders to your hips and stabilizes the upper load.
4. Sternum Strap: Fasten and adjust the sternum strap across your chest. This strap helps to pull the shoulder straps inward, preventing them from slipping off your shoulders and distributing weight more evenly across your chest.
5. Scherer Cinch System: The Scherer cinch system is designed for efficient compression and securing of your load. Utilize these straps to tightly secure items to the frame, minimizing movement during transport.

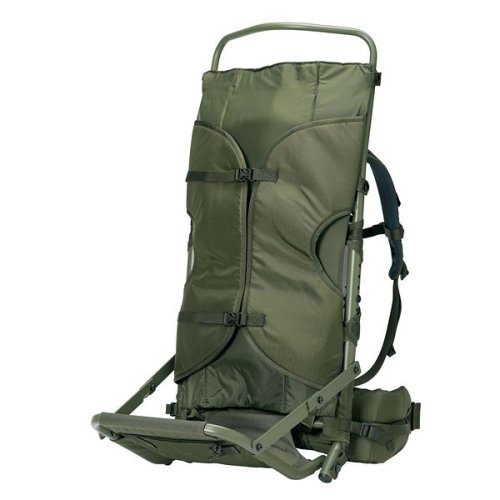

Image: Front view of the Kelty Cache Hauler Frame, illustrating the main components including the padded waistbelt, shoulder straps, and frame structure.

Operating Instructions

The Cache Hauler Frame is designed to carry large, bulky, or irregularly shaped items.

• Loading the Frame: Place your gear onto the frame, ensuring that heavier items are positioned closer to your back and higher up for better balance. Distribute the weight evenly.
• Securing the Load: Use the integrated straps and the Scherer cinch system to firmly secure your load to the frame. Ensure there is no excessive movement or shifting of items. Loose loads can cause instability and discomfort.
• Walking with a Load: When carrying heavy loads, maintain good posture. Walk with a steady, deliberate pace. Use trekking poles for added stability on uneven terrain.

Maintenance

Proper care will extend the life of your Kelty Cache Hauler Frame.

• Cleaning: For general cleaning, wipe the frame and straps with a damp cloth and mild soap. Rinse thoroughly.
• Washing Instructions: If a deeper clean is required, the nylon components can be machine washed cold. Use a gentle cycle and mild detergent.
• Drying: Always line dry the frame. Do not use a machine dryer or apply heat, as this can damage the nylon material and structural components.
• Storage: Store the frame in a cool, dry place away from direct sunlight when not in use.

Troubleshooting

If you encounter issues with your Cache Hauler Frame, consider the following:

• Discomfort or Pressure Points: Re-evaluate all strap adjustments (waistbelt, shoulder, load-lifter, sternum). Ensure the waistbelt is carrying the primary load and that load-lifters are properly tensioned. Adjust until the frame feels balanced and comfortable.
• Load Shifting or Instability: Ensure all items are tightly secured to the frame using the Scherer cinch and other straps. Reposition heavier items closer to your back and centered.
• Squeaking Noises: Check all buckles and connection points for proper seating. A small amount of lubricant on pivot points (if applicable and accessible) might help, but generally, ensure components are clean and free of debris.

Specifications

Warranty and Support

For information regarding warranty coverage or to obtain support for your Kelty Cache Hauler Frame, please refer to the official Kelty website or contact Kelty customer service directly. Keep your purchase receipt as proof of purchase.

Visit Kelty's Official Website
