1. Introduction
This manual provides essential information for the proper installation and maintenance of your ACDelco GM Original Equipment PF122 Engine Oil Filter. Designed to meet rigorous standards, this filter helps ensure a clean supply of oil to your engine's components, contributing to optimal engine performance and longevity. Please read these instructions carefully before proceeding with installation.
2. Safety Information
Always prioritize safety when performing automotive maintenance. Failure to follow safety precautions can result in injury or damage to your vehicle.
- Engine Temperature: Allow the engine to cool completely before beginning work. Hot engine components and oil can cause severe burns.
- Eye Protection: Always wear appropriate eye protection to shield against splashes of oil or other fluids.
- Hand Protection: Wear gloves to protect your hands from hot surfaces, sharp edges, and automotive fluids.
- Vehicle Support: If lifting the vehicle, ensure it is securely supported on jack stands on a level surface. Never rely solely on a jack.
- Fluid Disposal: Dispose of used engine oil and oil filters responsibly according to local environmental regulations. Do not pour used oil down drains or onto the ground.
- Vehicle Manual: Always consult your vehicle's owner's manual or service manual for specific oil capacity, oil type, and torque specifications.
3. Product Overview
The ACDelco GM Original Equipment PF122 is a cartridge-style engine oil filter designed to effectively remove abrasive particles from engine oil. This helps protect critical engine components such as bearings from wear.

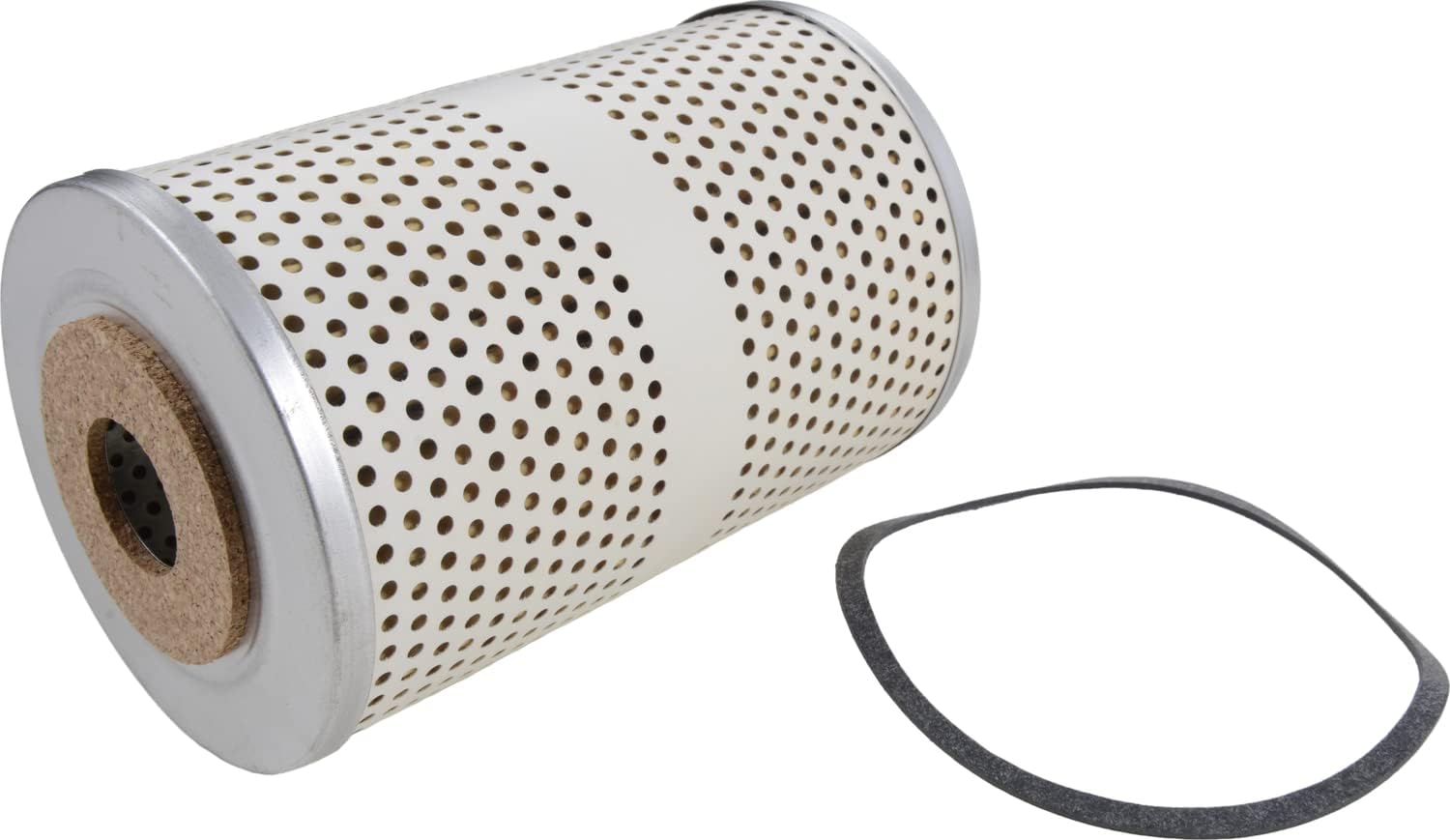

This image displays the ACDelco GM Original Equipment PF122 engine oil filter, which is a cartridge-style filter. It features a perforated metal core surrounding the filter media, designed to capture contaminants. A black sealing gasket is shown alongside the filter, essential for a leak-free installation.
This image provides a cross-section view of an oil filter element, emphasizing the internal structure. It highlights the use of a glass-filled nylon core, which contributes to higher strength and improved oil flow compared to traditional filter designs. This design allows for efficient capture of particles down to 30 microns.
4. Installation Instructions
Follow these steps for proper installation of the ACDelco GM Original Equipment PF122 Engine Oil Filter. Refer to your vehicle's service manual for specific procedures and torque specifications.
Tools and Materials Required:
- New ACDelco GM Original Equipment PF122 Oil Filter
- New engine oil (correct type and quantity for your vehicle)
- Oil filter wrench (specific to your vehicle's filter housing)
- Socket wrench and appropriate sockets
- Drain pan
- Clean rags or shop towels
- Funnel
- Torque wrench (recommended)
- Safety glasses and gloves
Procedure:
- Prepare Vehicle: Park the vehicle on a level surface and engage the parking brake. Allow the engine to cool down completely.
- Locate Filter Housing: Identify the oil filter housing on your engine. This is typically a canister that houses the cartridge filter.
- Drain Oil (if applicable): If performing an oil change, place the drain pan under the oil pan drain plug. Remove the drain plug and allow all old oil to drain. Once drained, reinstall the drain plug and tighten to the manufacturer's specified torque.
- Remove Filter Housing: Place the drain pan under the oil filter housing. Using the appropriate oil filter wrench or socket, carefully loosen and remove the oil filter housing cap. Be prepared for residual oil to drain out.
- Remove Old Filter: Carefully remove the old oil filter cartridge and any old O-rings or gaskets from the housing cap and the engine block.
- Clean Housing: Thoroughly clean the inside of the oil filter housing and the housing cap with a clean rag to remove any debris or old oil residue.
- Install New Gasket: Lubricate the new sealing gasket(s) provided with the new filter with a small amount of fresh engine oil. Install the new gasket(s) onto the filter housing cap and/or filter housing as specified by your vehicle's manual.
- Install New Filter: Insert the new ACDelco GM Original Equipment PF122 filter cartridge into the housing, ensuring it seats correctly.
- Reinstall Housing Cap: Carefully thread the oil filter housing cap back into place. Hand-tighten first, then use the wrench to tighten to the vehicle manufacturer's specified torque. Do not overtighten, as this can damage the housing or gasket.
- Refill Engine Oil: If you drained the engine oil, refill the engine with the correct type and quantity of new engine oil through the oil filler cap.
- Check for Leaks: Start the engine and let it run for a few minutes. Turn off the engine and check the oil level. Inspect the oil filter housing and drain plug for any signs of leaks. If leaks are present, turn off the engine immediately and re-check installation.
5. Maintenance and Replacement
The ACDelco GM Original Equipment PF122 oil filter is designed for optimal performance when replaced at regular intervals.
- Replacement Interval: Always follow your vehicle manufacturer's recommended oil and filter change intervals. These intervals are typically found in your vehicle's owner's manual.
- Driving Conditions: Consider your driving conditions. Severe driving conditions (e.g., frequent short trips, towing, extreme temperatures, dusty environments) may require more frequent oil and filter changes.
- Oil Quality: Using high-quality engine oil that meets your vehicle's specifications is crucial for filter effectiveness and engine protection.
6. Troubleshooting
If you encounter issues after installing your oil filter, consider the following common problems and solutions:
- Oil Leakage:
- Cause: Improperly seated or damaged gasket, overtightened or undertightened filter housing cap, debris on sealing surface.
- Solution: Turn off the engine. Inspect the gasket for proper seating and damage. Ensure the sealing surface on the engine block and housing cap is clean. Re-tighten the housing cap to the manufacturer's specified torque.
- Incorrect Fit:
- Cause: Incorrect filter part number for your vehicle.
- Solution: Double-check the ACDelco PF122 part number against your vehicle's requirements. Consult your vehicle's owner's manual or a reputable parts catalog.
7. Specifications
Key specifications for the ACDelco GM Original Equipment PF122 Engine Oil Filter:
| Specification | Detail |
|---|---|
| Brand | ACDelco |
| Model Number | PF122 |
| OEM Part Number | 05572128 |
| Product Dimensions (L x W x H) | 7 x 4.1 x 4 inches |
| Item Weight | 8.8 ounces |
| Vehicle Service Type | Car, Truck |
| Product Grade | Performance Part |
This diagram illustrates the internal components of a typical ACDelco Ultragard Premium spin-on oil filter. Key parts include the leaf load spring, relief valve, cellulose/synthetic blend filter media, tin-plated metal end caps, high-strength spiral louvered core, high-temperature anti-drainback valve, and high-temperature nitrile sealing gasket. While the PF122 is a cartridge filter, this image provides insight into the general construction principles of ACDelco filters.
8. Warranty and Support
ACDelco GM Original Equipment parts are backed by General Motors and designed to meet stringent quality standards. For specific warranty information or technical support, please refer to the official ACDelco website or contact ACDelco customer service. Always retain your proof of purchase.
For further assistance, you may visit the official ACDelco store: ACDelco Store on Amazon
