Gerber Gear Suspension 12-in-1 Multi-Plier Multitool Instruction Manual

1. Introduction

The Gerber Suspension Multi-Plier is a versatile 12-in-1 multitool designed for various tasks. It features a durable stainless steel construction and an open-frame design for comfortable handling. This manual provides instructions for safe operation, maintenance, and understanding the features of your multitool.

Package Contents:

• Gerber Suspension Multi-Plier (Model 22-01471)
• Nylon Sheath

2. Product Features and Components

The Gerber Suspension Multi-Plier integrates 12 essential tools into a compact design. Each tool is designed for specific functions and can be securely locked into place during use.

Tool List:

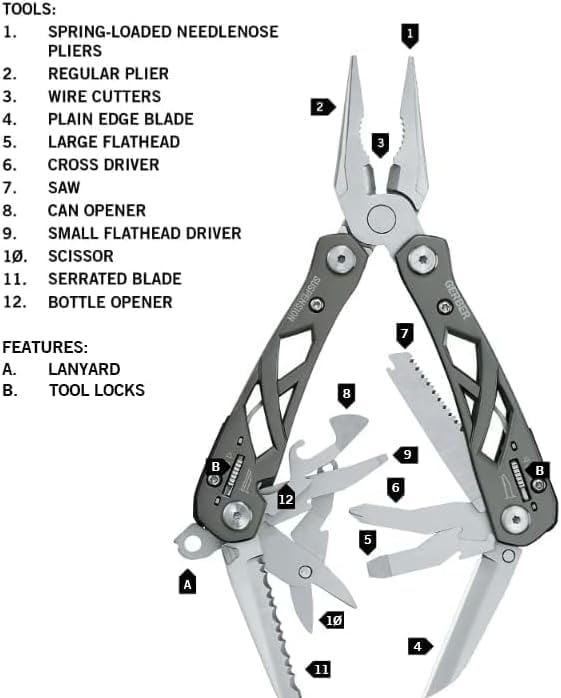

1. Spring-Loaded Needlenose Pliers: For precision gripping and manipulating small objects.
2. Regular Pliers: For general gripping and holding tasks.
3. Wire Cutters: Integrated into the pliers for cutting various wires.
4. Plain Edge Blade: A sharp, straight edge for general cutting.
5. Large Flathead Screwdriver: For larger slotted screws.
6. Cross Driver (Phillips): For Phillips head screws.
7. Saw: For cutting wood or other fibrous materials.
8. Can Opener: For opening canned goods.
9. Small Flathead Screwdriver: For smaller slotted screws.
10. Scissors: For cutting paper, fabric, or other light materials.
11. Serrated Blade: A saw-like edge for cutting rope or tough materials.
12. Bottle Opener: For opening bottled beverages.

Key Features:

• Lanyard Hole: For attaching a lanyard or cord for secure carrying.
• Tool Locks (Saf.T.Plus System): Securely locks each tool in place when deployed, preventing accidental closure.
• Butterfly Opening: Allows for quick and easy deployment of the main pliers.

3. Setup

Unfolding the Multi-Plier:

1. Hold the multi-plier firmly with both hands.
2. Gently pull the two halves of the handle apart. The tool will open in a "butterfly" motion, revealing the pliers.
3. Ensure the pliers are fully extended and locked into position before use.

Accessing Individual Tools:

1. With the pliers open or closed, locate the desired tool along the handles.
2. Using your thumb or finger, carefully pull the tool outwards from its stored position until it clicks into place. This indicates the Saf.T.Plus lock is engaged.
3. To retract a tool, slide the lock-release button (labeled 'B' in Figure 2) back and fold the tool into its handle.

4. Operating Instructions

Always ensure tools are fully deployed and locked before use to prevent injury and ensure effective operation.

Using the Pliers:

• Unfold the multi-plier to expose the pliers.
• The spring-loaded mechanism will assist in opening the pliers.
• Use the needle nose tip for fine work and the regular plier section for general gripping.
• The wire cutters are located at the base of the plier jaws. Position the wire between the cutting edges and squeeze the handles firmly.

Using Blades and Saw:

• Carefully deploy the desired blade (plain edge or serrated) or saw until it locks.
• Always cut away from your body.
• The plain edge blade is suitable for general cutting tasks.
• The serrated blade is effective for cutting fibrous materials like rope or webbing.
• The saw is designed for cutting wood or plastic. Use a back-and-forth motion.

Using Screwdrivers:

• Select the appropriate flathead (large or small) or cross driver (Phillips) for the screw head.
• Ensure the screwdriver tip is fully seated in the screw head before applying torque.

Using Scissors:

• Deploy the scissors until they lock.
• Use for light cutting tasks such as paper, string, or small fabric pieces.

Using Can and Bottle Openers:

• Deploy the can opener or bottle opener until it locks.
• Follow standard procedures for opening cans or bottles.

5. Maintenance

Proper maintenance ensures the longevity and optimal performance of your Gerber Suspension Multi-Plier.

Cleaning:

• After each use, especially in wet or dirty conditions, clean the multi-plier.
• Use a damp cloth to wipe down all surfaces. For stubborn dirt, a small brush (like a toothbrush) can be used.
• Ensure all tools and pivot points are free of debris.
• Dry thoroughly before storage.

Lubrication:

• Periodically apply a small amount of light machine oil or specialized knife oil to the pivot points of the pliers and individual tools.
• Operate each tool a few times to distribute the oil.
• Wipe off any excess oil.

Sharpening:

• The plain edge blade can be sharpened using a standard knife sharpener. Maintain the original blade angle.
• Sharpening serrated blades requires a specialized sharpener or professional service.

Storage:

• Store the multi-plier in its included nylon sheath when not in use.
• Keep in a dry environment to prevent corrosion.

6. Troubleshooting

Tools are Stiff or Difficult to Open/Close:

• Cause: Accumulation of dirt, debris, or lack of lubrication.
• Solution: Clean the multi-plier thoroughly as described in the Maintenance section. Apply a small amount of lubricant to all pivot points.

Tools Do Not Lock Securely:

• Cause: Debris obstructing the locking mechanism or wear.
• Solution: Clean the locking mechanism area carefully. If the issue persists, contact Gerber customer support for assistance. Do not use a tool that does not lock securely.

Blades Are Dull:

• Cause: Regular use.
• Solution: Sharpen the plain edge blade using appropriate sharpening tools. For serrated blades, seek professional sharpening or use a specialized serrated blade sharpener.

7. Specifications

8. Warranty and Support

Warranty Information:

The Gerber Suspension Multi-Plier is backed by a Limited Lifetime Warranty in North America. For regions outside North America, a 25-year limited warranty applies. This warranty covers defects in materials and workmanship. For full details and terms, please refer to the official Gerber warranty policy or contact customer support.
