Simran AR-3000 3000-Watt Heavy Duty Voltage Transformer Converter with Built-in Regulator Stabilizer User Manual

1. Product Overview

The Simran AR-3000 is a versatile unit designed to function as both a voltage regulator/stabilizer and a step-up/step-down voltage transformer. It facilitates the conversion of 110/120V to 220/240V or 220/240V to 110/120V, supporting both 50Hz and 60Hz frequencies. Its integrated voltage regulator stabilizes fluctuating input voltages, ranging from AC 75V-130V or 180V-260V, to a consistent output of AC 110V ±4% or AC 220V ±4%. The unit has a maximum capacity of 3000 Watts, which includes allowances for power surges. Key features include an analog meter for precise output voltage monitoring, an on/off switch with an indicator lamp, and multiple outlets compatible with various international plug types.

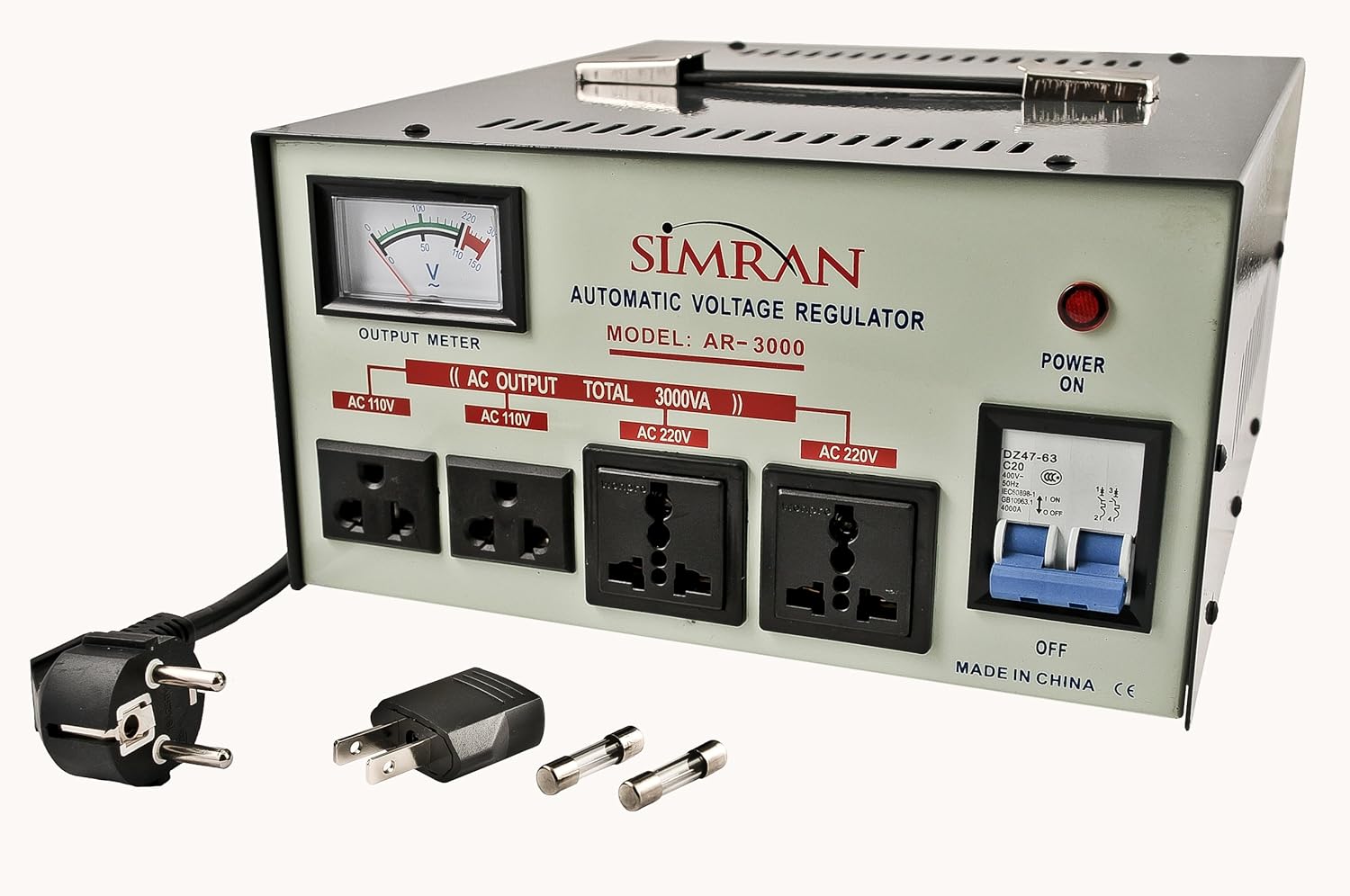

Image 1.1: Front view of the Simran AR-3000 Voltage Transformer Converter, displaying the output meter, AC 110V and AC 220V outlets, power switch, and included accessories like the European plug and US adapter.

2. Safety Information

Adherence to the following safety guidelines is crucial for safe operation and to prevent damage to the unit or connected appliances:

• Always place the unit on a stable, flat, and dry surface.
• Do not expose the unit to moisture, rain, or extreme temperatures.
• Ensure adequate ventilation around the unit to prevent overheating. Do not block air vents.
• Never overload the transformer. Always calculate the total wattage of all connected appliances. For heating appliances or motors (e.g., refrigerators, microwaves, power tools), allow a capacity of 3-4 times the appliance's rated wattage to account for startup surges. For other devices, allow at least a 100% slack (e.g., a 500W appliance requires a 1000W transformer).
• Do not open the unit's casing. Servicing should only be performed by qualified personnel.
• Disconnect the unit from the power source before cleaning or performing any maintenance.
• Keep out of reach of children.

3. Product Features

• Maximum Capacity: 3000 Watts (including power surge).
• Voltage Conversion: Converts 110/120V to 220/240V and 220/240V to 110/120V.
• Voltage Regulation: Built-in stabilizer regulates input AC 75V-130V or 180V-260V to stable output AC 110V ±4% or AC 220V ±4%.
• Frequency Compatibility: Operates with both 50Hz and 60Hz power sources.
• Output Monitoring: Analog meter on the front panel displays real-time output voltage.
• Power Control: On/off switch with an illuminated indicator lamp.
• Output Outlets: Two universal 220V outlets (accepts most international plugs) and two 110V outlets (accepts US 3-prong/2-prong and Euro/Asian 2-prong plugs).
• Power Cord: Insulated power cord hard-wired with a European Schuko plug.
• Construction: Heavy-duty metal casing for durability.
• Protection: Fuse protected with a built-in circuit breaker.
• Accessories: Includes two extra fuses and one plug adapter for US outlets.

4. Setup Instructions

4.1 Unpacking and Inspection

Carefully remove the Simran AR-3000 from its packaging. Inspect the unit for any signs of physical damage that may have occurred during transit. Retain the original packaging for future transport or storage.

4.2 Included Components

The package should contain the following items:

• Simran AR-3000 Voltage Transformer Converter
• 2 x Extra Fuses
• 1 x Plug Adapter (for US outlets)

4.3 Placement

Place the unit on a stable, dry, and level surface. Ensure there is sufficient space around the unit (at least 6 inches on all sides) to allow for proper air circulation and heat dissipation. Avoid placing it near heat sources or in direct sunlight.

4.4 Voltage Selection

Locate the input voltage selector switch on the back panel of the unit. This switch is critical as it determines the unit's operating mode (step-up or step-down).

Image 4.1: The input voltage selector switch, located on the rear of the unit, allows selection between 110V and 220V input.

• For 220V/240V Input (Step-Down): If your wall outlet provides 220V/240V power (common in many countries outside North America) and you intend to power 110V/120V appliances, set the switch to '220V'.
• For 110V/120V Input (Step-Up): If your wall outlet provides 110V/120V power (common in North America) and you intend to power 220V/240V appliances, set the switch to '110V'.

CRITICAL: Ensure this switch is set correctly BEFORE plugging the unit into a power source. Incorrect setting can severely damage the unit or any connected appliances.

4.5 Connecting to Power

Plug the unit's integrated power cord into a suitable wall outlet that matches the voltage selected on the input voltage selector switch. The unit comes with a European Schuko plug. If you are in a region with US-style outlets, use the provided plug adapter.

5. Operating Instructions

5.1 Powering On

After ensuring the unit is properly set up and connected to the power source, press the 'POWER ON' switch located on the front panel. The indicator lamp next to the switch will illuminate, signifying that the unit is active.

5.2 Monitoring Output

The analog meter on the front panel displays the real-time output voltage. This allows you to confirm that the voltage stabilization function is working and that the correct voltage is being supplied to your appliances.

5.3 Connecting Appliances

Connect your appliances to the appropriate output outlets on the front panel:

• For 220V/240V Appliances: Use the two universal 220V outlets. These are designed to accept plugs from most countries (excluding large South African plugs).
• For 110V/120V Appliances: Use the two 110V outlets. These accept standard 3-prong or 2-prong US plugs, as well as 2-prong Euro/Asian plugs.

5.4 Load Capacity Considerations

The Simran AR-3000 has a maximum capacity of 3000 Watts. It is crucial to manage the total wattage of all connected appliances to prevent overloading. For appliances that contain motors or heating elements (e.g., refrigerators, microwaves, power tools, laser printers), a significant power surge occurs at startup. For these types of devices, it is recommended to select a transformer with a capacity 3-4 times the appliance's rated wattage to safely accommodate these surges. For other electronic devices, allow at least a 100% slack (e.g., a 500W appliance should be connected to a transformer with at least 1000W capacity).

Image 5.1: Visual representation of the step-up and step-down voltage conversion capabilities of the unit.

5.5 Powering Off

To turn off the unit, press the 'POWER ON' switch to the 'OFF' position. It is advisable to disconnect all connected appliances before unplugging the transformer from the wall outlet.

6. Maintenance

6.1 Cleaning

Wipe the exterior of the unit with a dry, soft cloth. Do not use liquid cleaners, abrasive materials, or solvents, as these can damage the casing or internal components.

6.2 Fuse Replacement

The Simran AR-3000 is equipped with fuse protection and a built-in circuit breaker. If the unit ceases to function, first check the circuit breaker. If a fuse blows, it indicates an overload or fault. Replace the blown fuse with a new fuse of the exact same rating. Two extra fuses are included with your unit. Refer to the specifications section for the correct fuse type and rating.

6.3 Ventilation

Regularly ensure that the ventilation openings on the unit are clear of dust and obstructions to maintain proper airflow and prevent overheating.

7. Troubleshooting

If you encounter issues with your Simran AR-3000, refer to the following troubleshooting guide:

7.1 Unit Not Powering On

• Check if the power cord is securely plugged into a functional wall outlet.
• Verify that the wall outlet itself is live by testing it with another device.
• Ensure the 'POWER ON' switch on the front panel is pressed to the 'ON' position.
• Inspect the built-in circuit breaker and fuses. If a fuse is blown, replace it with a new one of the correct rating.

7.2 No Output Voltage

• Confirm that the unit is powered on and the indicator lamp is illuminated.
• Check the analog output meter for any voltage reading.
• Ensure the input voltage selector switch on the back of the unit is correctly set for your power source (110V or 220V).
• Verify that the connected appliance is functioning correctly by testing it directly with a suitable power source, if possible.

7.3 Overheating

• Ensure there is adequate ventilation around the unit and that all air vents are unobstructed.
• Reduce the total load connected to the transformer. The combined wattage of your appliances, especially considering surge requirements for motors/heating elements, might be exceeding the unit's 3000-Watt capacity.
• If overheating persists after reducing the load and ensuring ventilation, disconnect the unit immediately and contact customer support.

8. Specifications

9. Warranty and Support

9.1 Warranty Information

The Simran AR-3000 Voltage Transformer Converter is covered by a 30-day warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for any warranty claims.

9.2 Customer Support

For technical assistance, troubleshooting beyond this manual, or to inquire about warranty claims, please contact Simran customer support. Refer to the manufacturer's official website or the product packaging for the most current contact information.
