DEWALT DW8300 4-Inch 36 Grit Zirconia Angle Grinder Flap Disc Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of the DEWALT DW8300 4-Inch by 5/8-Inch 36 Grit Zirconia Angle Grinder Flap Disc. Please read and understand all instructions before operating the product. Proper use ensures optimal performance and user safety.

2. Safety Information

WARNING: To reduce the risk of injury, always follow these safety guidelines:

• Wear proper eye, face, body, and respiratory protection.
• Do not drop the flap disc.
• Comply with ANSI B7.1 and OSHA regulations for abrasive products.
• Do not exceed the maximum RPM marked on the wheel (15200 RPM).
• Use proper guards on your angle grinder.
• Ensure the flap disc is securely mounted before operation.
• Inspect the disc for damage before each use. Do not use damaged discs.

The DEWALT DW8300 flap disc is designed for use with compatible angle grinders. Always refer to your angle grinder's instruction manual for additional safety precautions and operating procedures.

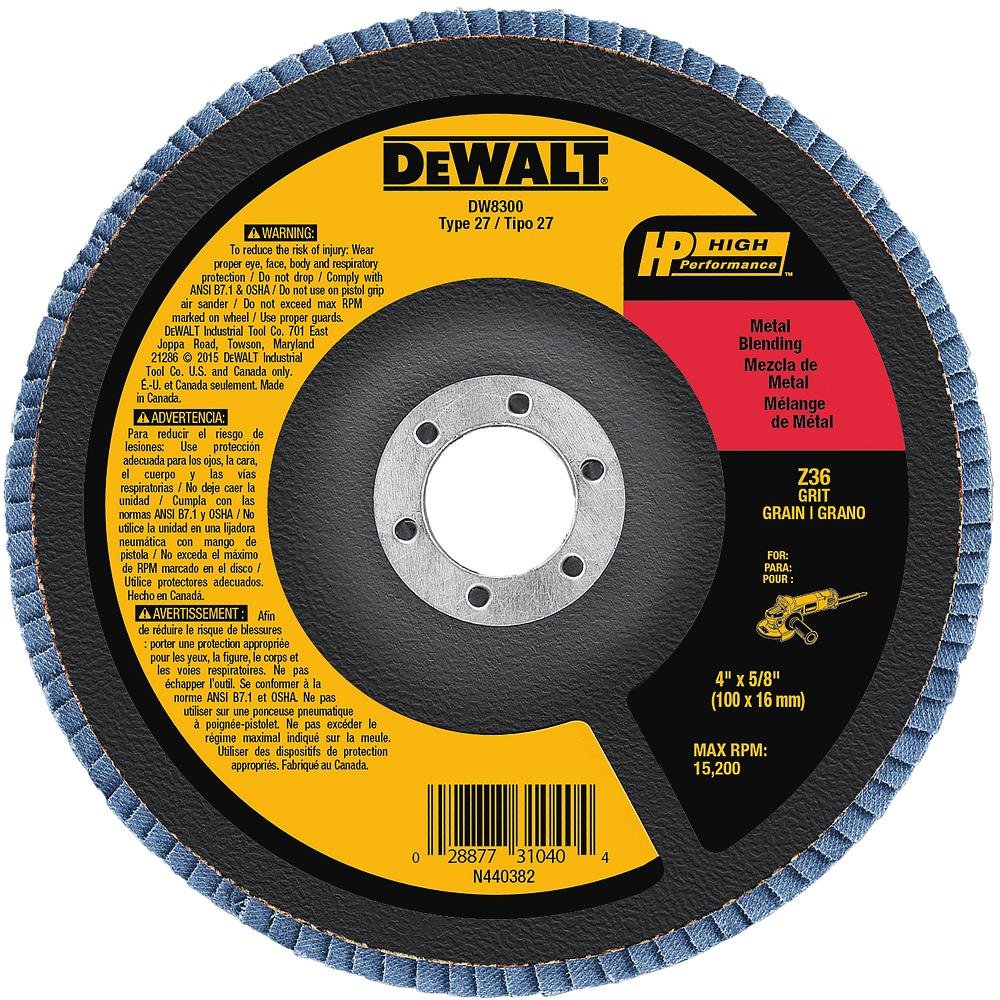

Image 2.1: DEWALT DW8300 Flap Disc showing product details and safety warnings. Note the maximum RPM and grit information.

3. Product Overview

The DEWALT DW8300 is a high-performance 4-inch by 5/8-inch 36 grit zirconia angle grinder flap disc. It is engineered for efficient material removal and extended lifespan in various grinding and finishing applications.

Key Features:

• Zirconia Grit: Enables up to 3 times faster material removal compared to traditional fiber resin metal sanding discs.
• Premium Abrasive Cloth: Provides up to 15 times longer life than standard fiber resin metal sanding discs.
• Type 27 Fiberglass Backing: Designed to provide an optimal grinding angle of 5-15 degrees for effective surface work.
• Versatile Application: Suitable for use on carbon steels, aerospace alloys, nickel alloys, aluminum, cast iron, and stainless steels.

4. Setup

Proper installation of the flap disc is crucial for safety and performance.

Installation Steps:

1. Ensure Power Tool is Off: Always disconnect the angle grinder from its power source before attempting to change accessories.
2. Inspect Disc and Grinder: Check the flap disc for any damage, cracks, or deformities. Ensure the angle grinder's spindle and flanges are clean and free from debris.
3. Mount the Disc: Place the DEWALT DW8300 flap disc onto the angle grinder's spindle, ensuring it sits flush against the inner flange. The 5/8-inch arbor hole should align correctly.
4. Secure with Outer Flange and Nut: Attach the outer flange and tighten the locking nut firmly using the appropriate wrench. Do not overtighten.
5. Check for Free Rotation: Once installed, manually rotate the disc to ensure it spins freely and is properly centered without wobbling.
6. Install Guard: Ensure the angle grinder's safety guard is correctly positioned and secured to protect against debris and sparks.

Always refer to your specific angle grinder's manual for detailed instructions on accessory installation.

5. Operating Instructions

Follow these guidelines for effective and safe operation of the DEWALT DW8300 flap disc.

General Operation:

• Maintain Proper Angle: For optimal performance and disc life, hold the angle grinder at a 5-15 degree angle relative to the workpiece surface. This utilizes the flap disc's design for efficient material removal.
• Apply Consistent Pressure: Use steady, moderate pressure. Excessive pressure can lead to premature wear, overheating, and reduced efficiency. Insufficient pressure may result in slow material removal.
• Move Continuously: Keep the disc moving across the workpiece to prevent localized heat buildup and uneven wear.
• Observe Maximum RPM: Do not exceed the maximum rotational speed of 15200 RPM. Operating above this speed can be dangerous and damage the disc.
• Workpiece Stability: Always secure the workpiece firmly to prevent movement during grinding.
• Ventilation: Work in a well-ventilated area to disperse dust and fumes generated during grinding.

6. Maintenance

Proper maintenance ensures the longevity and safe operation of your flap disc.

Care and Storage:

• Inspection: Before each use, visually inspect the flap disc for any signs of wear, damage, or cracks. Discard any disc that appears damaged.
• Cleaning: After use, gently brush off any accumulated debris or dust from the disc. Do not use harsh chemicals.
• Storage: Store flap discs in a dry, cool place, away from direct sunlight and moisture. Keep them in their original packaging or a protective container to prevent damage.
• Handling: Handle discs carefully to avoid dropping or impacting them, which can cause unseen damage.

7. Troubleshooting

If you encounter issues during operation, consider the following:

• Poor Material Removal: Ensure you are using the correct grinding angle (5-15 degrees) and applying consistent, moderate pressure. Check if the disc is worn out and needs replacement.
• Excessive Vibration: Verify that the flap disc is correctly mounted and securely tightened on the angle grinder. Ensure the disc is not damaged or warped.
• Premature Wear: This can be caused by excessive pressure, incorrect grinding angle, or using the disc on materials it is not designed for. Ensure the maximum RPM is not exceeded.
• Overheating: Move the disc continuously across the workpiece to prevent heat buildup. Reduce pressure if the disc or workpiece becomes excessively hot.

If problems persist, discontinue use and consult a qualified technician or DEWALT customer support.

8. Specifications

9. Warranty and Support

Warranty Information:

This DEWALT DW8300 Flap Disc comes with a 30 Day Money Back Guarantee. Please retain your proof of purchase for any warranty claims.

Customer Support:

For further assistance, technical support, or warranty inquiries, please contact DEWALT customer service or visit the official DEWALT website. Always refer to the contact information provided with your original product packaging or on the official brand website for the most current support details.
