Delphi FG0033 Fuel Pump Module User Manual

Introduction

The Delphi FG0033 Fuel Pump Module is a critical component designed to ensure optimal fuel delivery to your vehicle's engine. As a leading OE supplier, Delphi incorporates over 30 OE-proprietary innovations and 150 patents in its fuel module and pump designs. This module is engineered to restore fast-pressure performance and system integrity, providing efficient fuel pumping with reduced energy consumption. Key features include internal springs for enhanced durability and stability, a lower amperage draw to minimize load on the vehicle's electrical system, and a large volume reservoir for reliable performance in low-fuel conditions and during vehicle cornering. The fuel-level sensors are gold-filled for improved debris and wear resistance, ensuring accurate fuel gauge readings. An enhanced filtration system contributes to a longer pump life, and the OE-service body harness and connector facilitate superior performance, durability, and ease of installation.

Safety First

Working with fuel systems requires extreme caution. Always prioritize safety to prevent accidents and injuries. Adhere to the following safety guidelines:

• Have a fire extinguisher nearby and readily accessible.
• Never smoke or work near anything that could cause a spark or ignite fuel, such as pilot lights or incandescent light bulbs.
• Always wear safety glasses. Gloves are highly recommended for hand protection.
• Work in a well-ventilated area to prevent the buildup of hazardous fumes. Keep clean-up materials on hand and clean up any fuel spills immediately.
• Always relieve fuel pressure prior to opening fuel systems. Releasing fuel under pressure can cause fire and injury.
• Store fuel in an approved container, such as a gas caddy or a certified gas can.

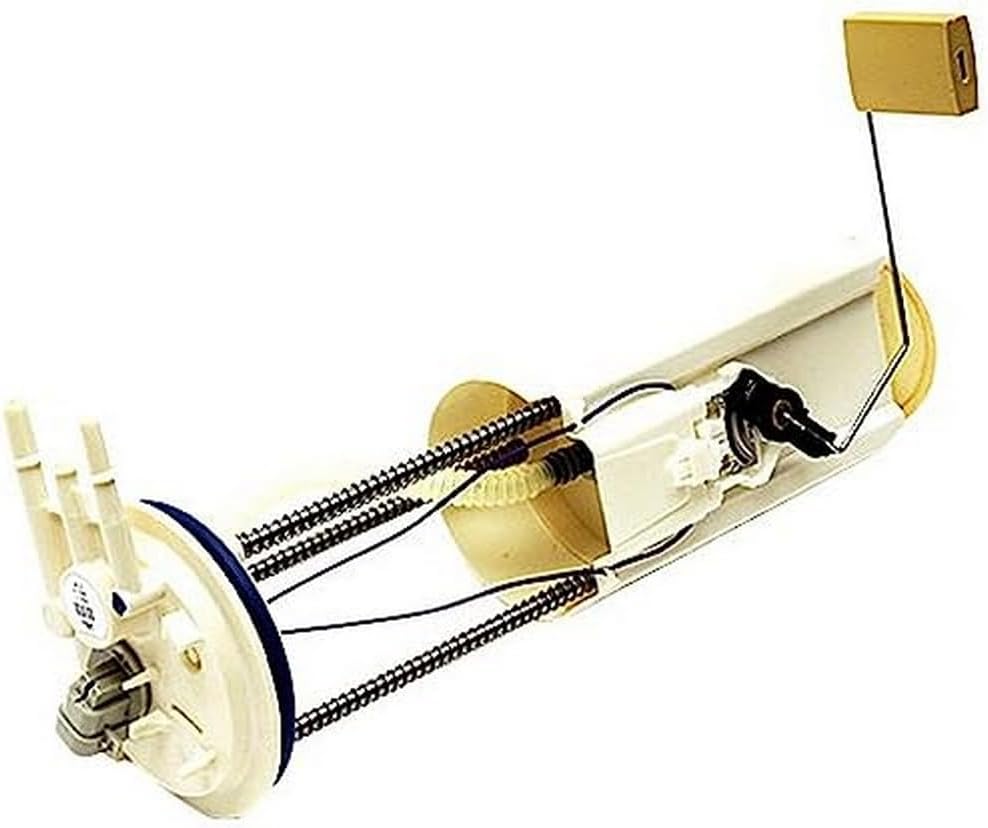

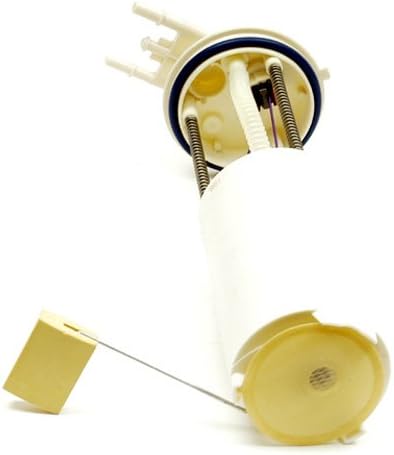

Product Overview

Installation and Setup

Connecting the Float Arm to the Fuel Pump Module

In some cases, the float arm for the fuel pump module may be packaged separately to prevent damage to the fuel sending unit and the float arm during shipping. Delphi takes great care to protect these parts during transit to avoid delays in repair due to damaged components. Follow these steps to properly attach the float arm:

1. Take the float arm, which is typically a thin metal rod with a float at one end and a wire end at the other.
2. Carefully insert the wire end of the float arm into the designated slot on the fuel sending unit. Ensure it aligns correctly.
3. Support both the fuel pump module and the float arm firmly to prevent bending or damage.
4. Push down firmly on the float arm until you hear or feel a distinct "snap." This indicates that the float arm is securely seated and connected to the sending unit.

Once connected, you will have an intact fuel pump module with a functional fuel level sender, ready for installation into the vehicle's fuel tank.

Operating Instructions

The Delphi FG0033 Fuel Pump Module operates automatically as part of your vehicle's fuel system. Once properly installed, it continuously supplies fuel to the engine's fuel injection system. No manual operation is required for this component during normal vehicle use. Ensure your vehicle's fuel tank always contains an adequate amount of fuel to prevent the pump from running dry, which can lead to premature wear and failure.

Maintenance

The Delphi FG0033 Fuel Pump Module is designed for long-term reliability and typically requires no routine maintenance. However, to ensure its longevity and optimal performance, consider the following:

• Fuel Quality: Always use high-quality fuel to prevent contaminants from entering the fuel system and potentially clogging the pump's internal filter.
• Fuel Level: Avoid consistently running your vehicle on a very low fuel level. The fuel itself helps cool and lubricate the pump, and running it dry can cause overheating and damage.
• Fuel Tank Cleanliness: If replacing an old fuel pump, it is highly recommended to inspect and clean the fuel tank to remove any debris or contaminants that could affect the new pump.
• System Checks: If you experience symptoms such as difficulty starting, engine misfires, or reduced fuel efficiency, consult a qualified mechanic to diagnose potential fuel system issues.

Troubleshooting

If you suspect an issue with your Delphi FG0033 Fuel Pump Module, consider the following common symptoms and potential causes. For complex issues, professional diagnosis and repair are recommended.

Always ensure proper diagnosis by a qualified professional before attempting repairs on fuel system components.

Specifications

Warranty and Support

Please note the following regarding warranty and support for your Delphi FG0033 Fuel Pump Module:

• Delphi products purchased through, from, or on Amazon do not qualify for Delphi’s standard LIMITED warranty.
• When purchased through, from, or on Amazon, any warranty on this product is offered by and is the sole responsibility of the seller identified on the shipment details of your order.
• Please review all warranties carefully and contact the identified seller for all warranty details and claims.
• An official Installation Manual is available in PDF format for detailed instructions: Installation Manual (PDF).
