SPT Sunpentown 1220F Magic Clean Replacement HEPA Filter with Activated Carbon

Product Overview

The SPT Sunpentown 1220F Magic Clean Replacement HEPA Filter with Activated Carbon is designed specifically for the AC-1220 air purifier. This dual-layer filter system is engineered to significantly improve indoor air quality by capturing a wide range of airborne contaminants.

Key Features

• Captures 99.5% of airborne pollutant particles as small as 0.3 microns.
• Integrated activated carbon filter for odor absorption.
• Effectively removes spores, pollen, mold, pet dander, and dust.
• Designed for optimal performance with the SPT AC-1220 air cleaner.

Setup and Installation

Proper installation of your replacement filter ensures optimal performance of your air purifier. Always refer to your AC-1220 air purifier's user manual for specific instructions on opening the unit and accessing the filter compartment.

1. Power Off: Before beginning, ensure your SPT AC-1220 air purifier is unplugged from the power outlet.
2. Access Filter Compartment: Locate and open the filter access panel on your AC-1220 unit. This typically involves unlatching or unscrewing a cover.
3. Remove Old Filter: Carefully remove the used HEPA and activated carbon filter assembly. Dispose of the old filter responsibly according to local regulations.
4. Install New Filter: Insert the new SPT 1220F replacement filter into the compartment. Ensure it is oriented correctly, with the HEPA filter (white pleated side) facing the direction indicated in your air purifier's manual, and the activated carbon filter (black side) positioned as required. The filter should fit snugly.
5. Close Compartment: Securely close the filter access panel.
6. Restore Power: Plug the air purifier back into the power outlet.

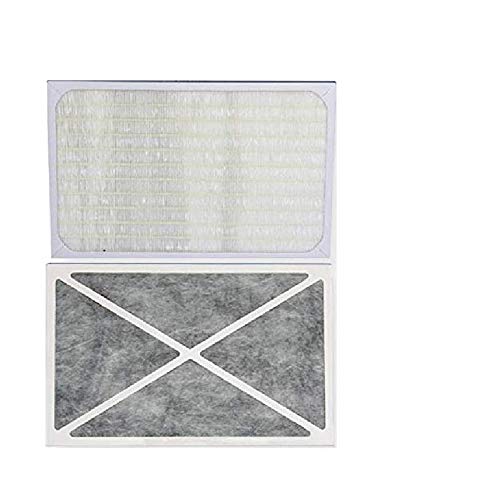

An image showing the SPT Sunpentown 1220F Magic Clean Replacement HEPA Filter. The top part displays the white pleated HEPA filter, while the bottom part shows the black activated carbon filter with a white 'X' pattern for structural support.

Operating Considerations

Once the new filter is installed, your SPT AC-1220 air purifier is ready for operation. The filter works continuously to clean the air as the unit runs. No specific operational adjustments are required for the filter itself.

• Ensure the air purifier is placed in an area with good air circulation.
• Avoid blocking the air intake or output vents of the air purifier.
• For optimal air purification, operate the unit regularly, especially in areas with high pollutant levels or odors.

Maintenance and Filter Replacement

The lifespan of your HEPA and activated carbon filter depends on usage and air quality. Regular replacement is crucial for maintaining the efficiency of your air purifier.

• Filter Life: The SPT 1220F filter typically lasts between 6 to 12 months under normal operating conditions. Heavily polluted environments or continuous use may require more frequent replacement.
• Indicators: Your AC-1220 air purifier may have a filter replacement indicator light. Consult your air purifier's manual for details.
• Performance Decline: Signs that the filter needs replacement include decreased airflow, increased noise from the unit, or a noticeable return of odors or allergens.
• Cleaning: The HEPA and activated carbon filter is not washable. Attempting to wash it will damage the filter media and reduce its effectiveness.
• Replacement Procedure: Follow the
