Oster 6292 Counterforms 1500-Watt 6-Slice Toaster Oven User Manual

Introduction

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Oster 6292 Counterforms 1500-Watt 6-Slice Toaster Oven. Please read all instructions thoroughly before first use and retain this manual for future reference.

Important Safeguards

WARNING: To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions:

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, turn any control to "OFF", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversized foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the toaster oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not place any materials other than manufacturer's recommended accessories in this oven when not in use.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, and similar products.
• Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
• Extreme caution should be exercised when removing tray or disposing of hot grease.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating a risk of electric shock.

Product Overview

The Oster 6292 Counterforms Toaster Oven is a versatile kitchen appliance designed for various cooking tasks. Familiarize yourself with its components before operation.

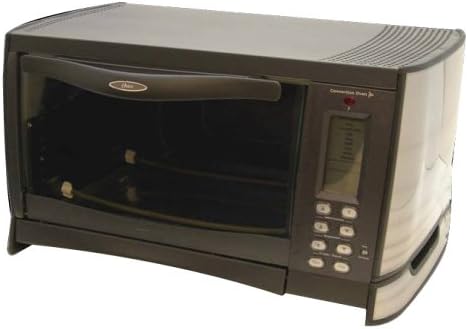

This image displays the Oster 6292 Counterforms 1500-Watt 6-Slice Toaster Oven from a front-right angle. It features a dark grey exterior, a clear glass door with a handle, and a digital control panel on the right side. The interior shows two heating elements and a rack position.

Key Components:

• Oven Door: Clear glass door for viewing cooking progress.
• Handle: Ergonomic handle for opening and closing the door.
• Control Panel: Digital display and buttons for selecting functions, temperature, and time.
• Heating Elements: Upper and lower elements for even cooking.
• Oven Rack: Adjustable rack for various cooking needs.
• Baking Pan: For baking and roasting.
• Broiler Tray: Used for broiling.
• Removable Crumb Tray: Located at the bottom for easy cleaning of crumbs.
• Interior Light: Illuminates the oven interior during operation.

Setup

1. Unpacking: Carefully remove all packaging materials, including any protective films or stickers. Ensure all accessories (rack, baking pan, broiler tray, crumb tray) are present.
2. Placement: Place the toaster oven on a stable, level, heat-resistant surface. Ensure there is adequate clearance (at least 4 inches) on all sides and above the oven for proper ventilation. Do not place near flammable materials.
3. Initial Cleaning: Before first use, wipe the exterior with a damp cloth. Wash the oven rack, baking pan, and broiler tray in warm, soapy water. Dry thoroughly. Wipe the interior with a damp cloth.
4. First Use (Burn-Off): It is recommended to operate the oven empty for approximately 15 minutes on the "Bake" setting at 450°F (232°C) to burn off any manufacturing residues. Some smoke or odor may be present; this is normal and will dissipate. Ensure the area is well-ventilated.
5. Power Connection: Plug the power cord into a standard 120V AC electrical outlet.

Operating Instructions

Your Oster 6292 Toaster Oven offers multiple cooking functions. Follow these steps for general operation:

1. Prepare Food: Place food on the appropriate accessory (rack, baking pan, or broiler tray).
2. Insert Accessories: Slide the rack and pan into the desired rack position within the oven. Close the oven door securely.
3. Select Function: Use the control panel to select your desired cooking function (Bake, Convection Bake, Broil, Dehydrate, Toast, Bagel, Pizza).
4. Set Temperature: Adjust the temperature using the dedicated controls. The temperature range is 150°F to 450°F (65°C to 232°C).
5. Set Time: Set the cooking time using the timer controls. The oven features an auto shut-off function once the set time expires.
6. Start Cooking: Press the Start button to begin the cooking cycle. The interior light will illuminate, allowing you to monitor progress.
7. Monitor and Remove: Periodically check food for doneness. When cooking is complete, the oven will beep and shut off. Carefully open the door and use oven mitts to remove hot food and accessories.

Specific Functions:

• Bake: Ideal for general baking, such as casseroles, cookies, and cakes.
• Convection Bake: Uses a fan to circulate hot air, resulting in faster and more even cooking, often preferred for roasting and baking.
• Broil: For browning food, melting cheese, or cooking thin cuts of meat. Use the broiler tray to catch drips.
• Dehydrate: Low-temperature setting for drying fruits, vegetables, or making jerky.
• Toast: Specifically designed for toasting bread, bagels, and frozen waffles. Adjust toast shade as desired.
• Bagel: Toasts the cut side of bagels while gently warming the outer crust.
• Pizza: Optimized setting for cooking pizzas to perfection.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your toaster oven.

1. Always Unplug: Before cleaning, ensure the toaster oven is unplugged from the electrical outlet and has completely cooled down.
2. Crumb Tray: Pull out the removable crumb tray from the bottom of the oven. Discard crumbs and wash the tray in warm, soapy water. Rinse and dry thoroughly before replacing.
3. Oven Rack, Baking Pan, Broiler Tray: Wash these accessories in warm, soapy water. For stubborn food residue, soak them before cleaning. Rinse and dry completely.
4. Interior: Wipe the interior surfaces with a damp cloth and mild liquid soap. Do not use abrasive cleaners or metal scouring pads, as they can damage the nonstick coating. Ensure the interior is dry before next use.
5. Exterior: Wipe the exterior with a damp cloth. Do not use abrasive cleaners or polishes.
6. Never Immerse: Never immerse the main unit, cord, or plug in water or any other liquid.

Troubleshooting

If you encounter issues with your toaster oven, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Oster customer service for assistance.

Specifications

• Brand: Oster
• Model: 6292 (FPSTEK2803B)
• Wattage: 1500 watts
• Capacity: 6-slice (bread)
• Functions: Bake, Convection Bake, Broil, Dehydrate, Toast, Bagel, Pizza
• Temperature Range: 150°F to 450°F (65°C to 232°C)
• Dimensions: Approximately 22 by 12 by 18 inches (Width x Height x Depth)
• Material: Stainless Steel
• Control Type: Knob and Digital Buttons
• Door Style: Dropdown Door
• Special Features: Broiler Option, Non-Stick Interior, Temperature Control, Auto Shut-Off, Interior Light, Removable Crumb Tray
• Included Components: Oven Rack, Baking Pan, Broiler Tray, Crumb Tray

Warranty and Support

This Oster 6292 Counterforms Toaster Oven comes with a 1-year limited warranty from the date of purchase. This warranty covers defects in material and workmanship under normal household use.

For warranty claims, technical support, or any questions not addressed in this manual, please contact Oster customer service. Keep your proof of purchase for warranty validation.

For more information, you may visit the official Oster website or refer to the contact details provided with your product packaging.
