Product Overview
The Standard Motor Products NS228 Clutch Switch is an automotive component designed to monitor the position of the clutch pedal. This switch plays a crucial role in various vehicle systems, including engine starting, cruise control disengagement, and transmission control. It is engineered for reliable performance and direct fit replacement in compatible vehicles.

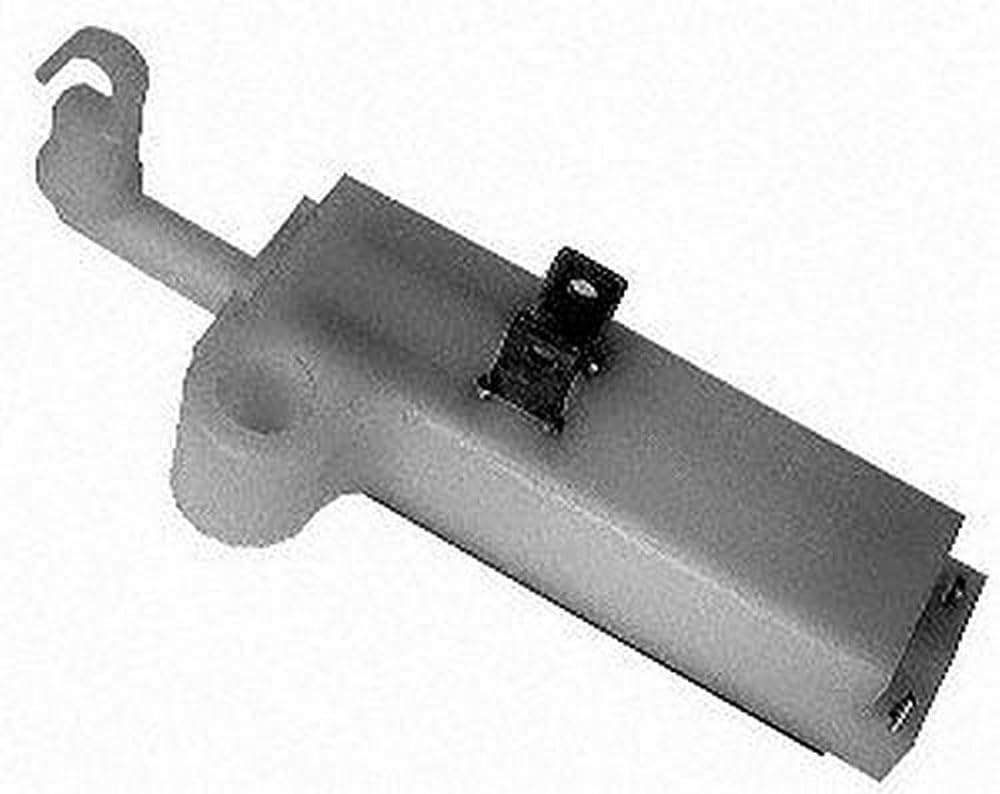

Image: The Standard Motor Products NS228 Clutch Switch, a critical component for vehicle clutch systems.
Safety Information
- Always disconnect the vehicle's battery (negative terminal first) before performing any electrical work or installation to prevent electrical shock or damage to components.
- Ensure the vehicle is securely supported on jack stands if working underneath. Never rely solely on a jack.
- Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, during installation.
- Consult a professional mechanic or your vehicle's service manual if you are unsure about any installation steps or procedures.
- Keep hands and tools clear of moving parts and hot engine components.
Package Contents
- 1x Standard Motor Products NS228 Clutch Switch
Setup and Installation
The following steps provide a general guide for installing the NS228 Clutch Switch. Specific procedures may vary depending on your vehicle's make and model. Always refer to your vehicle's service manual for detailed instructions.
- Preparation: Park the vehicle on a level surface, engage the parking brake, and turn off the ignition. Disconnect the negative terminal of the vehicle's battery.
- Locate Existing Switch: Identify the location of the existing clutch switch. This is typically found near the clutch pedal assembly, often mounted to the pedal bracket or firewall.
- Disconnect Wiring: Carefully disconnect the electrical connector from the old clutch switch. This may involve pressing a tab or releasing a locking mechanism.
- Remove Old Switch: Depending on the vehicle model, the switch may be threaded into a bracket, secured with a clip, or bolted in place. Remove the old switch using appropriate tools.
- Install New Switch: Install the new Standard Motor Products NS228 Clutch Switch in the reverse order of removal. Ensure it is properly seated and securely fastened. If the switch is adjustable, ensure it is set to the correct position as specified by your vehicle's manufacturer.
- Connect Wiring: Reconnect the electrical connector to the new switch, ensuring a firm and secure connection.
- Reconnect Battery: Reconnect the negative terminal of the vehicle's battery.
- Test Functionality: Start the vehicle and test the clutch switch's function. For vehicles with a clutch interlock, ensure the engine starts only when the clutch pedal is fully depressed. Verify that cruise control disengages when the clutch pedal is pressed (if applicable).
Operating Instructions
The NS228 Clutch Switch operates automatically as an integral part of your vehicle's electrical system. Its primary function is to provide an electrical signal to the vehicle's computer or starter circuit based on the position of the clutch pedal. No direct user operation or interaction is required after proper installation. The switch activates and deactivates based on clutch pedal movement, facilitating functions such as engine starting and cruise control disengagement.
Maintenance
The Standard Motor Products NS228 Clutch Switch is designed for long-term, maintenance-free operation under normal driving conditions. No specific lubrication, cleaning, or periodic adjustment is typically required for the switch itself.
- Periodic Inspection: During routine vehicle maintenance, it is recommended to visually inspect the clutch switch and its electrical connections for any signs of looseness, corrosion, or physical damage.
- Environmental Factors: Protect the switch from excessive moisture, dirt, and extreme temperatures, although it is designed to withstand typical automotive environments.
Troubleshooting
If you experience issues that may be related to the clutch switch, consider the following troubleshooting steps:
- Engine Does Not Start When Clutch is Depressed:
- Check all electrical connections to the clutch switch for looseness or corrosion. Ensure they are securely attached.
- Verify the switch is properly seated and, if applicable, correctly adjusted to activate when the clutch pedal is fully depressed.
- Inspect the wiring leading to the switch for any signs of damage, fraying, or short circuits.
- Consult your vehicle's service manual for specific diagnostic procedures related to the starting system and clutch interlock.
- Cruise Control Fails to Disengage:
- A malfunctioning clutch switch may not send the correct signal to disengage cruise control. Verify the switch's operation.
- Ensure there is proper clutch pedal travel and that the switch is being activated when the pedal is pressed.
- Check Engine Light (CEL) or Diagnostic Trouble Codes (DTCs):
- A faulty clutch switch can sometimes trigger a Check Engine Light and store specific diagnostic trouble codes.
- Use an OBD-II scanner to retrieve any stored DTCs. Refer to your vehicle's service manual or an online resource for code interpretation.
If these steps do not resolve the issue, professional diagnosis by a qualified automotive technician is recommended.
Specifications
| Feature | Detail |
|---|---|
| Brand | Standard Motor Products |
| Model Number | NS228 |
| Product Type | Auto Part (Clutch Switch) |
| Operation Mode | ON-OFF |
| Current Rating | 20 Amps |
| Operating Voltage | 5 Volts |
| Contact Type | Normally Open |
| Connector Type | Crimp |
| Switch Type | DIP Switch |
| Terminal | Screw |
| Material | Metal |
| Product Dimensions (L x W x H) | 5.1 x 5.1 x 10.2 Centimetres |
| Item Weight | 4.54 g |
| Country of Origin | China |
Warranty and Support
For detailed warranty information, terms, and conditions, please refer to the official Standard Motor Products website or the documentation provided with your purchase. Keep your purchase receipt as proof of purchase for any warranty claims.
For technical support, product inquiries, or assistance with specific vehicle applications, please contact Standard Motor Products customer service directly.
- Manufacturer: Standard Motor Products
- Place of Business: Long Island City, NY 11101, USA
