I Tech MIO-CARE TENS Electrotherapy Device User Manual

1. Product Overview

The I Tech MIO-CARE TENS is an advanced electrotherapy device designed for pain treatment and muscle stimulation. This Class IIA CE0068 Medical Device utilizes micro-electrical impulses to provide therapeutic benefits. It is equipped with 20 medical TENS programs and features 2 independent channels, allowing for the connection of up to 8 electrodes simultaneously.

Key features include:

• 2 independent channel electrostimulator
• Simple digital keypad for intuitive control
• Internal rechargeable battery for convenience
• Graphic display showing current program and remaining therapy time
• Biphasic and compensated square wave generator for safe and effective treatment
• Practical carrying case for portability

2. Important Safety Warnings

Always consult a physician before using this device.

• Do not use if you have a pacemaker or other implanted electronic devices.
• Avoid use on sensitive areas such as the head, neck, and chest.
• Do not use while driving or sleeping.
• In case of skin irritation or discomfort, discontinue use immediately and consult a physician.
• Keep out of reach of children.
• Do not immerse the device in water or other liquids.

3. Package Contents

Verify that all items listed below are included in your package:

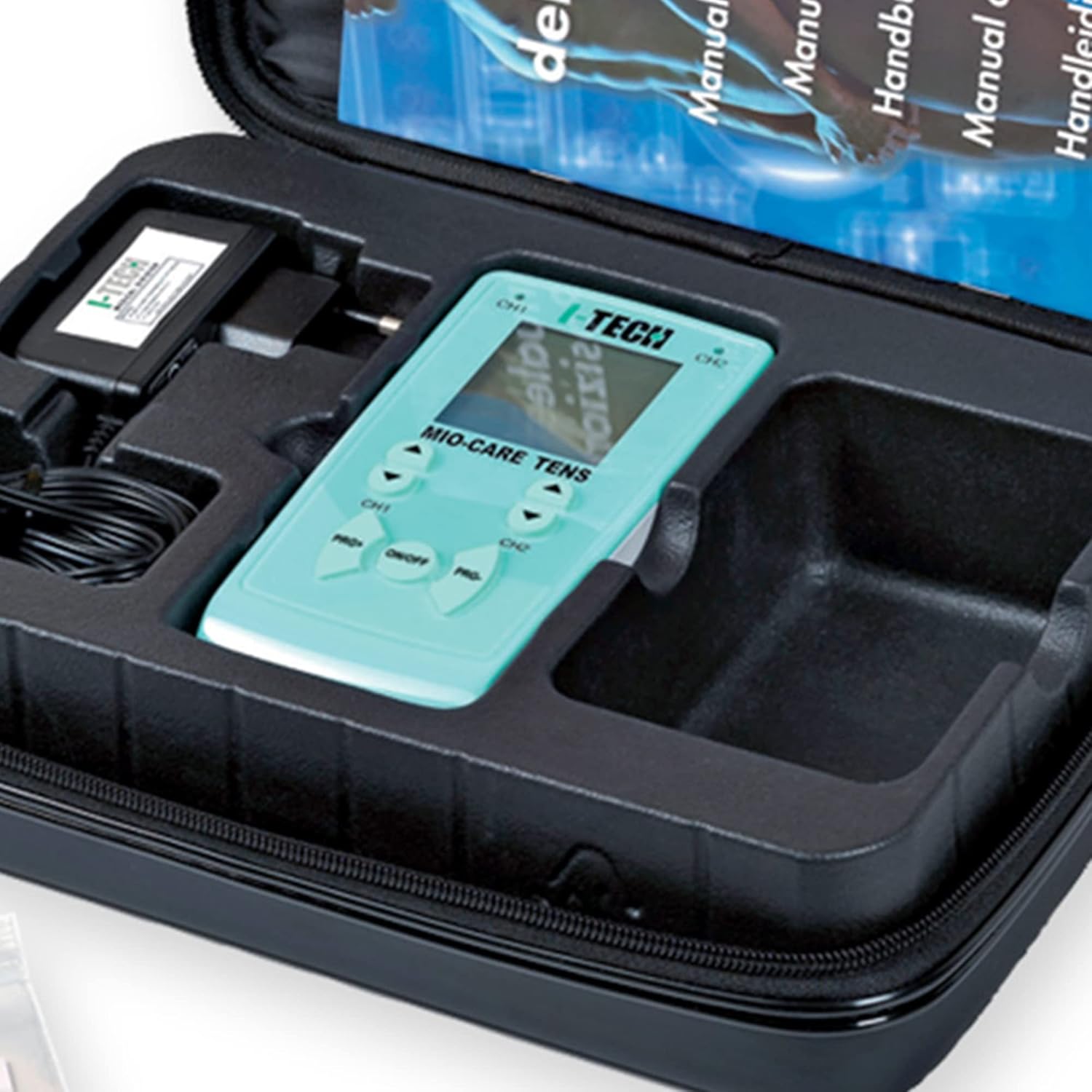

• I Tech MIO-CARE TENS Electrotherapy Device with graphic display
• 2 Electrode Connection Cables (4 wires each, total 8 connectable electrodes)

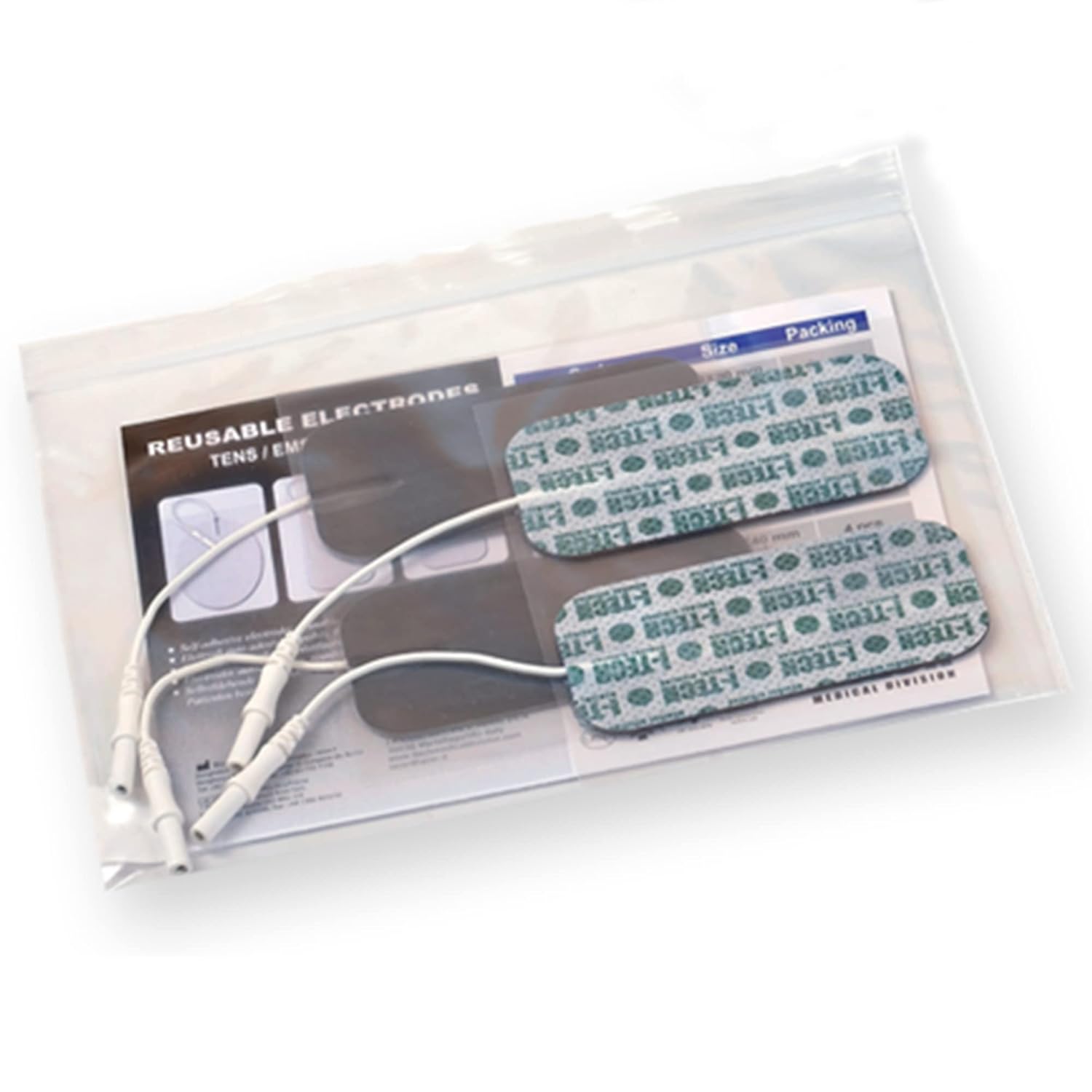

• Pre-gelled Adhesive Electrodes (quantity as specified on packaging)
• Internal Rechargeable Ni-Mh Battery
• Battery Charger
• Belt Loop
• User Manual
• Electrode Placement Manual
• Carrying Bag

4. Setup

4.1. Charging the Battery

Before first use, or when the battery indicator shows low charge, fully charge the internal Ni-Mh battery using the supplied battery charger. Connect the charger to the device and plug it into a standard electrical outlet. The charging indicator on the device will provide feedback on the charging status. A full charge ensures optimal performance and therapy duration.

4.2. Connecting Electrodes

The device comes with 2 electrode connection cables, each featuring 4 wires, allowing for a total of 8 electrodes to be connected. Ensure the device is turned off before connecting or disconnecting electrodes.

1. Insert the cable pins firmly into the corresponding ports on the top of the TENS device.
2. Attach the snap connectors at the other end of the cables to the pre-gelled adhesive electrodes. Ensure a secure connection.
3. Peel the electrodes from their protective liner.

5. Operating Instructions

5.1. Basic Operation

The MIO-CARE TENS device features a user-friendly digital keypad for easy navigation and control.

1. Power On/Off: Press and hold the ON/OFF button located in the center of the keypad to turn the device on or off.
2. Program Selection: Use the PRG+ and PRG- buttons to cycle through the 20 available medical TENS programs. The selected program number will be displayed on the screen.
3. Intensity Adjustment: Once a program is selected, use the CH1 and CH2 arrow buttons (up/down) to adjust the intensity for each independent channel. Start with a low intensity and gradually increase until a comfortable, tingling sensation is felt.
4. Monitoring: The graphic display provides real-time information on the active program and the remaining therapy time.

5.2. Electrode Placement

Correct electrode placement is crucial for effective and safe therapy. Refer to the dedicated Electrode Placement Manual included with your device for detailed diagrams and instructions for various body areas and conditions. General guidelines include:

• Clean and dry the skin area where electrodes will be placed.
• Place electrodes on healthy, intact skin, avoiding open wounds or irritated areas.
• Ensure electrodes are firmly adhered to the skin for good conductivity.
• Typically, electrodes are placed around or near the area of pain, ensuring the current passes through the affected region.
• Do not place electrodes over the heart, across the head, or on the front of the neck.

6. Maintenance

6.1. Cleaning the Device

Wipe the device with a soft, damp cloth. Do not use abrasive cleaners or immerse the device in water. Ensure the device is off and disconnected from the charger before cleaning.

6.2. Electrode Care and Storage

To prolong the life of your pre-gelled adhesive electrodes:

• After each use, reattach the electrodes to their protective plastic liner.
• Store electrodes in a cool, dry place, preferably in their original sealed bag.
• If electrodes lose their adhesiveness, they may need to be replaced. Do not use electrodes that are dry or damaged.

6.3. Battery Care

To maintain battery health, avoid completely draining the battery frequently. Recharge the battery when the low battery indicator appears. If storing the device for an extended period, ensure the battery is partially charged (around 50%) and recharge it every few months.

7. Troubleshooting

If you encounter issues with your MIO-CARE TENS device, refer to the following common troubleshooting steps:

• Device does not turn on: Ensure the battery is charged. Connect the charger and try again.
• No sensation or weak sensation: Check that electrodes are firmly attached to the skin. Increase the intensity gradually using the channel-specific arrow buttons. Ensure cables are securely connected to both the device and the electrodes. Electrodes may need replacement if they have lost their conductivity.
• Skin irritation: Discontinue use immediately. Ensure skin is clean and dry before application. Try repositioning electrodes. If irritation persists, consult a physician.
• Display issues: If the screen is blank or flickering, try turning the device off and on again. Ensure the battery is charged.

For persistent issues not resolved by these steps, please contact customer support.

8. Technical Specifications

9. Warranty and Support

For detailed warranty information, please refer to the warranty card or the full user manual included in your product package. Warranty terms and conditions may vary by region and retailer.

If you require technical assistance, have questions about your device, or need to report a defect, please contact I Tech customer support. Contact details are typically provided in the user manual or on the manufacturer's official website.

Please have your product model number (121) and purchase information ready when contacting support.
