Gates 43057 Premium Engine Water Pump Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your Gates 43057 Premium Engine Water Pump. Adhering to these instructions will help ensure optimal performance and longevity of the product. Please read this manual thoroughly before proceeding with any procedures.

2. Product Overview

2.1 Key Features

• Quality-assured with 100 percent leakage and functional tests of seals, bearings, castings and fully assembled water pump.
• Fits and performs exactly to OE specifications and requirements.
• Premium water pumps are designed to enhance the performance of the equivalent standard pump.
• Backed by a limited lifetime warranty.

2.2 What's in the Box

• Gates 43057 Premium Engine Water Pump

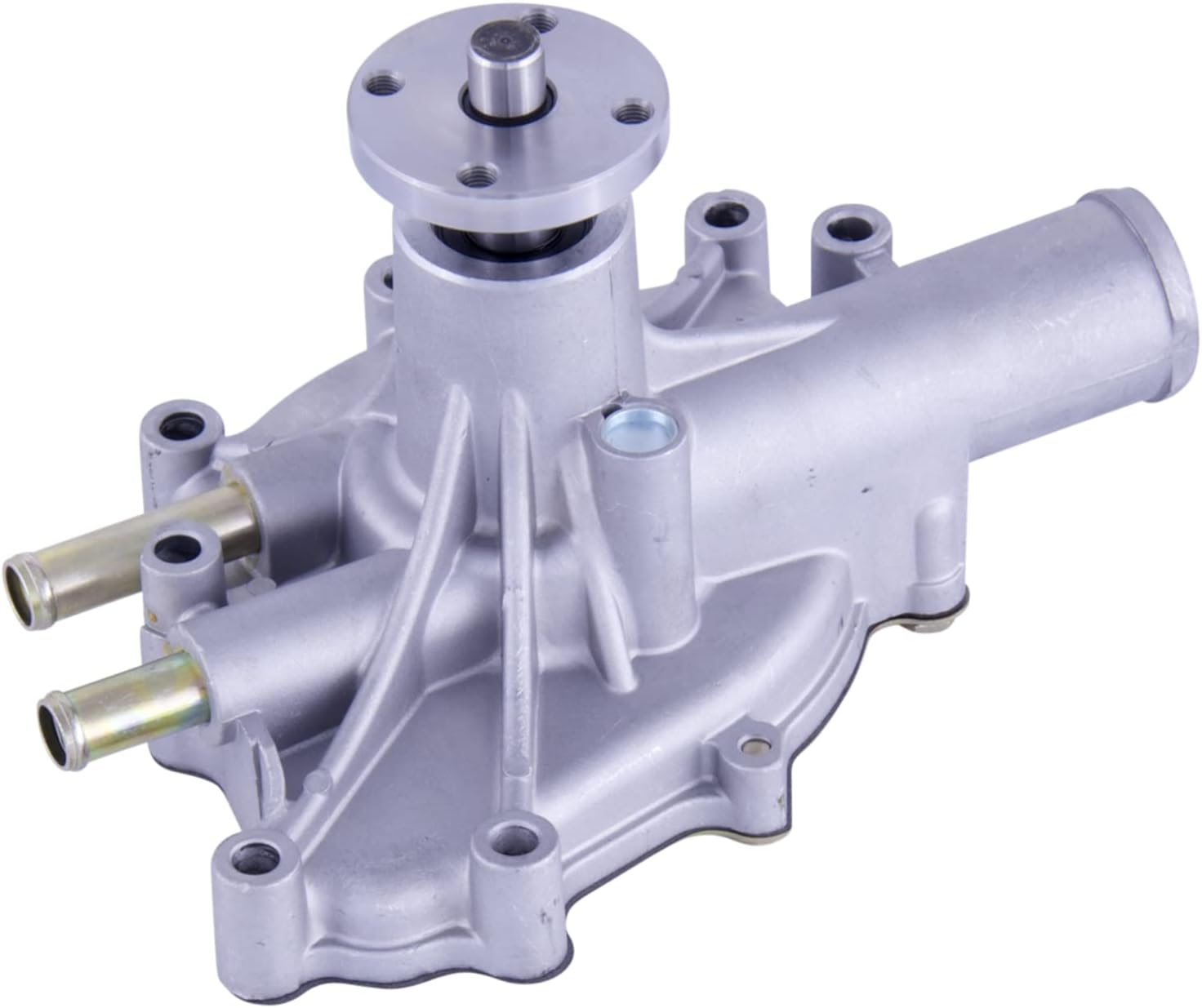

Figure 1: Front view of the Gates 43057 Premium Engine Water Pump.

3. Installation

Installation of the Gates 43057 Premium Engine Water Pump should be performed by a qualified technician. Improper installation can lead to system failure and potential damage to the vehicle. Always refer to your vehicle's specific service manual for detailed, step-by-step instructions.

3.1 General Installation Steps (Consult Vehicle Service Manual for Details)

1. Safety First: Ensure the engine is cool and the vehicle is safely supported. Disconnect the battery.
2. Drain Coolant: Completely drain the engine's cooling system.
3. Remove Obstructions: Remove any components obstructing access to the water pump (e.g., belts, hoses, fan, pulleys).
4. Remove Old Water Pump: Carefully unbolt and remove the old water pump. Clean the mounting surface thoroughly, ensuring no old gasket material remains.
5. Install New Water Pump: Apply a thin, even coat of RTV sealant to both sides of the new gasket (if applicable) and position it on the new water pump. Install the new Gates 43057 water pump, ensuring proper alignment. Torque bolts to manufacturer specifications.
6. Reinstall Components: Reattach all removed components, including hoses and belts. Ensure all connections are secure.
7. Refill Coolant: Refill the cooling system with the appropriate coolant type and bleed any air from the system as per vehicle manufacturer guidelines.
8. Test for Leaks: Start the engine and allow it to reach operating temperature. Carefully inspect for any leaks around the new water pump and connections.

Figure 2: Top view of the Gates 43057 Premium Engine Water Pump, showing mounting points.

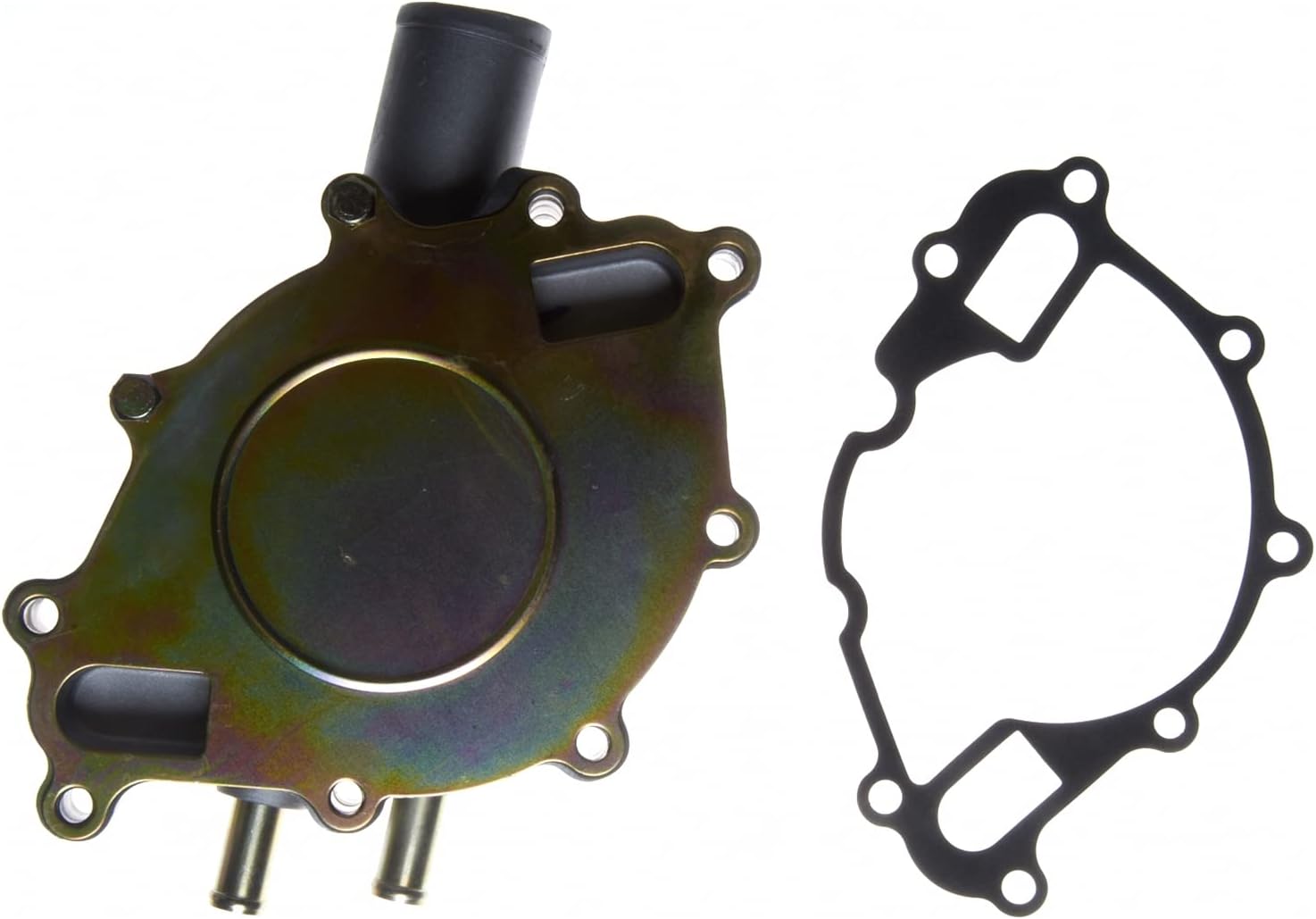

Figure 3: Gates 43057 Premium Engine Water Pump shown with its accompanying gasket, crucial for a leak-free seal during installation.

4. Operating Principles

The engine water pump is a critical component of your vehicle's cooling system. Its primary function is to circulate coolant through the engine block, cylinder head, radiator, and heater core. This circulation helps to dissipate heat generated by the engine, maintaining an optimal operating temperature and preventing overheating.

The cooling system works in conjunction with other components such as the thermostat, which regulates coolant flow, and various hoses that transport the coolant throughout the system. Proper functioning of all these parts is essential for engine health and performance.

5. Maintenance

Regular maintenance of your vehicle's cooling system, including the water pump, is crucial for preventing engine damage and ensuring reliable operation. Follow your vehicle manufacturer's recommended service intervals for coolant flushes and component inspections.

5.1 Recommended Practices

• Coolant Checks: Periodically check coolant levels and condition. Ensure the coolant is clean and at the correct concentration.
• Hose Inspection: Inspect all coolant hoses for cracks, leaks, bulges, or hardening. Replace any damaged hoses immediately.
• Belt Inspection: Check the serpentine belt for cracks, fraying, or excessive wear. A worn belt can lead to reduced water pump efficiency.
• System Flush: Perform a cooling system flush at recommended intervals to remove contaminants and maintain coolant effectiveness.
• Component Replacement: When replacing the water pump, it is often recommended to also replace related components such as the thermostat, radiator hoses, and the serpentine belt along with its tensioner and pulleys, to ensure the entire system functions optimally.

6. Troubleshooting

If you experience issues with your vehicle's cooling system, consider the following common problems related to the water pump. For accurate diagnosis and repair, it is always best to consult a certified automotive technician.

6.1 Common Issues

• Coolant Leaks: Check for puddles under the vehicle or coolant residue around the water pump housing. Leaks can indicate a failing seal or gasket.
• Overheating Engine: A malfunctioning water pump can lead to insufficient coolant circulation, causing the engine to overheat.
• Unusual Noises: Grinding, squealing, or whining noises from the front of the engine may indicate worn bearings within the water pump.
• Loose Pulley: A wobbly or loose water pump pulley can be a sign of internal bearing failure.

7. Specifications

8. Warranty Information

The Gates 43057 Premium Engine Water Pump is backed by a limited lifetime warranty. For specific terms and conditions, please refer to the official Gates warranty documentation or contact Gates customer support.

9. Support & Resources

For additional support, product information, or to locate a Gates dealer, please visit the official Gates website or utilize the resources below:

• Gates Official Store: Visit the Gates Store on Amazon
• NaviGates App: Utilize the NaviGates app for quick part lookups, cross-referencing, and locating auto parts stores.
