Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Master Plumber 828-973 1-1/2-Inch O.D. Kitchen Drain J Bend. Please read this manual thoroughly before beginning installation to ensure proper function and safety.
The Master Plumber 828-973 is a durable kitchen drain J bend designed for plumbing applications. It features chrome-plated brass construction and a 1-1/2 inch outer diameter tube, ensuring reliable performance in your drainage system.
Safety Information
Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves when handling plumbing components and tools.
Ensure the water supply is turned off before beginning any plumbing work to prevent leaks or flooding.
If you are unsure about any step, consult a qualified plumber.
Proposition 65 Warning: This product may expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Package Contents
Verify that all components are present before beginning installation.
- 1 x Master Plumber 828-973 1-1/2-Inch O.D. Kitchen Drain J Bend (Chrome Plated Brass)
- Note: Additional plumbing components such as slip nuts, washers, or tailpieces are typically sold separately and may be required for a complete installation.

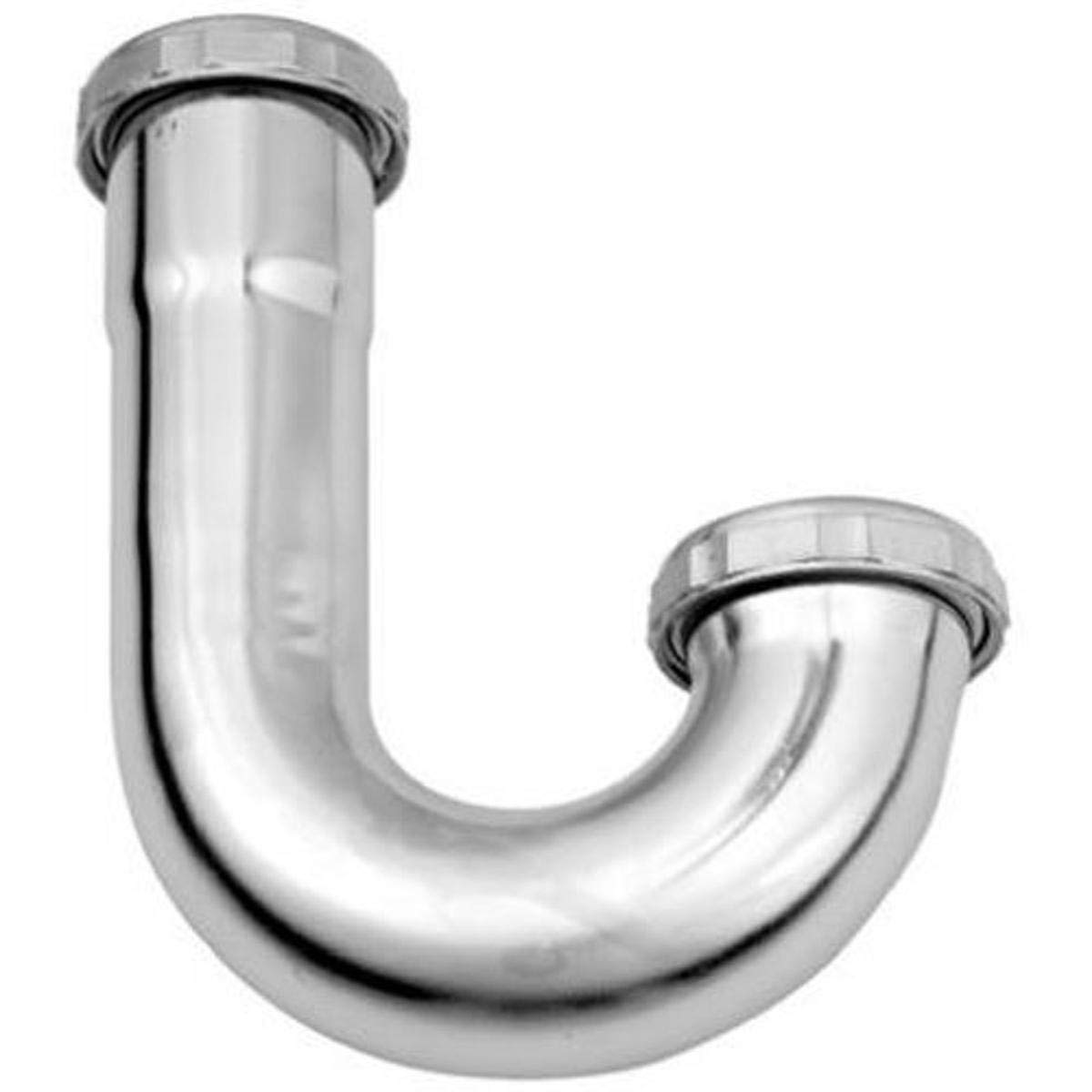

Image: The Master Plumber 828-973 J Bend, a chrome-plated brass component with a 1-1/2 inch outer diameter, designed for kitchen drain systems.
Setup and Installation
- Prepare the Area: Clear the workspace under the sink. Place a bucket or towel to catch any residual water from the existing drain system.
- Turn Off Water Supply: Ensure the main water supply to the sink is completely shut off.
- Remove Old J Bend (if applicable): Loosen the slip nuts connecting the old J bend to the tailpiece and the trap arm. Carefully remove the old J bend.
- Inspect Components: Examine the new Master Plumber 828-973 J bend for any damage or manufacturing defects. Ensure all necessary washers (not included) are available.
- Install New J Bend:
- Place a slip nut and a washer onto each end of the new J bend.
- Connect one end of the J bend to the tailpiece extending from the sink drain. Hand-tighten the slip nut.
- Connect the other end of the J bend to the trap arm that leads into the wall drain. Hand-tighten the slip nut.
- Align and Tighten: Adjust the J bend for proper alignment, ensuring a slight downward slope towards the wall drain for optimal drainage. Once aligned, use a wrench to carefully tighten the slip nuts. Do not overtighten, as this can damage the nuts or washers.
- Check for Leaks: Turn the water supply back on slowly. Fill the sink with water and then drain it, carefully inspecting all connections for any signs of leaks. Tighten connections slightly if leaks are detected.
Operating Instructions
The Master Plumber 828-973 J Bend is a passive component of your kitchen drain system. Once properly installed, it operates by forming a water seal (trap) that prevents sewer gases from entering your home while allowing wastewater to flow freely into the drainage system.
No specific operational steps are required beyond ensuring proper installation and regular maintenance.
Maintenance
- Regular Inspection: Periodically check the J bend and its connections for any signs of leaks, corrosion, or damage.
- Cleaning: If clogs occur, the J bend can be easily removed for cleaning. Place a bucket underneath, loosen the slip nuts, and remove the J bend. Clear any debris and re-install, ensuring a tight, leak-free connection.
- Avoid Harsh Chemicals: Do not use harsh chemical drain cleaners, as these can damage the chrome finish or the brass material over time.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Leak at connections | Loose slip nuts, damaged or improperly seated washers. | Tighten slip nuts. If leak persists, disassemble, inspect washers for damage, replace if necessary, and reassemble. |
| Slow drainage or clog | Accumulation of food particles, grease, or hair within the J bend. | Place a bucket under the J bend, loosen slip nuts, remove the J bend, and clear any obstructions. Reinstall and check for leaks. |
| Sewer gas odor | Dry trap (water seal evaporated), improper installation, or leak allowing air in. | Run water to refill the trap. Check for leaks at connections and ensure proper installation. If the problem persists, consult a plumber. |
Specifications
- Model Number: 828-973
- Brand: Master Plumber
- Material: Chrome Plated Brass
- Tube Outer Diameter (O.D.): 1-1/2 inches
- Item Weight: 5.6 ounces
- Product Dimensions: 2.25 x 9.5 x 7.75 inches
- UPC: 052088079997
Warranty and Support
For warranty information or technical support regarding your Master Plumber 828-973 J Bend, please refer to the manufacturer's official website or contact their customer service department. Specific warranty terms may vary and are typically provided with the product packaging or on the manufacturer's website.
Manufacturer: Master Plumber
