1. Product Overview
The Claber 8583 Koala Indoor Faucet Adapter is an Italian-made connector designed to enable the use of a standard 5/8-inch garden hose with most straight-neck indoor faucets. This adapter provides a convenient solution for tasks such as filling aquariums, waterbeds, or watering plants on balconies and patios, utilizing an indoor water source.
Key features include a rubber seal that clamps directly onto the faucet to prevent leaks and sprays, and an adjustable lower attachment to accommodate various faucet lengths. It also incorporates a quick-click coupler for fast and easy hose removal. Constructed from lightweight, UV-stabilized ABS and PP plastic, the unit is designed for durability and is quality-controlled, pressure-tested for leaks at 145 PSI.
Figure 1: Front view of the Claber 8583 Koala Indoor Faucet Adapter.
2. Faucet Compatibility
This adapter is specifically designed for straight-neck faucets. It will not work with faucets that have curved necks or those wider than 1-1/4 inches. Ensure your faucet meets these criteria for proper fit and function.

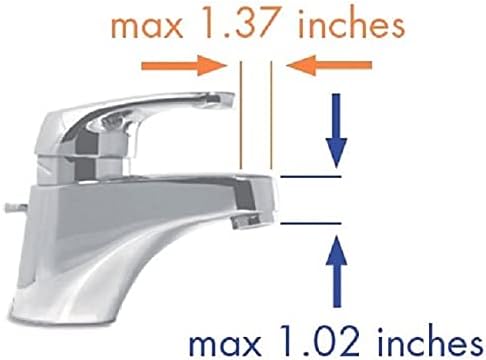

Figure 2: Faucet dimension guidelines for adapter compatibility. Maximum width 1.37 inches, maximum depth 1.02 inches.
Figure 3: Visual guide to compatible faucet types (indicated by checkmarks) and incompatible types.
3. Setup and Installation
Follow these steps to correctly install your Claber 8583 Koala Indoor Faucet Adapter:
- Prepare the Faucet: Ensure your indoor faucet is a straight-neck type and no wider or deeper than 1-1/4 inches. Remove any existing aerator from the faucet.
- Attach the Adapter: The adapter features a rubber seal and an adjustable lower attachment. Slide the adapter onto the faucet.
- Secure the Adapter: Turn the adapter clockwise to tighten it onto the faucet. The rubber seal should clamp firmly to prevent any leaking or spraying. Adjust the lower attachment as needed to fit the faucet length.
- Connect the Hose: Attach your standard 5/8-inch garden hose to the quick-click coupling on the adapter. Push until you hear a "click" to ensure a secure connection.
Figure 4: Illustrated installation steps for the Claber Koala Indoor Faucet Adapter.
4. Operating Instructions
Once the adapter and hose are securely connected:
- Turn on Water: Slowly open your indoor faucet to allow water to flow through the adapter and into the connected garden hose.
- Check for Leaks: Observe the connection points for any signs of leakage. If leaks occur, ensure the adapter is tightened sufficiently and the rubber seal is properly seated.
- Use the Hose: Operate your garden hose as usual for your desired task.
- Disconnecting: To remove the hose, first turn off the indoor faucet. Then, use the quick-click coupling to easily detach the garden hose from the adapter.
5. Maintenance
To ensure the longevity and optimal performance of your Claber 8583 Koala Indoor Faucet Adapter:
- Regular Cleaning: Periodically inspect the adapter and its rubber seal for any debris or mineral buildup. Clean with mild soap and water if necessary.
- Inspect Seals: Before each use, check the rubber seal for any signs of wear, cracks, or damage. A damaged seal can lead to leaks.
- Storage: When not in use, especially during colder months, disconnect the adapter and store it in a dry, protected area to prevent damage from freezing temperatures.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaks from faucet connection | Adapter not tightened sufficiently; incompatible faucet type; damaged rubber seal. | Ensure the adapter is securely tightened onto the faucet. Verify your faucet is a straight-neck type and within the specified dimensions (no wider/deeper than 1-1/4 inches). Inspect and replace the rubber seal if damaged. |
| Hose detaches unexpectedly | Hose not fully connected to quick-click coupling. | Ensure the quick-click coupling is fully engaged with the hose connector until a "click" is heard. |
| Low water pressure | Partial blockage in adapter or hose; low household water pressure. | Check the adapter and hose for any obstructions. Ensure the faucet is fully open. Consult your plumbing for household water pressure issues. |
7. Specifications
- Model Number: 8583
- Product Dimensions: 2 x 2 x 2 inches
- Item Weight: 4.3 ounces
- Material: UV-stabilized ABS and PP plastic
- Maximum Faucet Width/Depth: 1-1/4 inches
- Hose Compatibility: Standard 5/8-inch garden hose
- Water Temperature Range: 32°F to 120°F (operating), up to 140°F (outdoor)
- Pressure Tested: 145 PSI
8. Warranty and Support
The Claber 8583 Koala Indoor Faucet Adapter comes with a 2-year warranty. For support or warranty claims, please contact Claber customer service through their official website or the retailer where the product was purchased.
