1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Leeson Woodworking Electric Motor, Model 110142. This 1 HP, 3,450 RPM, single-phase motor is designed specifically for woodworking applications, featuring a totally enclosed, fan-cooled (TEFC) housing to prevent issues caused by wood dust and shavings. Its robust construction ensures reliable performance in demanding environments.
Please read this manual thoroughly before operating the motor to ensure proper usage and to maximize its lifespan.

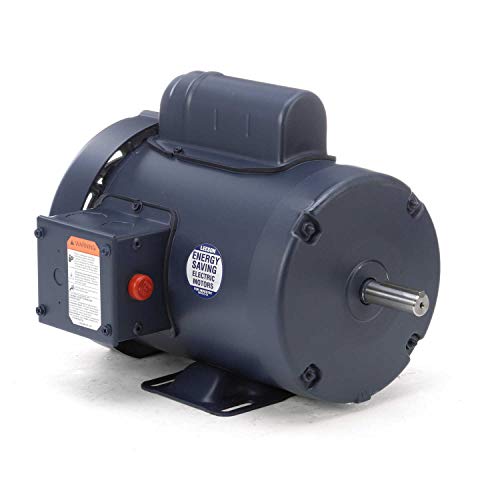

Figure 1: Leeson Woodworking Electric Motor, Model 110142. This image shows the overall view of the motor, highlighting its robust, totally enclosed design and the Leeson Energy Saving Electric Motors label.
2. Safety Information
Always prioritize safety when working with electrical equipment. Failure to follow these safety guidelines may result in serious injury, electric shock, fire, or damage to the motor.
General Safety Precautions:
- Disconnect Power: Always disconnect power to the motor before performing any installation, maintenance, or troubleshooting.
- Qualified Personnel: Installation and electrical connections should only be performed by qualified electricians in accordance with all local and national electrical codes.
- Proper Grounding: Ensure the motor is properly grounded to prevent electric shock.
- Ventilation: Although the motor is fan-cooled, ensure adequate air circulation around the motor to prevent overheating.
- Personal Protective Equipment (PPE): Wear appropriate PPE, including safety glasses and gloves, when working with the motor.
- Avoid Loose Clothing: Keep loose clothing, jewelry, and long hair away from moving parts.
- Warning Labels: Do not remove or obscure any warning labels on the motor. Read and understand all warnings.
Figure 2: Close-up view of the warning label on the Leeson Electric Motor. This label provides critical safety instructions and electrical specifications that must be adhered to during installation and operation.
3. Setup and Installation
3.1 Mounting
The Leeson Model 110142 motor features a rigid base designed for secure mounting on equipment. Ensure the mounting surface is stable, level, and capable of supporting the motor's weight and operational forces.
- Position the motor on the desired mounting surface.
- Align the motor shaft with the driven equipment.
- Secure the motor using appropriate bolts and washers through the mounting holes on the rigid base. Tighten all fasteners evenly to prevent vibration and misalignment.
- Verify that the motor is firmly attached and there is no wobble or movement.
3.2 Electrical Connections
This motor operates on 115/208-230 Volts, Single Phase. Refer to the wiring diagram located on the motor's nameplate or inside the terminal box cover for specific connection instructions. Always ensure power is disconnected before making any electrical connections.
- Confirm the supply voltage matches the motor's voltage requirements (115V, 208V, or 230V).
- Connect the power supply wires to the appropriate terminals as indicated by the wiring diagram.
- Ensure all connections are tight and secure to prevent arcing and overheating.
- Properly ground the motor frame to an earth ground.
- Close and secure the terminal box cover after connections are complete.
4. Operating Instructions
4.1 Pre-Operation Check
- Verify all mounting bolts are tight.
- Ensure all electrical connections are secure and properly insulated.
- Check that the motor shaft rotates freely without obstruction.
- Confirm that the driven equipment is ready for operation.
4.2 Starting the Motor
Once all pre-operation checks are complete, apply power to the motor. The motor should start smoothly and reach its rated speed of 3,450 RPM quickly.
4.3 Manual Reset Overload Protection
This motor is equipped with a manual reset overload protector. This feature safeguards the motor from damage due to excessive current or overheating. If the motor stops unexpectedly during operation, it may be due to the overload protector tripping.
- If the overload trips, disconnect power to the motor immediately.
- Allow the motor to cool down for at least 10-15 minutes.
- Investigate the cause of the overload (e.g., excessive load, low voltage, poor ventilation).
- Once the motor has cooled and the cause is addressed, press the manual reset button (typically a red button on the motor housing or terminal box) to reset the protector.
- Reconnect power and attempt to restart the motor. If the overload trips repeatedly, consult the troubleshooting section or a qualified technician.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Leeson electric motor. Always disconnect power before performing any maintenance.
5.1 Cleaning
The totally enclosed, fan-cooled (TEFC) design and full gasketing significantly reduce the ingress of wood dust and shavings. However, external cleaning is still important.
- Periodically clean the exterior of the motor, especially the cooling fins and fan cover, to ensure proper airflow and heat dissipation.
- Use compressed air or a soft brush to remove accumulated dust and debris.
- Do not use water or liquid cleaners directly on the motor.
5.2 Inspection
- Regularly inspect the motor for any signs of damage, loose connections, or unusual wear.
- Check mounting bolts for tightness.
- Listen for any unusual noises during operation, which could indicate bearing issues or misalignment.
- Inspect the power cord and plug for damage.
5.3 Lubrication
Leeson motors are typically designed with sealed bearings that do not require periodic lubrication. Refer to the motor's nameplate or specific documentation for your model to confirm lubrication requirements. If your motor has grease fittings, consult a qualified technician for proper lubrication procedures and schedules.
6. Troubleshooting
This section provides solutions to common issues you might encounter with your Leeson electric motor. Always disconnect power before attempting any troubleshooting or repairs.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start. | No power supply. Tripped circuit breaker/fuse. Tripped manual reset overload. Incorrect wiring. | Check power source. Reset breaker or replace fuse. Allow motor to cool, then press manual reset button. Verify wiring against diagram. |
| Motor overheats. | Excessive load. Insufficient ventilation. Low voltage. Bearing issues. | Reduce load. Clear obstructions around motor, ensure proper airflow. Verify supply voltage. Contact qualified technician. |
| Motor makes unusual noise. | Worn bearings. Misalignment with driven equipment. Loose mounting. | Contact qualified technician for bearing replacement. Check and correct alignment. Tighten all mounting bolts. |
| Motor trips overload repeatedly. | Persistent overload condition. Faulty overload protector. | Identify and resolve the root cause of the overload (e.g., binding equipment, dull blades). If problem persists after addressing load, contact qualified technician. |
7. Specifications
The following are key specifications for the Leeson Woodworking Electric Motor, Model 110142:
| Attribute | Value |
|---|---|
| Brand | Leeson |
| Model Number | 110142 |
| Horsepower (HP) | 1 hp |
| Speed (RPM) | 3450 RPM |
| Voltage | 115/208-230 Volts |
| Phase | Single Phase |
| Enclosure Type | Totally Enclosed, Fan Cooled (TEFC) |
| Overload Protection | Manual Reset |
| Material | Wood (Note: This refers to the motor's intended application, not its construction material.) |
| ASIN | B000AS70BE |
| Manufacturer | Leeson |
8. Warranty and Support
Leeson products are manufactured to high standards and are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Leeson website.
Customer Support:
If you encounter any issues not covered in this manual, or require technical assistance, please contact Leeson customer support. Have your motor's model number (110142) and serial number ready when contacting support.
For the most current contact information, please visit the official Leeson website or refer to your product packaging.
