Rowenta DE871 Professional Steam Iron User Manual

1. Important Safety Instructions

Please read all instructions carefully before using the Rowenta DE871 Professional Steam Iron. Keep this manual for future reference.

• Always unplug the iron from the electrical outlet when filling with water, emptying, or when not in use.
• Do not operate the iron with a damaged cord or if the iron has been dropped or damaged. Contact authorized service personnel for examination and repair.
• To protect against a risk of electric shock, do not immerse the iron in water or other liquids.
• Close supervision is necessary for any appliance used by or near children. Do not leave the iron unattended while connected or on an ironing board.
• Use the iron only for its intended household use as described in this manual.
• Never direct steam at people or animals.
• The soleplate can become extremely hot and cause burns. Avoid contact with hot surfaces.

2. Product Overview

The Rowenta DE871 is a professional-grade steam iron designed for efficient wrinkle removal across various fabric types. Its ergonomic design and advanced features ensure a smooth ironing experience.

Key Components

• Stainless Steel Soleplate: Provides even heat distribution and glides smoothly over fabrics.
• Water Tank: Transparent tank with a capacity of 12.8 ounces for steam generation.
• Spray Nozzle: For misting fabrics.
• Steam Button/Trigger: Activates continuous steam or steam burst.
• Temperature Dial: Adjusts heat settings for different fabric types.
• Power Cord: Connects the iron to an electrical outlet.
• Ergonomic Handle: Cushioned for comfortable grip.

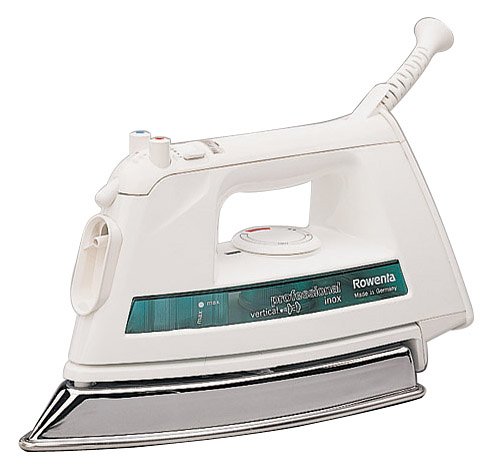

Image of the Rowenta DE871 Professional Steam Iron, showcasing its ergonomic handle, stainless steel soleplate, and transparent water tank.

3. Setup

Before First Use

Unpack the iron and remove all packaging materials, labels, and protective films. Inspect the iron for any signs of damage. If any damage is found, do not use the iron and contact customer service.

Filling the Water Tank

1. Ensure the iron is unplugged from the electrical outlet.
2. Open the water inlet cover, usually located on the top of the iron.
3. Fill the water tank with tap water, distilled water, or spring water up to the 'MAX' fill line. Do not overfill.
4. Close the water inlet cover securely to prevent leaks.

4. Operating Instructions

Temperature Settings

Plug the iron into a suitable electrical outlet. Rotate the temperature dial to select the appropriate heat setting for your fabric. The iron will heat up, and the indicator light will turn off when the desired temperature is reached. Always check the garment's care label for recommended ironing temperatures.

• Low Heat: Synthetics, Silk
• Medium Heat: Wool
• High Heat: Cotton, Linen

Steam Functions

• Continuous Steam: Once the iron reaches the appropriate temperature (usually medium to high settings), steam will be generated automatically or by pressing the steam button.
• Steam Burst: For stubborn wrinkles, press the steam burst button. This releases an extra shot of steam. Allow a few seconds between bursts.
• Spray Function: Press the spray button to mist the fabric with water, which helps in smoothing out creases.

Vertical Steaming

The Rowenta DE871 can be used for vertical steaming of hanging garments, drapes, or upholstery. Hold the iron vertically a few inches away from the fabric and press the steam burst button. Ensure the iron is at a high temperature setting for effective vertical steaming.

Auto Shut-Off Feature

For safety and energy conservation, the iron is equipped with an automatic shut-off feature:

• If left idle in an upright position, the iron will automatically turn off after 8 minutes.
• If left idle in a horizontal position or tipped over, the iron will automatically turn off after 30 seconds.

To reactivate the iron, simply move it. The iron will reheat to the selected temperature.

5. Maintenance

Self-Clean Function

Regularly use the self-clean function to flush out mineral deposits and maintain optimal steam performance.

1. Fill the water tank to the 'MAX' line.
2. Set the temperature dial to the maximum setting and plug in the iron.
3. Once the iron reaches maximum temperature (indicator light turns off), unplug it.
4. Hold the iron horizontally over a sink. Press and hold the self-clean button (refer to your iron's specific button layout).
5. Shake the iron gently back and forth until all the water has drained out, carrying mineral deposits with it.
6. Release the self-clean button and allow the iron to cool down.

Descaling

If you notice significant mineral buildup or reduced steam output despite regular self-cleaning, a more thorough descaling might be necessary. Consult the Rowenta website or customer support for recommended descaling procedures or solutions.

Storage

After each use, unplug the iron and allow it to cool completely. Empty any remaining water from the tank. Wrap the power cord neatly around the cord wrap area (if available) or secure it. Store the iron in an upright position in a safe, dry place.

6. Troubleshooting

7. Specifications

• Model: DE871
• Brand: Rowenta
• Wattage: 1500 watts
• Product Dimensions: 10.75"L x 4.66"W
• Water Tank Capacity: Approximately 12.8 ounces
• Soleplate Material: Stainless Steel
• Special Features: Auto Shutoff, Vertical Steaming, Self-Clean
• Power Cord: Integrated storage compartment

8. Warranty and Support

This Rowenta DE871 Professional Steam Iron is covered by a limited one-year warranty from the date of purchase. This warranty covers manufacturing defects under normal household use.

For further assistance, warranty claims, or to purchase replacement parts, please contact Rowenta customer service. You can find detailed contact information and support resources by visiting the official Rowenta website: www.rowenta.com.

Please have your model number (DE871) and proof of purchase available when contacting support.
