1. Introduction
This manual provides instructions for the installation, operation, and maintenance of the Irritrol 300-1 1" Electric Valve Adapter. This adapter is designed to convert manual anti-siphon valves to electric operation, offering consistent and dependable performance in various irrigation applications.
2. Product Overview
The Irritrol 300-1 Electric Valve Adapter is engineered for durability and ease of conversion. Its internal components are captured in a single unit, simplifying the process of upgrading existing manual valves to electric control. The adapter is constructed from brass and stainless steel, ensuring longevity and resistance to environmental factors.

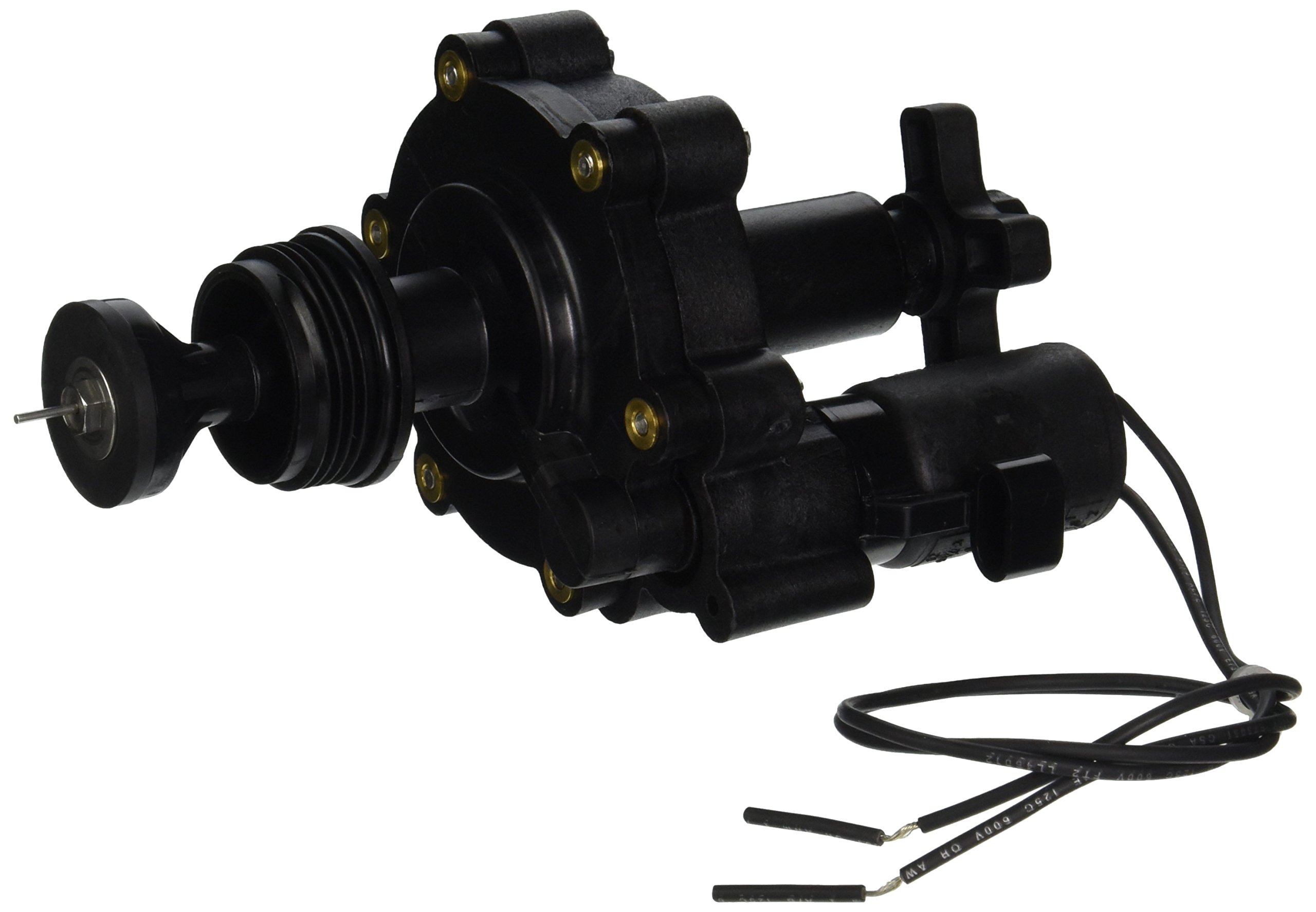

Figure 1: Irritrol 300-1 1" Electric Valve Adapter. This image shows the complete valve adapter unit, highlighting its compact design and connection points.
Key Features:
- Durable Construction: Made from brass and stainless steel for extended product life.
- Easy Conversion: Designed for straightforward conversion of manual anti-siphon valves to electric.
- Reliable Performance: Provides consistent and dependable operation in various irrigation systems.
- Compact Design: All internal components are integrated into a single unit.
3. Setup and Installation
Before beginning installation, ensure the main water supply to the irrigation system is turned off. This adapter is designed for use with compatible Irritrol manual anti-siphon valves.
Installation Steps:
- Turn Off Water Supply: Locate the main water shut-off valve for your irrigation system and turn it to the OFF position.
- Relieve Pressure: Open a faucet or valve downstream to relieve any remaining water pressure in the system.
- Remove Manual Components: Carefully unscrew and remove the existing manual control components from the anti-siphon valve body. Refer to your original valve's manual for specific removal instructions.
- Install Electric Adapter: Thread the Irritrol 300-1 Electric Valve Adapter onto the valve body. Ensure it is hand-tightened securely, then use a wrench for an additional quarter to half turn to ensure a watertight seal. Do not overtighten.
- Wire the Solenoid: Connect the two wires from the electric adapter's solenoid to your irrigation controller's common wire and the appropriate zone wire. Use waterproof wire connectors suitable for outdoor use. Ensure all connections are secure and insulated.
- Restore Water Supply: Slowly turn the main water supply back on, checking for any leaks around the newly installed adapter.
- Test Operation: Activate the corresponding zone from your irrigation controller to verify the electric valve adapter opens and closes correctly.
Note: If you are unsure about any step, consult a qualified irrigation professional.
4. Operating Instructions
Once installed, the Irritrol 300-1 Electric Valve Adapter operates in conjunction with your irrigation controller. The adapter converts the manual valve to an electrically controlled valve, allowing for automated scheduling.
Automated Operation:
- Program your irrigation controller according to its manufacturer's instructions to schedule watering times and durations for the zone connected to this valve adapter.
- When the controller sends an electrical signal, the solenoid on the adapter will activate, opening the valve and allowing water flow.
- When the watering cycle is complete, the controller will cease the electrical signal, and the solenoid will deactivate, closing the valve.
Manual Operation (if applicable to the converted valve):
Some anti-siphon valves may retain a manual bleed screw or lever even after conversion. Consult your original valve's manual to determine if manual operation is still possible and how to perform it. Typically, turning a bleed screw counter-clockwise will manually open the valve, and turning it clockwise will close it.
5. Maintenance
The Irritrol 300-1 Electric Valve Adapter is designed for minimal maintenance. Regular inspection of your irrigation system is recommended to ensure optimal performance.
- Seasonal Inspection: Before the start of each irrigation season, inspect the valve adapter and wiring for any visible damage, corrosion, or loose connections.
- Leak Detection: Periodically check for any water leaks around the valve adapter connections. Tighten connections if necessary, but do not overtighten.
- Winterization: In regions subject to freezing temperatures, ensure your irrigation system, including the valve adapter, is properly winterized to prevent freeze damage. This typically involves shutting off the water supply and draining the system.
- Cleaning: Keep the area around the valve adapter free from debris, dirt, and plant growth that could interfere with its operation or access for inspection.
6. Troubleshooting
If you encounter issues with your Irritrol 300-1 Electric Valve Adapter, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Valve does not open. |
|
|
| Valve does not close. |
|
|
| Water leaks from valve. |
|
|
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | 300-1 |
| Brand | Irritrol |
| Material | Brass, Stainless Steel |
| Inlet Connection Size | 1 Inch |
| Inlet Connection Type | Threaded |
| Outlet Connection Size | 1 Inch |
| Outlet Connection Type | NPT |
| Number of Ports | 2 |
| Item Dimensions (L x W x H) | 6 x 3 x 3 inches |
| Item Weight | 2 Pounds |
| Valve Type | Globe Valve (referring to the type of valve it adapts to) |
| Certifications | ASSE, NSF |
| Country Of Origin | United States |
8. Warranty and Support
For specific warranty information and technical support regarding your Irritrol 300-1 Electric Valve Adapter, please refer to the official Irritrol website or contact Irritrol customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
Irritrol Contact Information:
- Website: www.irritrol.com
- Customer Service: Refer to the website for contact numbers or support forms.
