Brill 540 HS Electric Hedge Trimmer User Manual

1. Introduction and Safety Information

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Brill 540 HS Electric Hedge Trimmer. Please read this manual thoroughly before using the appliance and keep it for future reference.

The Brill 540 HS electric hedge trimmer is designed for precise and clean cutting of branches up to 25 mm thick. It features a powerful motor and hardened safety blades. The balanced design and three-sided handle ensure comfortable and easy operation.

General Safety Warnings

• Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
• Keep work area clear. Cluttered areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Wear appropriate personal protective equipment (PPE). Always wear eye protection, hearing protection, sturdy gloves, and non-slip footwear.
• Avoid accidental starting. Ensure the switch is in the off-position before connecting to power, picking up or carrying the tool.
• Maintain a firm grip on the hedge trimmer with both hands during operation.
• Keep all parts of the body away from the cutter blade. Do not attempt to remove cut material or hold material to be cut when blades are moving.
• Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
• Inspect the hedge trimmer before each use. Check for damaged parts, loose connections, or any other condition that may affect its safe operation.

2. Setup

2.1 Unpacking and Inspection

Carefully remove the hedge trimmer and all accessories from the packaging. Inspect the contents for any damage that may have occurred during transit. If any parts are damaged or missing, do not operate the tool and contact your dealer immediately.

• Hedge Trimmer unit
• Blade guard
• User Manual

2.2 Attaching the Blade Guard

The blade guard is essential for safety during storage and transport. Ensure it is removed before operation and re-attached immediately after use.

1. To remove: Gently slide the blade guard off the cutting blade.
2. To attach: Slide the blade guard over the cutting blade until it is securely in place.

2.3 Power Connection

The Brill 540 HS is an electric corded hedge trimmer. Ensure you use an appropriate outdoor-rated extension cord if needed, and that the power supply matches the specifications listed on the tool's rating plate.

• Always use a residual current device (RCD) with a tripping current of not more than 30 mA.
• Ensure the power cord is free from damage and positioned to avoid being cut by the blades.

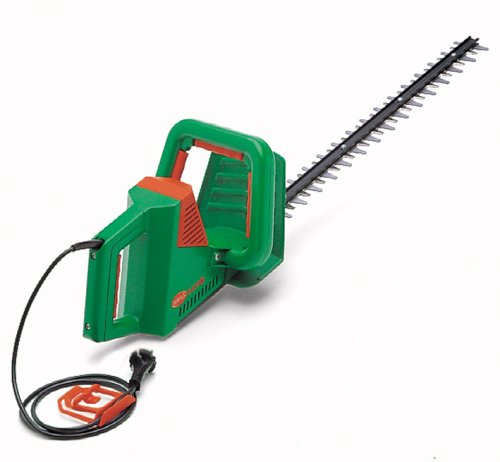

Figure 1: Brill 540 HS Electric Hedge Trimmer. This image shows the overall design of the hedge trimmer, including the handle and cutting blade with the blade guard attached.

3. Operating Instructions

3.1 Before Starting

• Ensure all safety warnings are understood and followed.
• Check the work area for hidden wires, cables, or other obstacles.
• Wear all recommended PPE.
• Ensure the blade guard is removed.

3.2 Starting and Stopping the Trimmer

The Brill 540 HS features a three-sided handle for versatile grip and operation.

1. To Start: Hold the trimmer firmly with both hands. Press and hold the safety switch (usually located on the handle) and then press the trigger switch. The blades will begin to move.
2. To Stop: Release the trigger switch. The blades will stop. Always ensure the blades have come to a complete stop before setting the trimmer down.

3.3 Cutting Techniques

• Sweeping Motion: For general trimming, use a wide, sweeping motion, moving the trimmer along the hedge.
• Top Trimming: Hold the trimmer at a slight angle (5-10 degrees) to the top of the hedge to achieve a clean, level cut.
• Side Trimming: Work from the bottom upwards, allowing the cuttings to fall away from the uncut hedge.
• Thick Branches: The trimmer can cut branches up to 25 mm. For thicker branches, make several small cuts rather than forcing the blade through.
• Avoid Overreaching: Always maintain a stable footing. Do not overreach or work from an unstable ladder.

4. Maintenance

Regular maintenance ensures the longevity and safe operation of your hedge trimmer. Always disconnect the power supply before performing any maintenance.

4.1 Cleaning the Blades

• After each use, clean the blades thoroughly to remove sap, leaves, and debris.
• Use a stiff brush or a damp cloth. Avoid using solvents that may damage plastic parts.
• For stubborn residue, a specialized blade cleaner or a small amount of oil can be used.

4.2 Blade Lubrication

To ensure smooth operation and prevent rust, lubricate the blades regularly, especially after cleaning or if the trimmer has been stored for a period.

• Apply a thin layer of machine oil or a specialized blade lubricant along the cutting edge.
• Run the trimmer briefly (with the blade guard removed and ensuring safety) to distribute the lubricant.

4.3 Storage

• Ensure the trimmer is clean and the blades are lubricated before storage.
• Always attach the blade guard before storing.
• Store the hedge trimmer in a dry, secure place, out of reach of children and away from direct sunlight or extreme temperatures.
• Coil the power cord neatly to prevent kinks or damage.

4.4 Power Cord Inspection

Regularly inspect the power cord for any signs of damage, cuts, or fraying. A damaged cord must be replaced by a qualified electrician or service center to avoid electrical hazards.

5. Troubleshooting

Before attempting any repairs, always disconnect the hedge trimmer from the power supply.

6. Specifications

7. Warranty and Support

For warranty information, technical support, or service inquiries, please contact the manufacturer or your authorized dealer. Keep your purchase receipt as proof of purchase.

Manufacturer: Brill Gloria Haus- und Gartengeräte GmbH

Please refer to the product packaging or the manufacturer's official website for the most up-to-date contact information and warranty terms.
