KitchenAid KN1PS Pouring Shield Instruction Manual

1. Introduction

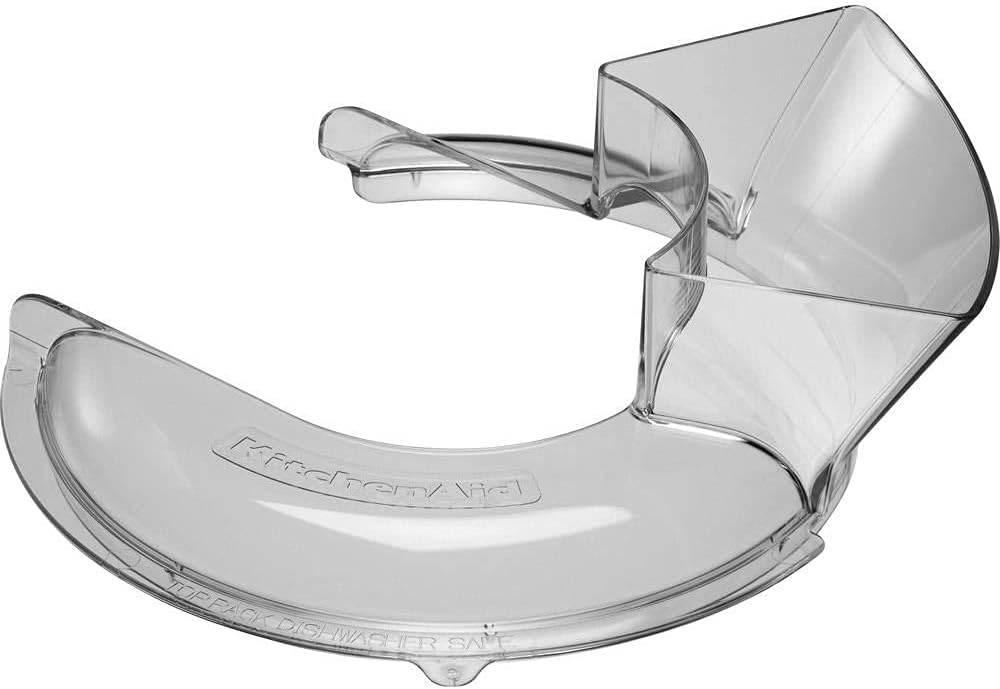

The KitchenAid KN1PS 1-Piece Pouring Shield is designed to enhance your stand mixer experience by minimizing mess and simplifying the addition of ingredients. This accessory helps keep lightweight ingredients like flour from escaping the mixing bowl and prevents splattering during operation.

2. Product Overview & Features

• Designed, engineered, and tested by KitchenAid: Ensures quality and compatibility with your KitchenAid Stand Mixer.
• Prevents Splattering: Sits securely on top of the mixing bowl to contain ingredients during mixing.
• Easy Ingredient Addition: Features an opening to facilitate adding ingredients without stopping the mixer.
• Dishwasher Safe: For convenient and easy cleaning.

3. Compatibility

The KN1PS Pouring Shield is specifically designed for KitchenAid stainless steel stand mixer bowls. It does not fit glass or ceramic bowls.

To ensure proper fit, please locate your mixer's model number on the bottom of the appliance.

Compatible Models:

• Bowl-Lift Models: K4SS, KSM450, KSM455, KSM500, K5(A), K5SS, KP50PS, KSM5, KSM50HDP, KG25H0X, KG25H3X, KG25H7X, KSM6573
• Tilt-Head Models: K45, K45SS, KN15E1X, KSM75, KSM85PS, KSM88PSQ, KSM90, KSM95, KSM96, KSM97, KSM100, KSM103, KSM105, KSM110, KSM120, KSM150, KSM152, KSM153, KSM154, KSM155, KSM180, KSM150A, KSM151PS, KSM158, KSM160A

4. Setup & Installation

Installing the KitchenAid KN1PS Pouring Shield is a straightforward process:

1. Ensure your KitchenAid Stand Mixer is turned off and unplugged.
2. Attach the desired beater or whisk to your mixer.
3. Place your stainless steel mixing bowl onto the mixer base.
4. Carefully position the KN1PS Pouring Shield over the rim of the mixing bowl, ensuring the opening aligns with the front of the mixer for easy ingredient access. The shield is designed to rest on the bowl's rim.
5. Lower the mixer head (for tilt-head models) or raise the bowl (for bowl-lift models) into the operating position.

5. Operating Instructions

Once the pouring shield is installed, you can begin mixing and adding ingredients:

1. Plug in your mixer and select the desired speed.
2. Add ingredients through the designated opening on the pouring shield. This helps prevent splashes and keeps your countertop clean.
3. For best results, add dry ingredients slowly to avoid clumping and ensure even mixing.

Demonstration Video:

6. Cleaning & Maintenance

The KitchenAid KN1PS Pouring Shield is designed for easy cleaning:

• After each use, remove the pouring shield from the mixing bowl.
• The pouring shield is dishwasher safe. Place it on the top rack of your dishwasher for cleaning.
• Alternatively, you can hand wash it with warm, soapy water and a soft cloth or sponge. Rinse thoroughly and dry completely before storing.

7. Troubleshooting

Issue: Pouring Shield does not fit or is loose.

Possible Cause: The pouring shield is designed for specific KitchenAid stainless steel bowls and may not fit all models or types (e.g., glass or ceramic bowls).

Solution: Verify your mixer's model number (found on the bottom of the mixer) against the compatibility list in Section 3. Ensure you are using a compatible stainless steel mixing bowl. The shield is designed to rest on the rim, not snap on tightly, which allows for easy removal and addition of ingredients.

Issue: Ingredients still splash out.

Possible Cause: Very high mixing speeds with thin mixtures or rapid addition of ingredients.

Solution: Reduce mixer speed when working with very liquid or fine ingredients. Add ingredients slowly and steadily through the pouring chute. While the shield significantly reduces splatter, extreme conditions may still result in minimal escape.

8. Specifications

9. Warranty & Support

For warranty information and customer support, please refer to the official KitchenAid website or contact KitchenAid customer service directly. Keep your purchase receipt for any warranty claims.

You can find more information and support resources on the official KitchenAid Store.
