1. Product Overview
The Mighty Mule FM502 is an automatic gate opener designed for heavy-duty dual swing gates. This system is suitable for gates up to 18 feet (5.5 meters) long or 850 pounds (385.5 kg) per gate leaf. It features a 12V battery backup for power failure and is solar compatible. The kit includes openers, a remote entry transmitter, mounting hardware, a 12V transformer, a control box, and installation instructions.
Key features include adjustable automatic closing (0 to 120 seconds), adjustable obstruction sensing, and a soft start/soft stop function to prolong gate and opener life. The system is designed for DIY installation and does not require welding or an electrician.

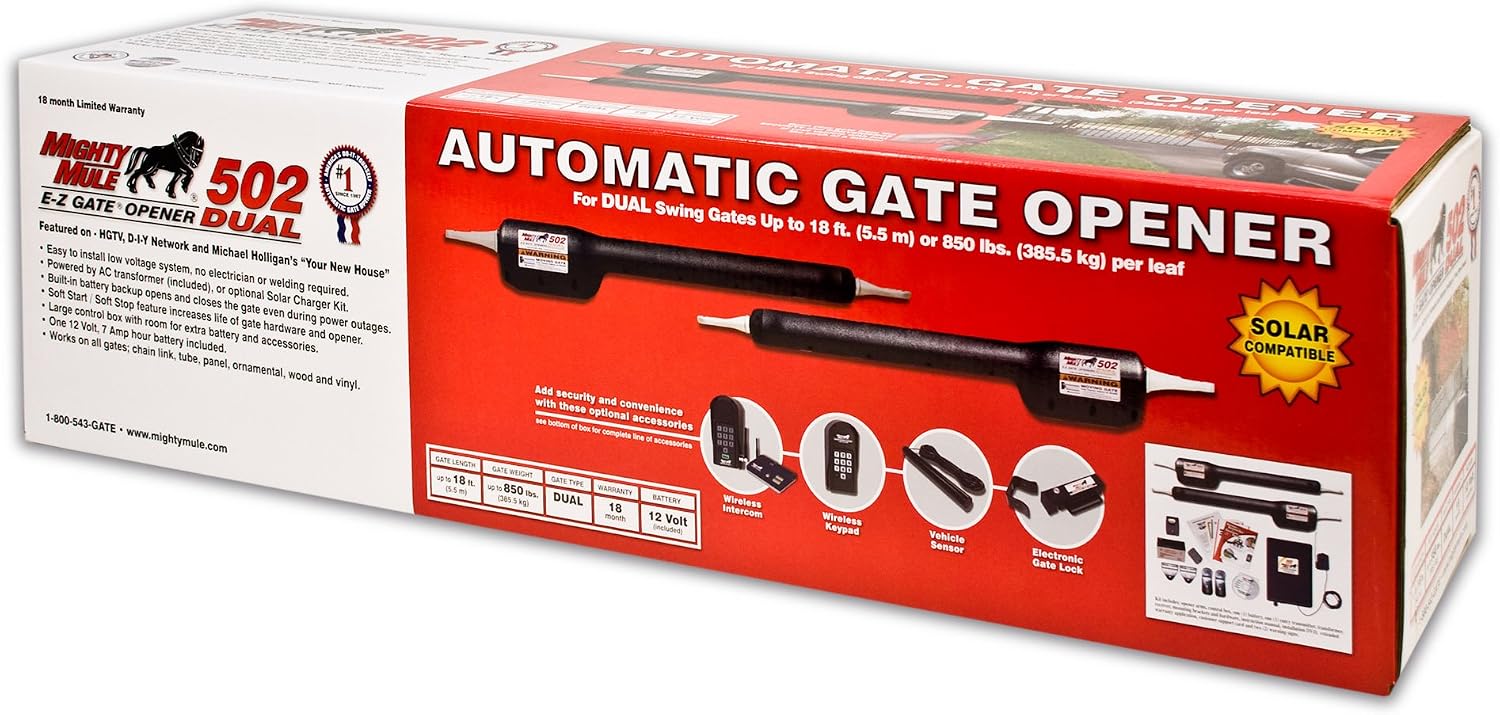

Figure 1.1: Mighty Mule FM502 Automatic Dual Swing Gate Opener packaging, showing the dual openers and key features.
2. Installation
The FM502 gate opener is designed for straightforward do-it-yourself installation. A detailed manual and an installation video are provided to guide you through the process. No welding or specialized electrical work is typically required.
2.1 Components Included
- Two gate opener arms
- Remote entry transmitter
- Mounting hardware
- 12V AC transformer
- Control box
- 12V battery
- Installation manual and DVD
Figure 2.1: Overview of the Mighty Mule FM502 kit components, including the two opener arms, control box, battery, remote, and mounting hardware.
2.2 Mounting and Wiring
Ensure the gate swings evenly and is freely hung and plumb before installation. The system uses bolt-on mounting hardware. The control box should be mounted in a suitable location, and power cables routed as per the diagram. A 120-volt indoor transformer is included for charging the battery. An optional solar panel (FM123) can be used for charging.
Figure 2.2: Installation diagram illustrating the placement of the control box, receiver, gate openers, and wiring connections for a dual swing gate setup.

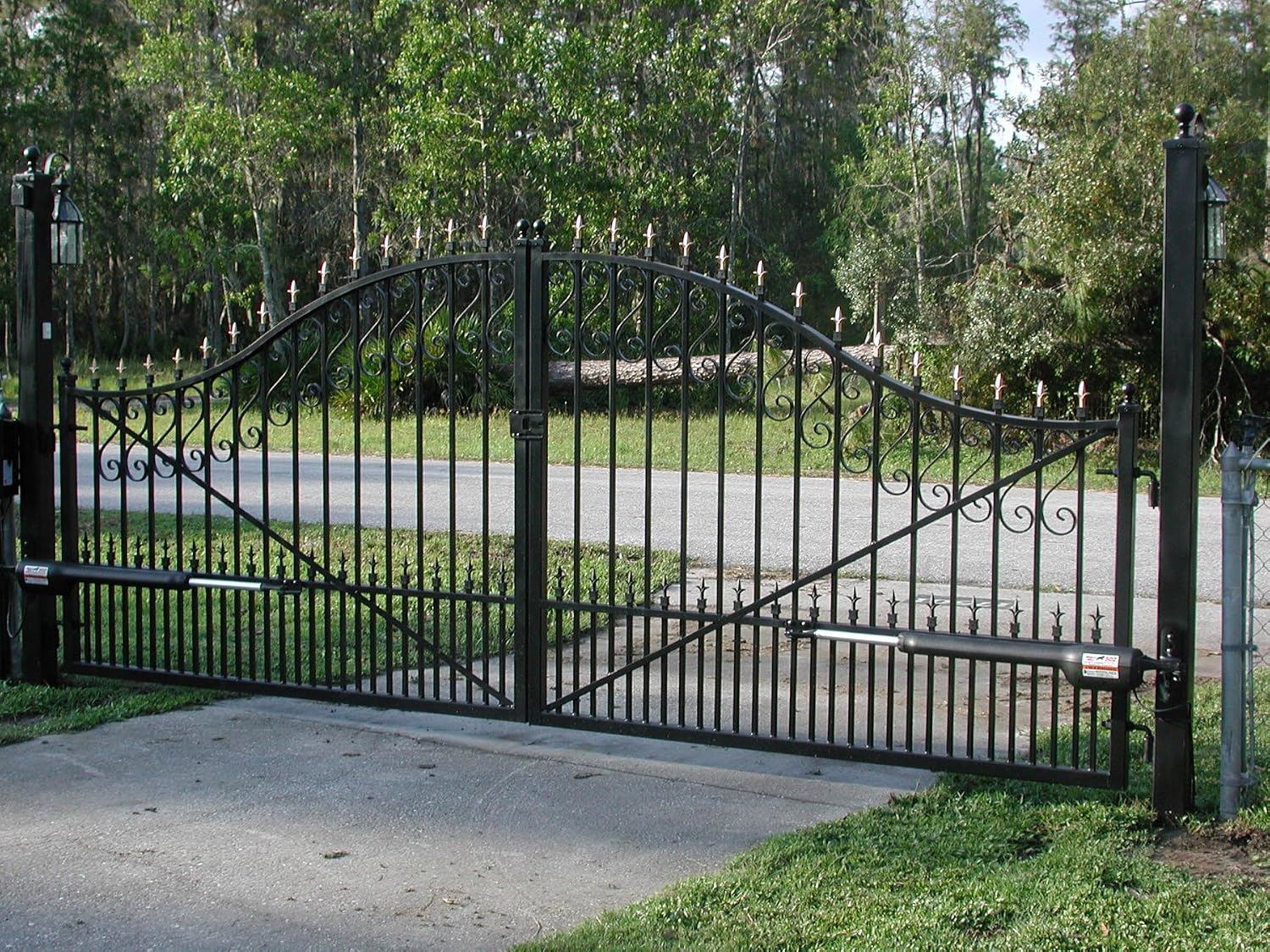

Figure 2.3: A dual swing gate with the Mighty Mule FM502 openers installed, shown in the closed position.
3. Operation
The FM502 system allows for convenient gate operation using the included remote entry transmitter. The system is powered by a 12-volt DC low-voltage system, with a battery backup to ensure functionality during power outages.
3.1 Opening and Closing
- Press the button on the remote transmitter to activate the gate opener.
- The gate will perform a soft start, open, and then soft stop.
- The adjustable auto-close feature can be set to automatically close the gate after a period of 0 to 120 seconds.
Figure 3.1: A dual swing gate with the Mighty Mule FM502 openers, shown in the open position as a vehicle enters.
3.2 Safety Features
- Obstruction Sensing: The system includes UL-approved obstruction sensing. If the gate encounters an obstruction during operation, it will stop or reverse to prevent damage or injury.
- Soft Start/Soft Stop: This feature reduces wear and tear on the gate and opener components by gradually increasing and decreasing speed at the beginning and end of each cycle.
- Battery Backup: The 12V battery ensures the gate remains operational during power failures.
Figure 3.2: A dual swing gate with the Mighty Mule FM502 openers, shown in the open position as a vehicle exits.
4. Maintenance
Regular inspection and basic maintenance will ensure the longevity and reliable operation of your Mighty Mule FM502 gate opener.
- Gate Condition: Periodically check that the gate swings freely and is not binding. Lubricate hinges if necessary.
- Mounting Hardware: Inspect all mounting hardware for tightness and signs of wear. Tighten any loose bolts.
- Battery: The 12V battery is continuously charged by the AC transformer or optional solar panel. Ensure the charging system is functioning correctly. For dual applications or solar setups, a second battery is recommended for optimal performance.
- Obstruction Sensors: Keep the area around the gate path clear of debris to ensure obstruction sensors function properly.
- Wiring: Check all wiring connections for corrosion or damage.
5. Troubleshooting
If your Mighty Mule FM502 gate opener is not functioning as expected, review the following common issues and solutions. For more detailed guidance, refer to the comprehensive troubleshooting guide provided with your product or contact customer support.
- Gate Not Opening/Closing:
- Check power supply to the control box and ensure the battery is charged.
- Verify that the remote transmitter has fresh batteries and is properly programmed.
- Inspect for physical obstructions in the gate's path. - Gate Stops Mid-Cycle:
- This may indicate an obstruction. Clear the gate path and test again.
- Check obstruction sensor settings; they might be too sensitive. - Unusual Noises:
- Inspect gate hinges and opener arms for binding or wear. Lubricate as needed.
- Ensure all mounting hardware is secure. - Gate Opens/Closes Partially:
- Check for low battery voltage. Ensure the charging system is working.
- Verify that the gate is not binding or encountering resistance.
6. Specifications
| Model Number | FM502 |
| Gate Capacity (Length) | Up to 18 ft (5.5 m) per leaf |
| Gate Capacity (Weight) | Up to 850 lbs (385.5 kg) per leaf |
| Power Source | 12V DC (corded-electric transformer, battery backup, solar compatible) |
| Voltage | 12 Volts |
| Item Weight | 52 pounds (23.6 kg) |
| Product Dimensions | 15 x 46 x 15 inches (38.1 x 116.8 x 38.1 cm) |
| Batteries Included | Yes (12V battery) |
| Automatic Close | Adjustable (0-120 seconds) |
| Obstruction Sensing | UL Approved |
7. Warranty and Support
7.1 Warranty Information
The Mighty Mule FM502 Automatic Dual Swing Gate Opener comes with a Limited 18 Month Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
7.2 Technical Support
For technical assistance, troubleshooting, or warranty claims, please contact Mighty Mule customer support. Access to a 24/7 troubleshooting guide is also available to assist with common issues.
8. Optional Accessories
Enhance the functionality and convenience of your FM502 gate opener with various Mighty Mule accessories. These are sold separately.
- Solar Panel (FM121/FM123): For charging the battery using solar power.
- Wireless Intercom/Keypad (FM136): For secure entry and communication.
- Digital Keypad (FM137): For keyless entry.
- Driveway Vehicle Sensor (FM130/FM138): Automatically opens the gate for exiting vehicles.
- Automatic Gate Lock (FM143): Provides additional security.
- Push-to-Open Brackets (FM148): Required for gates opening away from the property.
Figure 8.1: Various Mighty Mule accessories compatible with the FM502 gate opener, including keypads, sensors, and solar panels.
