Product Overview
The Sylvania 20668 DULUX 18W compact fluorescent lamp is designed for general lighting applications. It features a 4-pin base and integral End-of-Life (EOL) indicator, making it suitable for use with electronic and dimming ballasts. This lamp provides a 4100K color temperature, which is a cool white light, and has a Color Rendering Index (CRI) of 82, ensuring good color perception. It is an ECOLOGIC product, indicating environmental considerations in its design.
Key Features
- Energy Consumption: 18 Watts
- Brightness: 1150 Lumens
- Color Temperature: 4100 Kelvin (Cool White)
- Rated Lifespan: 12,000 Hours
- Base Type: 4-pin (GU24)
- CRI: 82
- Voltage: 120 Volts
Setup and Installation
This compact fluorescent lamp is designed for indoor use with compatible fixtures. Ensure the power to the fixture is turned off at the circuit breaker before installation to prevent electrical shock.
- Power Off: Locate the circuit breaker controlling the light fixture and switch it to the OFF position. Verify power is off by attempting to turn on the light switch.
- Remove Old Lamp (if applicable): If replacing an existing lamp, allow it to cool completely before handling. Gently twist and pull the old lamp from its base. Dispose of old fluorescent lamps according to local regulations, as they contain small amounts of mercury.
- Insert New Lamp: Align the 4 pins of the Sylvania 20668 lamp with the corresponding slots in the fixture's base. Gently push the lamp into the base until it is securely seated. Do not force the lamp, as this may damage the pins or the fixture.
- Restore Power: Once the lamp is securely installed, return to the circuit breaker and switch the power back ON.
- Test: Turn on the light switch to confirm proper operation.
Important: This lamp requires an electronic or dimming ballast for proper operation. Using it with an incompatible ballast may result in flickering, reduced lifespan, or failure.
Operating Instructions
The Sylvania 20668 compact fluorescent lamp operates like a standard light bulb once installed. It is controlled by the light switch connected to its fixture.
- Turning On/Off: Use the wall switch to turn the light on or off.
- Warm-up Time: Compact fluorescent lamps may require a short warm-up period (typically a few seconds) to reach full brightness, especially in colder environments.
- Dimming: If connected to a compatible dimming ballast and dimmer switch, the light output can be adjusted. Ensure the dimmer is specifically designed for CFLs or electronic ballasts.
Maintenance
Compact fluorescent lamps generally require minimal maintenance. Follow these guidelines to ensure optimal performance and longevity:
- Cleaning: Ensure the lamp is cool and the power is off before cleaning. Wipe the lamp gently with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Replacement: Replace the lamp when it reaches the end of its rated lifespan, or if it begins to flicker excessively, fails to illuminate, or shows signs of damage.
- Disposal: Due to the small amount of mercury contained in fluorescent lamps, proper disposal is crucial. Do not dispose of these lamps in regular household trash. Contact your local waste management facility or recycling center for information on proper disposal and recycling programs in your area.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up. |
|
|
| Lamp flickers or cycles on/off. |
|
|
| Reduced brightness. |
|
|
Product Specifications
| Attribute | Value |
|---|---|
| Brand | LEDVANCE |
| Model Name | 20668 |
| Light Type | CFL (Compact Fluorescent Light) |
| Wattage | 18 watts |
| Brightness | 1150 Lumens |
| Color Temperature | 4100 Kelvin (Cool White) |
| Color Rendering Index (CRI) | 82 |
| Bulb Shape Size | T4 |
| Bulb Base | GU24 (4-pin) |
| Voltage | 120 Volts |
| Rated Lifespan | 12,000 Hours |

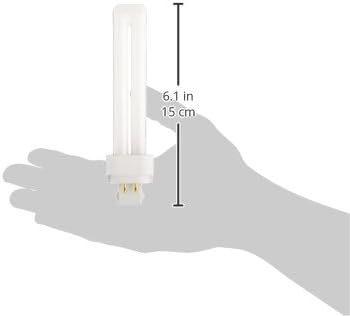

| Product Dimensions | 1.4 x 1.4 x 5.8 inches |
| Item Weight | 1.44 ounces |
| Indoor/Outdoor Usage | Indoor |
| Material | Glass |
Product Images
Warranty Information
The product's warranty description is listed as "N/a" in the provided specifications. For specific warranty details or claims, please refer to the manufacturer's official website or contact their customer support directly. It is recommended to retain your purchase receipt as proof of purchase.
Support and Contact
For further assistance, technical support, or inquiries regarding the Sylvania 20668 Compact Fluorescent Lamp, please contact LEDVANCE customer service. You can typically find contact information, including phone numbers and email addresses, on the official LEDVANCE website or through the retailer where the product was purchased.
Online Resources:
- Visit the official LEDVANCE website for product information and FAQs.
- Check for updated manuals or troubleshooting guides online.
