Important Safety Information
Please read and understand this entire instruction manual before attempting to assemble, operate, or install the product. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.
- Electrical Requirements: This heater requires a 240 Volt, 20 Amp dedicated circuit. Ensure your electrical system can support these requirements. Consult a qualified electrician for installation if unsure.
- Placement: Do not locate the heater against walls or behind drapes or furniture. Keep electrical cords, drapery, furnishings, and other combustibles at least 3 feet (0.9 m) from the front of the heater and away from the side and rear.
- Indoor Use Only: This heater is designed for indoor use in garages and workshops. Do not use as a residential or household heater.
- Overheat Protection: The heater includes an automatic overheat protection feature to ensure safe operation. If the heater overheats, it will automatically shut off.
- Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Product Overview
The Dimplex DGWH4031 is a heavy-duty electric heater designed for garages and workshops. It features a durable stainless steel heating element, a high-performance motor, and a flexible mounting bracket for versatile installation.
Figure 1: Dimplex DGWH4031 Electric Heater, front view.
Figure 2: Close-up view of the heating element and fan behind the protective grille.
Setup and Installation
The heater comes with a flexible mounting bracket that allows for ceiling or wall-mounting. It also features swivel and pivot capabilities to direct heat where needed.
- Choose Location: Select a mounting location on a wall or ceiling that provides adequate clearance from combustible materials (minimum 3 feet from front, sides, and rear).
- Mounting Bracket: Securely attach the provided mounting bracket to a sturdy structural support (e.g., ceiling joist or wall stud) using appropriate hardware (not included).
- Attach Heater: Mount the heater unit to the bracket, ensuring it is securely fastened and can be adjusted to the desired angle.
- Electrical Connection: Connect the heater to a dedicated 240 Volt, 20 Amp circuit. The heater is equipped with a 240V (20 amp) plug. Ensure the receptacle matches the plug type.
Figure 3: Side view showing the adjustable mounting bracket.
Figure 4: The 240V, 20 Amp plug required for operation.
Figure 5: Example of the heater mounted in a workshop environment.
Operating Instructions
The heater is equipped with a thermostat control and a fan delay feature for efficient heating.
- Power On: Ensure the heater is securely plugged into the appropriate 240V, 20A outlet.
- Set Thermostat: Use the thermostat dial on the unit to set the desired temperature. Turn the dial clockwise to increase the heat setting. The heater will cycle on and off to maintain the set temperature.
- Fan Delay: The fan delay feature allows the fan to continue running for a short period after the heating element shuts off. This utilizes residual heat and helps distribute warmth more evenly.
- Overheat Protection: In case of overheating, the heater will automatically shut off. If this occurs, turn off the heater, unplug it, and allow it to cool down before restarting. Inspect for any obstructions to airflow.

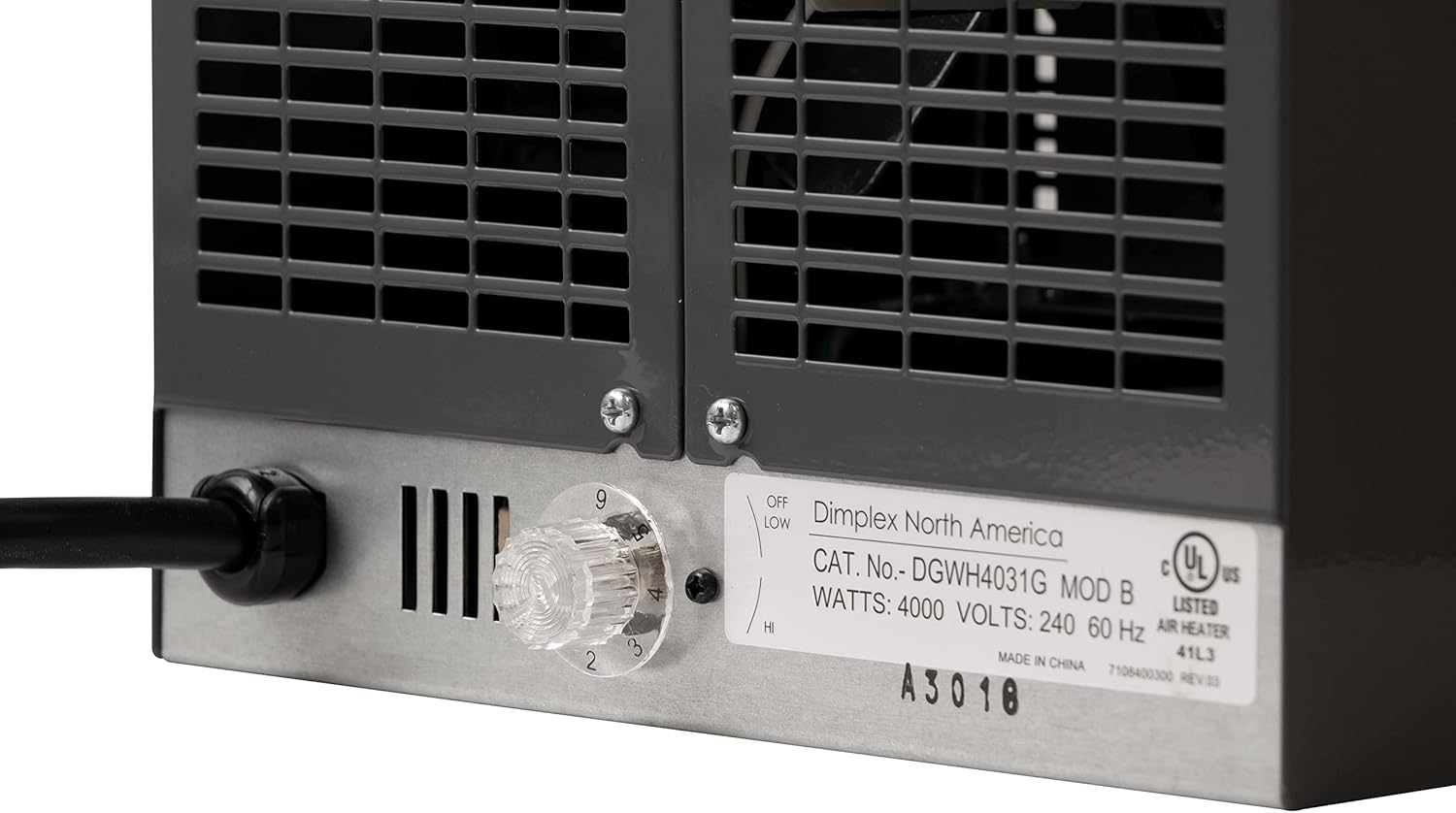

Figure 6: Close-up of the thermostat control dial and power indicator lights.
Maintenance
Regular maintenance ensures optimal performance and longevity of your heater.
- Cleaning: Periodically clean the exterior of the heater with a soft, damp cloth. Ensure the heater is unplugged and completely cool before cleaning.
- Airflow: Keep the air intake and exhaust grilles free from dust and debris to ensure proper airflow.
- Inspection: Regularly inspect the power cord and plug for any signs of damage. If damaged, discontinue use and contact a qualified technician.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not turn on. | No power, thermostat set too low, or overheat protection activated. | Check power connection and circuit breaker. Increase thermostat setting. Allow unit to cool if overheat protection is active. |
| Heater produces insufficient heat. | Thermostat set too low, or room size exceeds heating capacity. | Increase thermostat setting. Ensure the heater is appropriate for the room size. |
| Unusual noise during operation. | Loose components or fan obstruction. | Turn off and unplug the heater. Inspect for any loose parts or obstructions and remove them carefully. |
Specifications
- Brand: DIMPLEX
- Model Number: DGWH4031
- Special Feature: Space Heater
- Color: Gray/Black
- Form Factor: Mounted
- Indoor/Outdoor Usage: Indoor
- Product Dimensions: 7.25"D x 9"W x 11"H
- Recommended Uses For Product: Garage, Home
- Mounting Type: Ceiling, Wall
- Heating Coverage: 1365 square feet
- Burner type: Radiant
- Fuel Type: Electric
- Voltage: 240 Volts
- Amperage: 20 Amps
- Item Weight: 12.1 pounds
- Manufacturer: Dimplex
Figure 7: Product dimensions for installation planning.
Official Product Video
Video 1: An overview of the DIMPLEX Garage and Shop 4000 Watt Heater, highlighting its features and benefits for workshop use.
Warranty and Support
For warranty information, technical support, or to purchase replacement parts, please refer to the contact details provided in the product packaging or visit the official Dimplex website. Keep your purchase receipt as proof of purchase.
