Introduction
This manual provides instructions for the proper installation, operation, and maintenance of the Kato 7-601 Coupler set. These couplers are designed for HO-gauge model railroad applications.

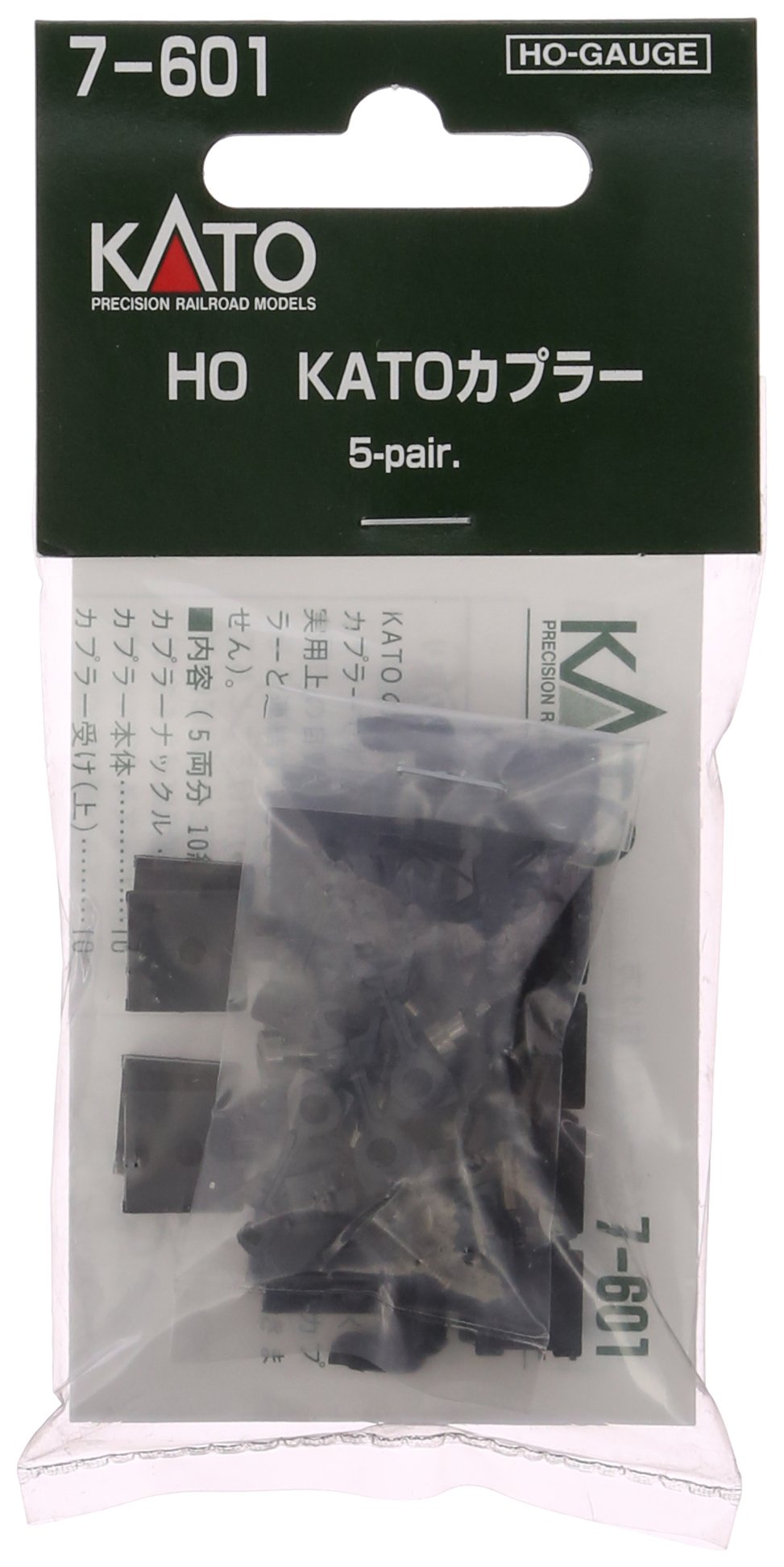

Image: A set of ten Kato 7-601 couplers, typically used for connecting model train cars. The couplers are small, dark-colored plastic components with a hook-and-loop mechanism.
Safety Information
Please read all safety information before handling and installing the couplers. This product contains small parts and is not suitable for children under 14 years of age. Adult supervision is recommended during installation.
- Keep out of reach of small children to prevent choking hazards.
- Handle with care to avoid damage to the delicate parts.
Package Contents
The Kato 7-601 Coupler set includes:
- 10 x Kato 7-601 Couplers
Setup and Installation
These couplers are designed for HO-gauge model railroad rolling stock. Installation methods may vary slightly depending on the specific model of train car. Refer to your rolling stock's manual for specific coupler pocket designs.
- Identify Coupler Pocket: Locate the coupler pocket on your model train car. This is typically at the end of the car's underframe.
- Remove Old Coupler (if applicable): If replacing an existing coupler, carefully remove it. This may involve unscrewing a small screw or gently prying open a clip.
- Insert New Coupler: Place the Kato 7-601 coupler into the coupler pocket. Ensure it sits flush and is oriented correctly. The hook mechanism should face outwards.
- Secure Coupler: Secure the coupler using the existing screw or clip mechanism of your model car. Do not overtighten screws, as this can damage the coupler or car body.
- Test Movement: Gently move the coupler side-to-side to ensure it pivots freely within the pocket.
Note: Some model cars may require minor modifications to the coupler pocket for optimal fit. If you encounter difficulty, consult model railroading forums or a local hobby shop for guidance.
Operating the Couplers
Kato couplers are designed for reliable connection and disconnection of HO-gauge model train cars.
- Connecting Cars: Gently push two cars together until the couplers interlock. You should hear a soft click or feel them engage.
- Disconnecting Cars: To uncouple cars, lift one car slightly while pulling it away from the other. Alternatively, specialized uncoupling tools or magnets placed under the track can be used for hands-free operation.
- Operation on Curves: Ensure couplers have sufficient swing to navigate curves without binding. If cars derail on curves, check coupler installation and ensure the coupler pocket allows for adequate lateral movement.
Maintenance
Proper maintenance ensures the longevity and smooth operation of your Kato couplers.
- Cleaning: Periodically inspect couplers for dust, debris, or paint accumulation. Use a soft brush or cotton swab to gently clean the coupler mechanism. Avoid harsh chemicals.
- Lubrication: Generally, these plastic couplers do not require lubrication. If movement feels stiff, ensure no debris is present. Do not apply oil or grease, as this can attract dust.
- Inspection: Regularly check for signs of wear, cracks, or damage. Replace any damaged couplers promptly to prevent operational issues.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Couplers do not connect reliably. | Misalignment, debris in mechanism, worn coupler. | Check alignment, clean coupler, replace if worn. |
| Cars uncouple unexpectedly. | Coupler height mismatch, track irregularities, excessive slack. | Verify coupler height (use an HO-gauge coupler height gauge), inspect track, ensure proper installation. |
| Couplers bind on curves. | Insufficient lateral swing, obstruction in coupler pocket. | Ensure coupler pivots freely, check for obstructions, consider minor trimming of coupler pocket if necessary. |
Specifications
- Model Number: 7-601
- Gauge: HO-Gauge
- Quantity: 10 pieces per pack
- Product Dimensions: 3.11 x 2.44 x 0.79 inches (packaging)
- Item Weight: 0.64 ounces (packaging)
- Manufacturer: Kato
Warranty Information
Specific warranty details for the Kato 7-601 Coupler are not provided in this manual. Please refer to the official Kato website or contact your retailer for current warranty terms and conditions.
Customer Support
For further assistance or inquiries regarding the Kato 7-601 Coupler, please visit the official Kato website or contact their customer service department. Contact information may vary by region.
Official Kato Website: www.katomodels.com
