OTC 7361 Fuel Line Disconnect Tool Set Instruction Manual

1. Introduction

The OTC 7361 Fuel Line Disconnect Tool Set is designed for safely and efficiently disconnecting quick-connect fuel lines. This set includes two specialized tools: one for 5/16 inch fuel lines and another for 3/8 inch fuel lines. These tools facilitate the separation of fuel lines without causing damage to the connectors, which is crucial for vehicle maintenance and repair tasks involving the fuel system.

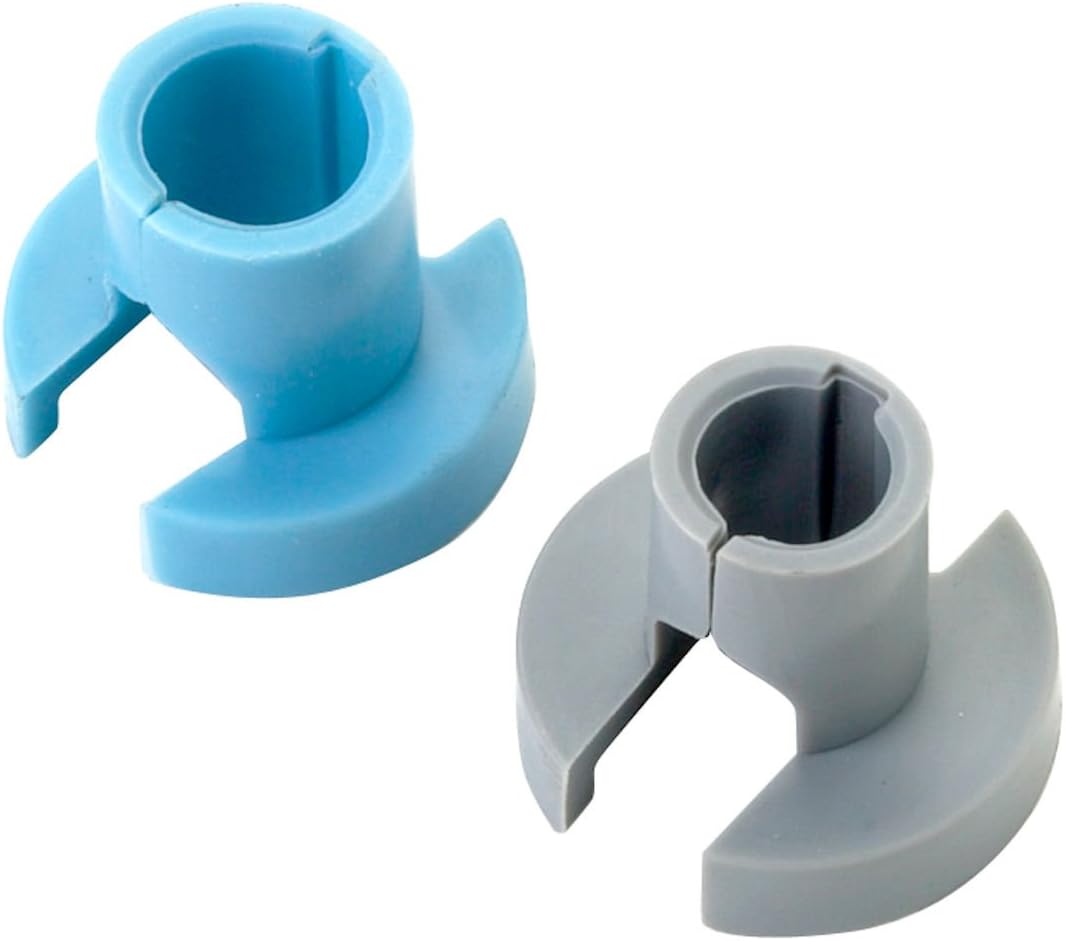

This image displays the two tools included in the OTC 7361 set: a gray tool for 5/16 inch fuel lines and a blue tool for 3/8 inch fuel lines. Both tools are designed for quick-connect fuel line separation.

2. Safety Information

Always prioritize safety when working with automotive systems, especially fuel lines. Fuel is highly flammable and can cause serious injury or fire if not handled properly.

• Ensure the vehicle's engine is cool and the fuel system is depressurized before attempting any work on fuel lines. Consult your vehicle's service manual for specific depressurization procedures.
• Work in a well-ventilated area, away from open flames, sparks, or other ignition sources.
• Wear appropriate personal protective equipment, including safety glasses and chemical-resistant gloves.
• Have a fire extinguisher readily available.
• Do not force the tools. If a connection is difficult to separate, re-evaluate the procedure or consult a professional.
• Keep tools clean and free of fuel residue after use.

3. Package Contents

The OTC 7361 Fuel Line Disconnect Tool Set includes the following items:

• One (1) 5/16 inch Fuel Line Disconnect Tool (Gray)
• One (1) 3/8 inch Fuel Line Disconnect Tool (Blue)

4. Setup

No assembly is required for these tools. Before use, identify the correct tool size for the fuel line you intend to disconnect:

• The gray tool is for 5/16 inch fuel lines.
• The blue tool is for 3/8 inch fuel lines.

Ensure the tools are clean and free from debris before inserting them into the fuel line connectors.

5. Operating Instructions

Follow these steps to safely disconnect quick-connect fuel lines using the OTC 7361 tools:

1. Prepare the Vehicle: Ensure the vehicle's fuel system is depressurized according to the manufacturer's service manual. This typically involves removing the fuel pump fuse or relay and running the engine until it stalls, or using a specialized fuel pressure release tool.
2. Identify Line Size: Determine the size of the fuel line you need to disconnect. Select the corresponding tool (gray for 5/16 inch, blue for 3/8 inch).
3. Position the Tool: Slide the appropriate disconnect tool over the fuel line and push it into the quick-connect fitting. The tool should slide in smoothly until it bottoms out against the fitting.
4. Engage the Retaining Clips: As the tool is pushed in, it will spread the internal retaining clips of the quick-connect fitting. This action releases the grip on the fuel line.
5. Separate the Line: While holding the disconnect tool firmly in place, gently pull the fuel line and the fitting apart. The line should separate with minimal effort. Do not twist or apply excessive force, as this can damage the line or fitting.
6. Inspect Components: After separation, inspect both the fuel line and the fitting for any damage, wear, or missing O-rings. Replace any damaged components before reassembly.
7. Remove the Tool: Once the fuel line is disconnected, remove the tool from the fitting.

Note: Reassembly typically involves pushing the fuel line back into the fitting until a click is heard, indicating the retaining clips have re-engaged. Always verify a secure connection by gently pulling on the line.

6. Maintenance

Proper maintenance ensures the longevity and effectiveness of your OTC 7361 tools:

• Cleaning: After each use, wipe the tools clean with a rag to remove any fuel, oil, or dirt residue. Avoid using harsh solvents that could degrade the plastic material.
• Storage: Store the tools in a clean, dry place, away from direct sunlight and extreme temperatures. Keeping them in their original packaging or a dedicated tool organizer can prevent loss and damage.
• Inspection: Periodically inspect the tools for any signs of wear, cracks, or deformation. If a tool appears damaged, replace it to prevent potential issues during use.

7. Troubleshooting

If you encounter difficulties while using the fuel line disconnect tools, consider the following:

• Tool Not Engaging: Ensure you are using the correct size tool for the fuel line. The tool must slide fully into the quick-connect fitting to properly disengage the retaining clips.
• Difficulty Separating Line: Verify that the fuel system is fully depressurized. Residual pressure can make disconnection difficult. Ensure the tool is fully seated. Sometimes, a slight wiggling motion while pulling can help.
• Tool Damage: If the tool appears bent, cracked, or otherwise damaged, it may not function correctly. Replace damaged tools immediately.
• Stuck Fitting: If the fitting is corroded or excessively dirty, it may be difficult to disconnect. Cleaning the area around the fitting with a suitable cleaner may help.

8. Specifications

9. Warranty and Support

For specific warranty information regarding your OTC 7361 Fuel Line Disconnect Tool Set, please refer to the documentation provided with your purchase or visit the official OTC website. OTC products are generally backed by a manufacturer's warranty against defects in materials and workmanship.

If you require technical assistance, have questions about product usage, or need to inquire about warranty service, please contact OTC customer support through their official channels. Contact information can typically be found on the OTC website or product packaging.
