Quantum QZA2100D Mono QZA Amplifier User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Quantum QZA2100D Mono QZA Amplifier. Please read this manual thoroughly before attempting to install or operate the amplifier to ensure proper use and to prevent damage.

1.1 Safety Instructions

Always disconnect the vehicle's battery negative terminal before starting any installation.
Ensure all wiring is properly routed and secured to prevent pinching or damage.
Use appropriate gauge wiring for power and ground connections as specified.
Avoid installing the amplifier in locations exposed to direct sunlight, excessive heat, moisture, or dust.
Consult a professional installer if you are unsure about any part of the installation process.

2. Package Contents

Verify that all items are present in the package:

Quantum QZA2100D Mono QZA Amplifier
User Manual (this document)
Mounting Hardware (screws)
Remote Bass Control (if applicable, not explicitly mentioned but common)

3. Key Features

The Quantum QZA2100D amplifier incorporates advanced technology for superior performance:

Class AB Circuitry: Provides a balance of efficiency and sound quality.
QSINK Heat Management System: Designed for efficient heat dissipation, ensuring stable operation.
1 Ohm Stable Operation: Allows for flexible speaker configurations, supporting a 1 Ohm load.
MOSFET Power Supply: Delivers stable and efficient power to the amplifier.
Variable Input Level Control: For precise matching with various head unit output levels.

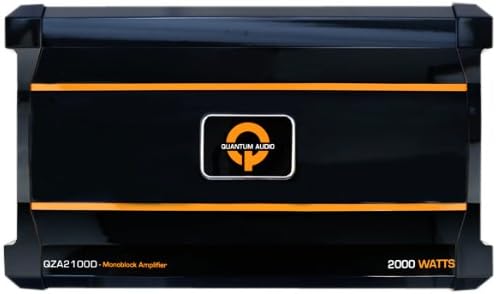

Figure 3.1: Front view of the Quantum QZA2100D Mono QZA Amplifier. This image shows the sleek black casing with orange accents and the Quantum Audio logo. The model number QZA2100D and "2000 WATTS" are visible on the front panel.

4. Setup and Installation

Proper installation is crucial for optimal performance and safety. If you are not confident in your ability to install this product, please seek professional assistance.

4.1 Mounting Location

Choose a mounting location that is dry, well-ventilated, and protected from direct sunlight and excessive heat. Ensure there is sufficient space around the amplifier for air circulation. Avoid mounting on carpeted surfaces directly, as this can impede heat dissipation.

4.2 Wiring Connections

Refer to the diagram below for proper wiring connections. All connections should be secure and insulated to prevent short circuits.

Rear view of the Quantum QZA2100D Mono QZA Amplifier showing input/output terminals and controls

Figure 4.1: Rear view of the Quantum QZA2100D Mono QZA Amplifier. This image displays the various input and output terminals, including power, ground, remote, RCA inputs, and speaker outputs. Control knobs for gain and crossover settings are also visible.

4.2.1 Power and Ground Connections

Power (B+): Connect a heavy gauge wire (e.g., 4 AWG or larger, depending on power requirements) directly from the positive terminal of the vehicle's battery to the B+ terminal on the amplifier. Install an appropriate fuse (e.g., 60A, as indicated on the amplifier) within 18 inches of the battery.
Ground (GND): Connect a heavy gauge wire of the same size as the power wire from the GND terminal on the amplifier to a clean, unpainted metal surface of the vehicle chassis. Ensure a good electrical connection.
Remote (REM): Connect a smaller gauge wire (e.g., 18 AWG) from the remote output of your head unit to the REM terminal on the amplifier. This wire turns the amplifier on and off with your head unit.

4.2.2 Audio Input Connections

Connect RCA cables from the pre-amp outputs of your head unit to the RCA input jacks on the amplifier. Ensure left and right channels are connected correctly.

4.2.3 Speaker Output Connections

Connect your subwoofer(s) to the speaker output terminals on the amplifier. Pay close attention to polarity (+ to + and - to -). This is a mono amplifier, designed for a single subwoofer or multiple subwoofers wired to a single channel. Ensure the total impedance of your speaker configuration matches the amplifier's capabilities (e.g., 1 Ohm stable).

5. Operating Instructions

5.1 Initial Power-Up and Gain Adjustment

After all connections are made, reconnect the vehicle's battery.
Turn on your head unit. The amplifier should power on (indicated by a power LED).
Set the head unit volume to about 75% of its maximum.
Slowly increase the gain control on the amplifier (labeled "Input Level Control" or "Gain") until you hear distortion, then back it off slightly. This sets the amplifier's input sensitivity to match your head unit's output.

5.2 Crossover and Bass Boost Settings

The QZA2100D is a mono amplifier, typically used for subwoofers. It will likely have a Low Pass Filter (LPF) and potentially a Subsonic Filter and Bass Boost.

Low Pass Filter (LPF): Adjust this control to filter out high frequencies from reaching your subwoofer. A common setting for subwoofers is between 80Hz and 120Hz. Experiment to find the best blend with your main speakers.
Subsonic Filter: (If present) This filter removes extremely low frequencies that are below the audible range and can cause your subwoofer to waste power and potentially damage it. Set it slightly below your LPF setting, or around 20-30Hz.
Bass Boost: Use this control sparingly. Excessive bass boost can lead to distortion and potential damage to your subwoofer. Adjust it to enhance bass response if desired, but always listen for signs of distortion.

6. Maintenance

The Quantum QZA2100D amplifier requires minimal maintenance. Keep the amplifier clean and free of dust. Periodically check all wiring connections to ensure they are secure. Do not use harsh chemicals or abrasive cleaners on the amplifier's surface.

7. Troubleshooting

Problem	Possible Cause	Solution
No Power / Amplifier does not turn on	Blown fuse Poor power or ground connection Remote wire not connected or no signal	Check and replace fuse (battery and amplifier). Verify all power and ground connections are secure. Check remote wire connection and ensure head unit is providing a 12V signal.
No Sound Output	RCA cables disconnected or faulty Speaker wires disconnected or shorted Gain set too low Head unit volume too low	Check RCA connections and test cables. Inspect speaker wiring for shorts or disconnections. Adjust gain control (refer to Section 5.1). Increase head unit volume.
Distorted Sound	Gain set too high Speaker impedance mismatch Poor ground connection	Reduce gain control (refer to Section 5.1). Verify speaker impedance is within amplifier's specifications. Ensure ground connection is clean and secure.
Amplifier Overheats	Insufficient ventilation Speaker impedance too low Playing at high volume for extended periods	Relocate amplifier to a better-ventilated area. Check speaker impedance. Reduce volume or allow amplifier to cool down.

8. Specifications

Feature	Detail
Model Number	QZA2100D
Product Dimensions	43.97 x 26.04 x 5.72 cm
Item Weight	7.26 kg
Circuitry Type	Class AB
Power Supply	MOSFET
Minimum Stable Impedance	1 Ohm
Heat Management	QSINK Heat Management System
Input Control	Variable Input Level Control

9. Warranty and Support

Quantum products are designed and manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your product or visit the official Quantum Audio website. Keep your purchase receipt as proof of purchase.

For further assistance, please contact Quantum customer support.
