1. Introduction
This manual provides essential information for the proper setup, operation, and maintenance of your Crown D-75A D Series Power Amplifier. The D-75A is a robust and reliable power amplifier, widely recognized for its performance in various professional audio environments, including laboratories, touring setups, public facilities, recording studios, and home audio systems. It delivers up to 110 watts into 8 ohms of power.
2. Safety Information
Please read and understand all safety instructions before operating the amplifier. Retain this manual for future reference.
- Power Source: Connect the amplifier only to the type of power source indicated on the unit. Ensure the AC line has a standard three-wire grounded connector.
- Ventilation: Do not block any ventilation openings. Ensure adequate airflow around the unit to prevent overheating.
- Moisture: Do not expose the amplifier to rain or moisture. Do not place objects filled with liquids, such as vases, on the apparatus.
- Servicing: Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.
- Cleaning: Unplug the unit from the power outlet before cleaning. Use a dry cloth for cleaning.
3. Product Overview
The Crown D-75A D Series Power Amplifier is designed for high-fidelity audio amplification. Its AB+B class circuitry ensures maximum efficiency with minimal crossover distortion.
Key Features:
- Balanced three-pin Neutrik combination XLR and 1/4" phone jack for each channel.
- Four-terminal barrier block (two per channel) for speaker connections.
- Stereo headphone jack for monitoring.
- AC line with a standard three-wire grounded connector.
- Powerful AB+B class circuitry for efficient operation.
Front Panel Controls and Indicators:

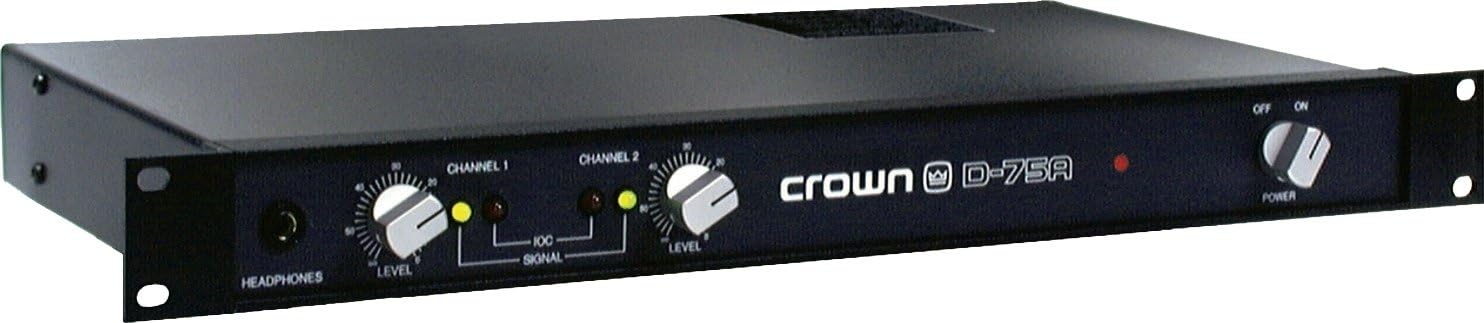

Figure 3.1: Crown D-75A Front Panel. This image displays the front panel of the Crown D-75A D Series Power Amplifier. From left to right, it features a headphone jack, a 'LEVEL' control knob for Channel 1, a 'SIGNAL' indicator light for Channel 1, a 'LEVEL' control knob for Channel 2, a 'SIGNAL' indicator light for Channel 2, the 'crown D-75A' logo, a red power indicator light, and a 'POWER' switch with 'OFF' and 'ON' positions.
4. Setup
Follow these steps to properly set up your Crown D-75A amplifier:
- Placement: Position the amplifier in a location with adequate ventilation, away from direct sunlight, heat sources, and moisture. Ensure it is placed on a stable surface.
- Input Connections: Connect your audio source (e.g., mixer, preamplifier) to the amplifier's input jacks. The D-75A features balanced three-pin Neutrik combination XLR and 1/4" phone jacks for each channel. Use appropriate cables for your source.
- Output Connections: Connect your speakers to the four-terminal barrier block outputs on the rear of the amplifier. Ensure correct polarity (+ to + and - to -) for each channel.
- Power Connection: Ensure the amplifier's power switch is in the 'OFF' position. Connect the AC power cord to a grounded electrical outlet. The amplifier requires a standard three-wire grounded connection.
- Initial Level Settings: Before powering on, set both Channel 1 and Channel 2 'LEVEL' control knobs to their minimum (fully counter-clockwise) position.
5. Operating Instructions
Once the amplifier is set up, follow these steps for operation:
- Power On: Flip the 'POWER' switch to the 'ON' position. The red power indicator light on the front panel will illuminate.
- Adjust Levels: Start playing audio from your source. Slowly turn the 'LEVEL' control knobs clockwise for Channel 1 and Channel 2 until the desired volume is achieved.
- Signal Indicators: Observe the 'SIGNAL' indicator lights for each channel. These lights illuminate when an audio signal is present. If the lights are consistently bright or clipping, reduce the input level from your source or the amplifier's level controls to prevent distortion.
- Headphone Monitoring: For private listening or monitoring, plug stereo headphones into the 'HEADPHONES' jack. The headphone output level is typically controlled by the main level controls.
- Power Off: When finished, turn the 'LEVEL' control knobs to their minimum position, then flip the 'POWER' switch to 'OFF'.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your amplifier.
- Cleaning: Periodically clean the exterior of the amplifier with a soft, dry cloth. Do not use liquid cleaners or solvents. Ensure ventilation grilles are free from dust and debris.
- Ventilation: Regularly check that the amplifier's ventilation openings are not obstructed. Proper airflow is crucial to prevent overheating.
- Connections: Occasionally inspect all input and output connections for secure fit and signs of wear. Loose connections can lead to signal loss or intermittent performance.
- Storage: If storing the amplifier for an extended period, ensure it is kept in a dry, dust-free environment within its operating temperature range.
7. Troubleshooting
This section addresses common issues you might encounter with your Crown D-75A amplifier.
| Problem | Possible Cause | Solution |
|---|---|---|
| No power, power indicator off | Power cord disconnected; no power from outlet; faulty power switch. | Check power cord connection; test outlet with another device; if problem persists, seek professional service. |
| No sound output | Input cables disconnected; speaker cables disconnected or incorrect polarity; amplifier level controls set too low; source device not playing. | Verify all cable connections; ensure speaker polarity is correct; increase amplifier level controls; check audio source. |
| Distorted sound | Input signal too high; amplifier overloaded; faulty cables or speakers. | Reduce input level from source; lower amplifier level controls; inspect cables and speakers for damage. |
| Overheating | Blocked ventilation; excessive load. | Ensure clear airflow around the unit; reduce output level or check speaker impedance. |
If these troubleshooting steps do not resolve the issue, please contact qualified service personnel.
8. Specifications
The following are the technical specifications for the Crown D-75A D Series Power Amplifier:
- Output Wattage: 110 Watts (into 8 ohms)
- Product Dimensions: 21.5 x 12.5 x 3 inches
- Item Weight: 10.9 pounds
- Model Number: GD75A
- ASIN: B0002L8XLU
- Brand: Crown
- Manufacturer: Crown Audio
- Color: Gray
- Compatible Devices: A wide range of professional audio equipment
- Date First Available: September 6, 2007
9. Warranty and Support
For warranty information and technical support, please refer to the official Crown Audio website or contact your authorized Crown dealer. Keep your purchase receipt as proof of purchase for any warranty claims.
