Märklin 74121 Catenary Feeder Mast Instruction Manual

1. Product Overview

The Märklin 74121 Catenary Feeder Mast is designed for model railway layouts in HO/OO scale. Its primary function is to supply electrical power to sections of catenary lines and for integration with signal blocks. This accessory features a durable metal lattice construction and an adjustable metal outrigger arm, which can be configured for both long and short reach. It includes a versatile base that allows for either screw-down mounting or clipping onto Märklin C Track. A plug-in connection facilitates easy assembly between the mast and its base. The package also contains a feeder wire specifically for C Track connections. The mast stands at a height of 100 mm (approximately 3-15/16 inches).

Figure 1.1: The Märklin 74121 Catenary Feeder Mast, showing its metal lattice structure and outrigger arm.

2. Safety Information

This product is intended for use by adults only. Keep out of reach of children due to small parts and electrical components. Always ensure power is disconnected from your model railway layout before installation or maintenance to prevent electrical shock.

3. Package Contents

• 1 x Märklin 74121 Catenary Feeder Mast (includes metal lattice mast, adjustable outrigger arm, base with mounting screw, additional C Track mounting bracket, and feeder wire for C Track)

4. Setup and Installation

Follow these steps to properly install your Märklin 74121 Catenary Feeder Mast:

1. Prepare the Installation Area: Ensure the section of your model railway where the mast will be installed is clean and free from obstructions. Disconnect all power to the track and catenary system.
2. Assemble the Mast: Connect the metal lattice mast to its base using the integrated plug-in connection. Ensure it is securely seated.
3. Choose Mounting Method:
   • Screw-Down Mounting: If using the screw-down method, position the base on your layout and secure it with the provided mounting screw.
   • C Track Mounting: If mounting on Märklin C Track, attach the additional C Track mounting bracket to the base, then clip the entire assembly onto the C Track.
4. Position the Outrigger Arm: Adjust the metal outrigger arm to the desired length and angle to properly support the catenary wire. The arm can be configured for both long and short reach.
5. Connect Feeder Wire: Attach the provided feeder wire from the mast's base to the designated power connection points on your C Track. Ensure a secure electrical connection.
6. Final Check: Verify that the mast is stable, the outrigger arm is correctly positioned, and all electrical connections are secure before restoring power to your layout.

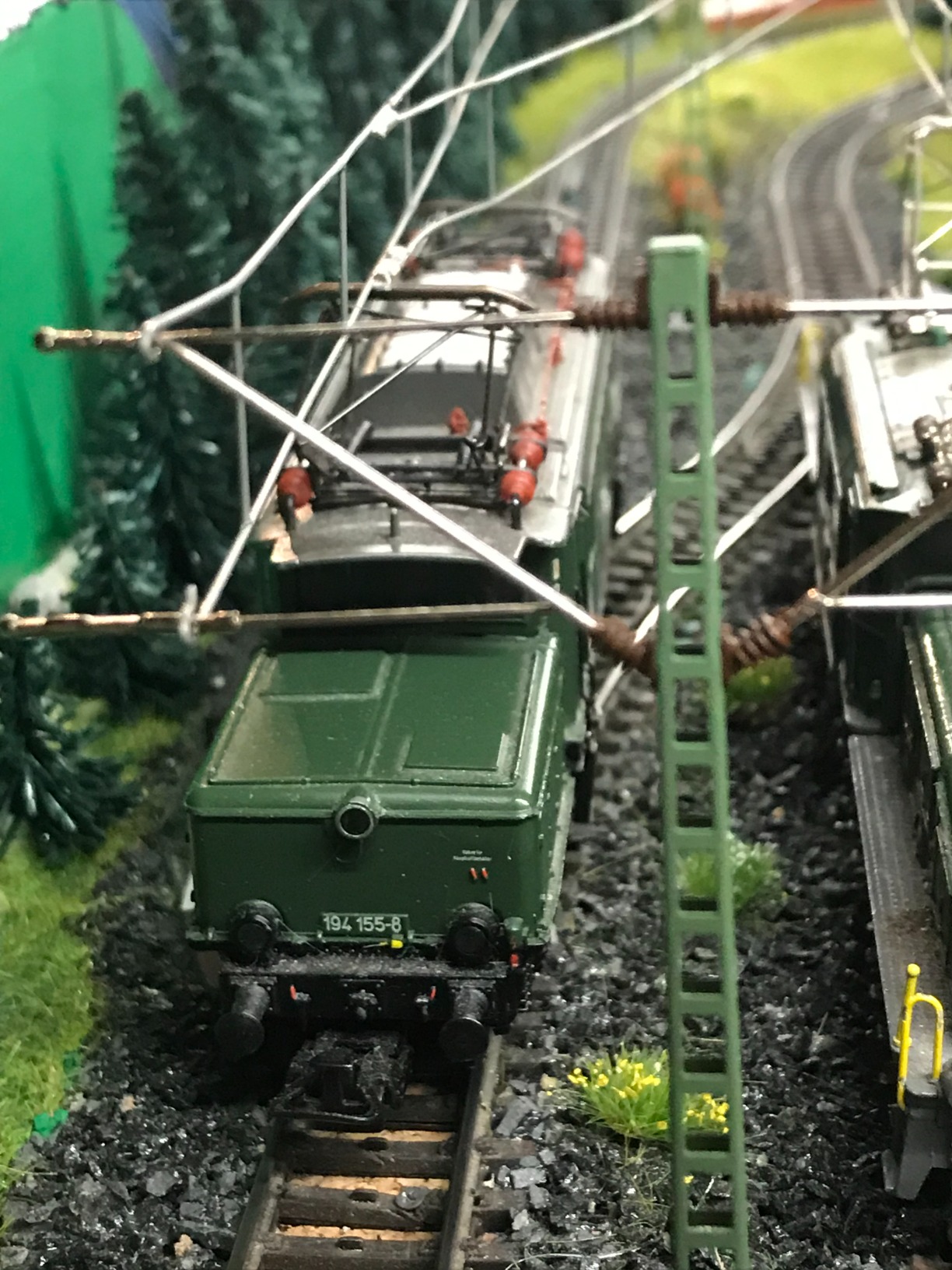

Figure 4.1: An example of the Märklin 74121 Catenary Feeder Mast installed on a model railway, demonstrating its integration with the catenary system.

5. Operation

Once installed and connected, the Märklin 74121 Catenary Feeder Mast operates by transmitting electrical power from your track system to the overhead catenary lines. This ensures that locomotives designed for catenary operation receive power directly from the overhead system. It also facilitates the integration of signal blocks by providing a controlled power feed to specific sections of the catenary, allowing for realistic signal control within your HO/OO scale layout.

6. Maintenance

The Märklin 74121 Catenary Feeder Mast requires minimal maintenance. Regular dusting with a soft, dry cloth is recommended to keep the mast clean. Periodically inspect all connections, especially the plug-in connection between the mast and base, and the feeder wire connection to the C Track, to ensure they remain secure and free from corrosion. Avoid using abrasive cleaners or solvents, as these may damage the finish or materials.

7. Troubleshooting

If you experience issues with power delivery through the catenary system after installing the feeder mast, consider the following:

• No Power to Catenary: Ensure all electrical connections, including the feeder wire to the C Track and the plug-in connection at the mast base, are firm and correctly made. Verify that power is supplied to the C Track section where the feeder mast is connected.
• Unstable Mast: Check that the mast base is securely fastened, either by screw or by clipping firmly onto the C Track.
• Catenary Wire Not Supported: Adjust the outrigger arm to ensure it properly supports the catenary wire without excessive tension or slack.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or spare parts availability for your Märklin 74121 Catenary Feeder Mast, please refer to Märklin's official website or contact their customer service department directly. Keep your purchase receipt as proof of purchase.
