Metra 70-1781 Wiring Harness Instruction Manual

Introduction

The Metra 70-1781 Wiring Harness is designed to simplify the installation of an aftermarket car stereo into compatible 1982-89 Ford, Impala, and Mazda vehicles. This harness allows for the connection of a new radio using the existing factory wiring and connectors, eliminating the need for cutting or splicing the vehicle's original wiring. It provides power and connections for up to four speakers.

This manual provides detailed instructions for the proper installation and use of your Metra 70-1781 Wiring Harness.

Figure 1: Metra 70-1781 Wiring Harness. This image displays the complete wiring harness with its various connectors and colored wires, ready for installation.

Setup and Installation

Before beginning installation, ensure the vehicle's battery is disconnected to prevent electrical shorts or damage. This harness is designed to plug directly into the car's factory harness at the radio location.

Wiring Connections

Match the wires from your new aftermarket radio to the corresponding wires on the Metra 70-1781 harness. Refer to the wiring color code diagram provided below and your aftermarket radio's instruction manual for specific wire functions. It is recommended to solder and heat-shrink all connections for a secure and reliable installation.

Figure 2: Metra/EIA Wiring Color Code. This diagram illustrates the standard color coding for wiring connections, crucial for matching the harness to an aftermarket radio. Note: Wire colors may vary slightly based on manufacturer specifications.

• Power/Ignition: Connect the red wire (12V Ignition/ACC) and yellow wire (12V Battery/Memory) from the harness to the corresponding wires on your aftermarket radio.
• Ground: Connect the black wire (Ground) from the harness to the ground wire of your aftermarket radio and to the vehicle's chassis if a separate ground is required.
• Speaker Wires: Connect the speaker wires (e.g., White/White-Black for Left Front, Gray/Gray-Black for Right Front, Green/Green-Black for Left Rear, Violet/Violet-Black for Right Rear) from the harness to the corresponding speaker outputs of your aftermarket radio. This harness supports a 4-speaker setup.
• Antenna/Amplifier Turn-On: Connect the blue wire (Power Antenna) or blue/white wire (Amp Turn-On) if your vehicle or aftermarket radio requires it.
• Illumination/Dimmer: Connect the orange wire (Illumination) or orange/white wire (Dimmer) if your aftermarket radio supports these features.

Connecting to Vehicle

Once all connections between the aftermarket radio and the Metra 70-1781 harness are complete, plug the harness connector directly into the vehicle's factory radio wiring harness. Ensure a firm and secure connection.

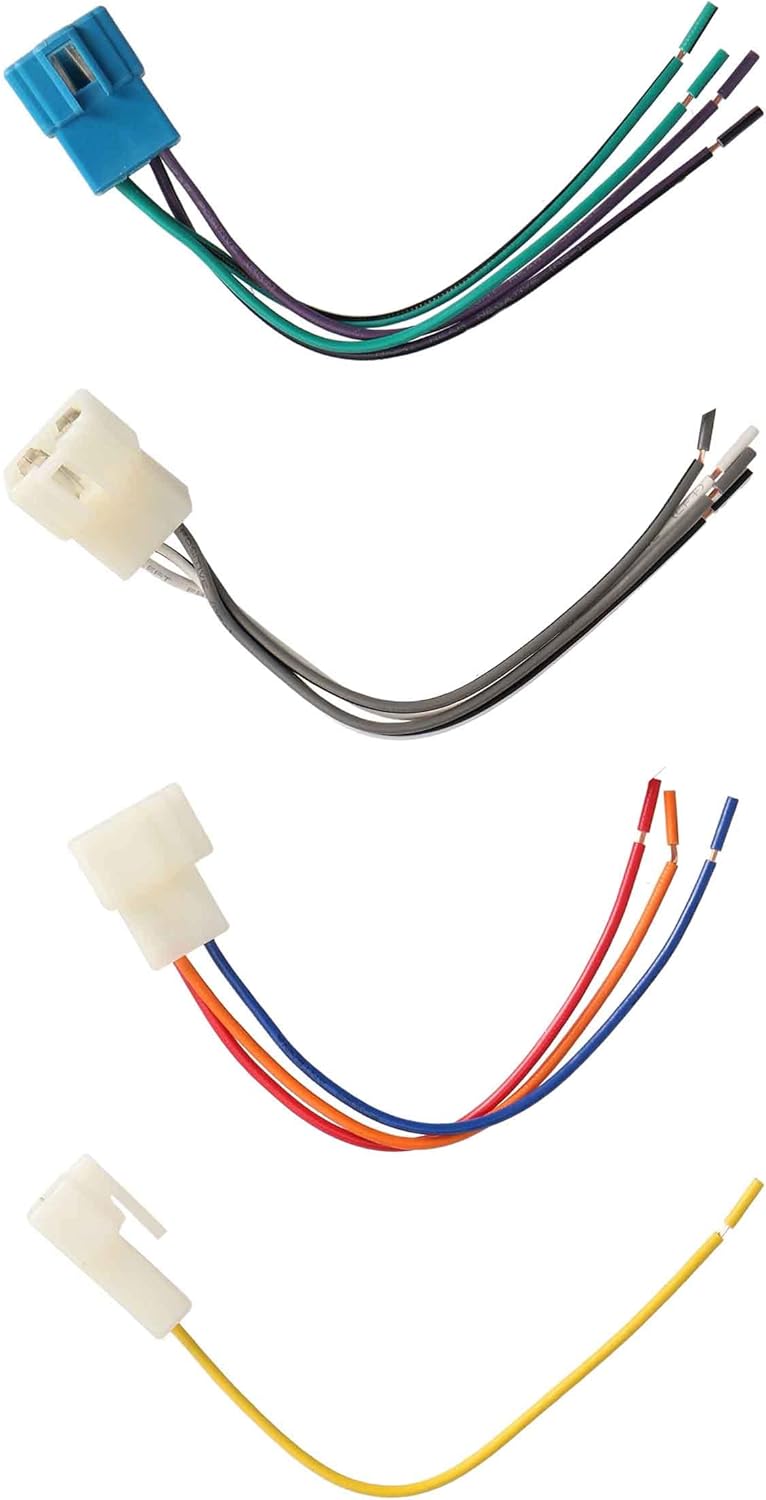

Figure 3: Close-up of Metra 70-1781 harness connectors. This image shows the various connectors of the harness, highlighting their design for direct plug-and-play with factory wiring.

Operating Instructions

The Metra 70-1781 Wiring Harness functions as an adapter, enabling your aftermarket radio to receive power and transmit audio signals through the vehicle's existing wiring. Once correctly installed, the operation of your car audio system will be controlled entirely by your aftermarket radio unit.

Ensure all connections are secure and properly insulated before reconnecting the vehicle's battery. Test the functionality of the aftermarket radio, including power, audio output from all speakers, and any other connected features (e.g., illumination, power antenna).

Maintenance

The Metra 70-1781 Wiring Harness requires no routine maintenance. Once installed, ensure that the connections remain secure and free from moisture or physical damage. Avoid pulling on the wires or connectors, as this can compromise the integrity of the electrical connections.

Troubleshooting

• No Power to Radio:
  • Check the vehicle's fuse box for any blown fuses related to the radio or accessory power.
  • Verify that the yellow (12V Battery/Memory) and red (12V Ignition/ACC) wires are correctly connected and receiving power. Use a multimeter to test for voltage.
  • Ensure the ground wire (black) is securely connected to a good chassis ground.
• No Sound from Speakers:
  • Confirm that all speaker wires (e.g., white, gray, green, violet and their striped counterparts) are correctly matched and connected to the aftermarket radio's speaker outputs.
  • Check the balance and fader settings on your aftermarket radio.
  • If your vehicle has a factory amplifier, ensure the amplifier turn-on wire (blue/white) is connected correctly.
• Intermittent Power or Sound:
  • Inspect all wire connections for looseness or poor insulation. Re-solder or re-crimp any questionable connections.
  • Ensure the harness is fully seated into the vehicle's factory connector.
• Harness Does Not Fit Vehicle Connector:
  • Double-check the compatibility list for your specific vehicle year, make, and model. While the 70-1781 is designed for 1982-89 Ford/Impala/Mazda, some specific trims or regional variations may differ.
  • Consult a professional installer if you are unsure about compatibility or connection points.

Specifications

Warranty Information

The Metra 70-1781 Wiring Harness comes with a 1 Year Limited Warranty from the manufacturer, Metra Electronics Corp. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

For specific warranty terms and conditions, please refer to the official Metra website or contact Metra customer support.

Support

For additional assistance, technical support, or inquiries regarding the Metra 70-1781 Wiring Harness, please contact Metra Electronics directly:

• Website: metraonline.com
• Helpline: (800) 253-TECH

When contacting support, please have your product model number (70-1781) and vehicle information readily available.
